High power LED systems are widely used in applications such as automotive lighting, industrial lighting, street lamps, medical illumination, and high-brightness display systems. Unlike traditional electronic components, high-power LEDs generate significant heat during operation, and effective thermal management is critical for maintaining brightness, efficiency, and service life.

The substrate material of an LED circuit board directly affects:

• Heat dissipation performance

• Electrical insulation capability

• Mechanical reliability

• Operating temperature range

• Long-term LED lifetime

Two commonly used solutions for high-power LED applications are:

• Ceramic substrate PCB

• Metal core PCB (MCPCB)

Understanding ceramic substrate vs metal core PCB for high power LED helps engineers select the most suitable thermal management solution according to performance requirements, cost targets, and application conditions.

As a professional PCB manufacturer, PCBBUY provides advanced PCB manufacturing solutions including metal core PCB, high thermal conductivity PCB materials, aluminum PCB fabrication, multilayer PCB technology, and customized PCB solutions for power electronics and LED applications.

PCB Instant Quote

Why Thermal Management Is Critical for High Power LEDs？

High-power LEDs convert electrical energy into light, but a significant portion of the energy becomes heat.

If heat is not effectively removed, it may cause:

• Reduced LED brightness

• Color shift

• Lower efficiency

• Accelerated component aging

• Shortened operating lifetime




Thermal Issue	Impact on LED System
High Junction Temperature	Reduced LED lifespan
Poor Heat Dissipation	Performance degradation
Thermal Cycling	Material stress and failure
Excessive Heat Accumulation	Reduced reliability



Therefore, selecting the appropriate PCB substrate is essential for high-power LED reliability.



What Is a Metal Core PCB (MCPCB)?

A Metal Core PCB is a PCB structure that uses a metal layer as the core material to improve thermal dissipation.

The most common metal core materials include:

• Aluminum

• Copper

• Copper-aluminum composite structures

A typical MCPCB structure consists of:

Layer	Function
Copper Circuit Layer	Electrical connection
Dielectric Insulation Layer	Electrical isolation and heat transfer
Metal Core Layer	Heat spreading and mechanical support



Advantages of Metal Core PCB for High Power LED

Metal core PCBs are widely used because they provide a balance between thermal performance and cost.

Advantage	Benefit
Excellent Heat Dissipation	Quickly transfers heat away from LEDs
Lightweight Structure	Suitable for lighting products
Cost Effective	Lower than ceramic substrates
Good Mechanical Strength	Improves product durability
Easy Manufacturing	Compatible with PCB production processes



Common applications include:

• LED bulbs

• Automotive lighting

• Industrial lamps

• Outdoor lighting systems



What Is a Ceramic Substrate PCB?

A ceramic substrate PCB uses ceramic materials as the base layer instead of traditional FR-4 or metal cores.

Common ceramic materials include:

• Aluminum oxide (Al₂O₃)

• Aluminum nitride (AlN)

• Silicon nitride (Si₃N₄)

Ceramic substrates provide excellent thermal performance and electrical insulation.



Advantages of Ceramic Substrate PCB for High Power LED

Ceramic PCBs are designed for extreme thermal and electrical requirements.

Advantage	Benefit
Extremely High Thermal Conductivity	Superior heat transfer
Excellent Electrical Insulation	Improves safety
High Temperature Resistance	Supports harsh environments
Low Thermal Expansion	Reduces mechanical stress
Chemical Stability	Long-term reliability



Typical applications include:

• High-power laser lighting

• Aerospace lighting

• Advanced automotive LEDs

• Semiconductor-based illumination systems



Ceramic Substrate vs Metal Core PCB: Key Comparison

The choice between ceramic substrate and MCPCB depends on application requirements.

Comparison Factor	Ceramic Substrate PCB	Metal Core PCB
Thermal Conductivity	Excellent	Very Good
Cost	Higher	Lower
Mechanical Strength	High but brittle	Excellent
Weight	Lightweight	Moderate
Temperature Resistance	Excellent	Good
Electrical Insulation	Excellent	Good
Manufacturing Complexity	Higher	Lower
Mass Production Cost	Higher	More economical
Typical Application	Extreme performance LED	General high-power LED



Thermal Performance Comparison

Thermal conductivity is one of the most important factors for LED PCB selection.

Material	Approximate Thermal Performance	Application Suitability
Standard FR-4	Low	Low-power LEDs
Aluminum MCPCB	Good	General high-power LEDs
Copper MCPCB	Excellent	High thermal load LEDs
AlN Ceramic PCB	Outstanding	Extreme thermal applications



When Should You Choose Metal Core PCB?

Metal core PCBs are suitable when the project requires:

1. Balanced Cost and Performance

MCPCB provides reliable thermal management without significantly increasing production cost.

2. Large-Scale LED Production

For applications such as:

• LED lighting fixtures

• Street lamps

• Commercial lighting

MCPCB offers excellent manufacturing efficiency.

3. Moderate Thermal Requirements

When operating temperatures are controlled, aluminum PCB provides sufficient heat dissipation.



When Should You Choose Ceramic Substrate PCB?

Ceramic substrates are preferred for demanding applications requiring maximum thermal performance.

Suitable applications include:

Application	Reason
High-Power LED Modules	Extreme heat control
Automotive Headlights	High temperature environment
Aerospace Lighting	Reliability requirements
Laser Systems	Thermal stability
Semiconductor Packaging	Electrical insulation



Key Design Factors for High Power LED PCB Selection

1. Thermal Conductivity Requirement

Engineers should evaluate:

• LED power rating

• Heat generation

• Operating environment

• Cooling structure




Requirement	Recommended Solution
Low power LED	FR-4 PCB
Medium power LED	Aluminum MCPCB
High power LED	Copper MCPCB
Extreme thermal demand	Ceramic substrate



2. Operating Temperature

Temperature affects material selection.

Temperature Requirement	Recommended Material
Normal Environment	Aluminum PCB
High Temperature	Copper MCPCB
Extreme Temperature	Ceramic PCB



3. Mechanical Reliability

Different environments require different mechanical properties.

Factor	MCPCB	Ceramic PCB
Vibration Resistance	Excellent	Moderate
Impact Resistance	Excellent	Lower
Thermal Stability	Good	Excellent



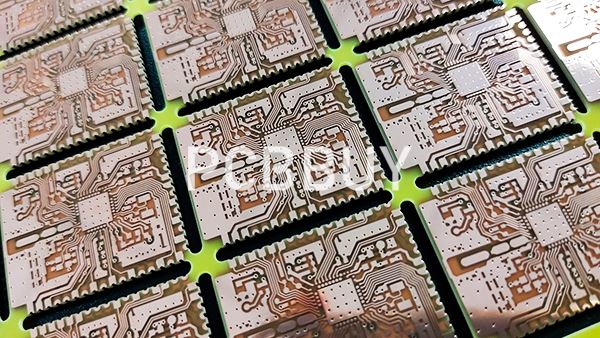

Manufacturing Challenges of Ceramic PCB and Metal Core PCB

Metal Core PCB Manufacturing Challenges

Challenge	Manufacturing Consideration
Thermal Layer Bonding	Requires reliable dielectric materials
Copper Adhesion	Ensures circuit reliability
Warpage Control	Maintains assembly accuracy
Insulation Reliability	Prevents electrical failure



Ceramic PCB Manufacturing Challenges

Challenge	Manufacturing Consideration
Material Brittleness	Requires precise processing
Drilling Difficulty	Needs specialized technology
Cost Control	Requires optimized production
Thermal Stress Management	Requires careful design



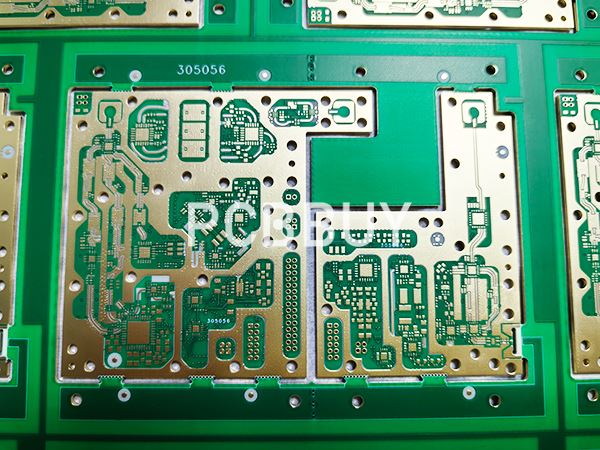

PCBBUY Capabilities for High Thermal PCB Applications

For LED and power electronic applications, PCBBUY provides:

Capability	Customer Benefit
Metal Core PCB Manufacturing	Reliable thermal solutions
Aluminum PCB Processing	Cost-effective LED solutions
High Thermal Conductivity Materials	Improved heat dissipation
Multilayer PCB Manufacturing	Complex circuit integration
Customized Copper Thickness	Supports power applications
Strict Quality Inspection	Ensures production consistency



PCBBUY supports prototype development and volume manufacturing with controlled PCB fabrication processes.



PCB Testing for High Power LED Applications

Reliable LED PCBs require comprehensive testing.

Test Method	Purpose
Thermal Testing	Evaluates heat dissipation
Electrical Testing	Confirms circuit performance
Copper Thickness Measurement	Ensures current capability
Insulation Resistance Testing	Verifies electrical safety
AOI Inspection	Detects manufacturing defects
Reliability Testing	Evaluates long-term performance



How to Select Between Ceramic Substrate and Metal Core PCB？

Design Requirement	Recommended Choice
Cost-sensitive LED lighting	Metal Core PCB
Automotive LED lighting	Metal Core or Ceramic PCB
Extreme temperature applications	Ceramic PCB
High-volume commercial LEDs	Metal Core PCB
Maximum thermal performance	Ceramic PCB
Lightweight lighting modules	Aluminum PCB



Conclusion

Selecting the right substrate technology is essential for achieving reliable high-power LED performance.

The comparison of ceramic substrate vs metal core PCB for high power LED shows that both technologies have unique advantages:

• Metal core PCB provides excellent thermal management, cost efficiency, and      manufacturing flexibility.

• Ceramic substrate PCB delivers superior thermal conductivity, electrical insulation, and      extreme temperature reliability.

The best choice depends on thermal requirements, operating environment, production volume, and cost considerations.

With advanced PCB manufacturing capabilities, thermal management solutions, metal core PCB processing, customized materials, and strict quality control systems, PCBBUY helps customers develop reliable PCB solutions for LED lighting, power electronics, and high-performance applications.



FAQ

1. What is the difference between ceramic substrate PCB and metal core PCB?

A ceramic substrate PCB uses ceramic materials for excellent thermal conductivity and electrical insulation, while a metal core PCB uses aluminum or copper layers to improve heat dissipation at a lower cost.



2. Which PCB is better for high power LED applications?

It depends on requirements.

• Metal core PCB is suitable for most  commercial high-power LEDs.

• Ceramic PCB is better for extreme  thermal environments requiring maximum performance.



3. Why are metal core PCBs commonly used in LED lighting?

Metal core PCBs provide:

• Good thermal performance

• Lower manufacturing cost

• Strong mechanical reliability

• Easy mass production capability



4. Why are ceramic PCBs more expensive?

Ceramic PCBs require specialized manufacturing processes, advanced materials, and precision processing, increasing production costs.



5. Can aluminum PCB replace ceramic PCB for high-power LEDs?

In many applications, yes. Aluminum PCBs provide sufficient thermal performance for commercial LED lighting. However, ceramic substrates are preferred for extreme temperature or ultra-high-power applications.



6. What materials are commonly used for ceramic substrate PCBs?

Common ceramic materials include:

• Aluminum oxide (Al₂O₃)

• Aluminum nitride (AlN)

• Silicon nitride (Si₃N₄)



7. What high thermal PCB capabilities does PCBBUY provide?

PCBBUY provides metal core PCB manufacturing, aluminum PCB solutions, high thermal conductivity materials, multilayer PCB production, customized copper thickness, and reliability testing for LED and power electronic applications.
