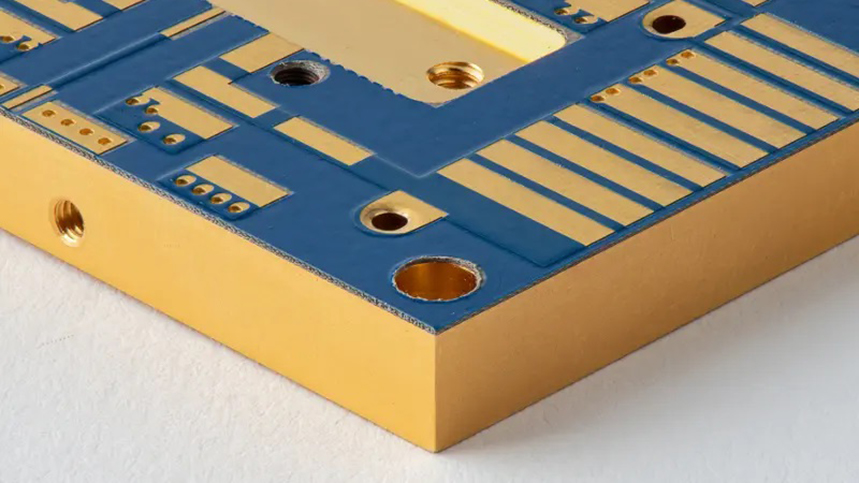

Controlled Impedance Tolerance in PCB Manufacturing
By：PCBBUY 05/21/2026 16:20
1. What Is Controlled Impedance Tolerance in PCB?
Item | Description |
Definition | Controlled impedance tolerance refers to the allowable deviation between the designed impedance value and the actual impedance achieved on the finished PCB. |
Typical Targets | ±10% (standard), ±8%, ±5%, or tighter for high-speed and RF designs |
Common Impedance Types | Single-ended (50Ω, 75Ω), Differential (90Ω, 100Ω) |
Applications | High-speed digital, RF, automotive electronics, data centers, telecom, and medical devices |
In modern high-speed PCB designs, impedance accuracy is as critical as trace width or layer count. Poor impedance tolerance directly impacts signal integrity, causing reflections, eye diagram collapse, and EMI issues.
2. Why Impedance Tolerance Matters in Mass Production
Risk Area | Impact of Poor Impedance Control |
Signal Integrity | Increased reflection, crosstalk, and attenuation |
High-Speed Interfaces | PCIe, USB, HDMI, DDR failures |
EMI / EMC | Higher radiation and compliance risks |
Yield Rate | Increased scrap and rework during assembly and testing |
Product Reliability | Performance drift over temperature and aging |
Maintaining tight impedance tolerance in volume production requires not just design accuracy, but repeatable manufacturing control.
3. Key Factors Affecting Controlled Impedance Tolerance
Factor | Manufacturing Challenge | Control Method |
Dielectric Thickness | Lamination variation | Precision lamination pressure & stack-up simulation |
Dielectric Constant (Dk) | Material batch variation | Approved material systems & incoming inspection |
Copper Thickness | Plating non-uniformity | Plating current density control |
Trace Geometry | Etching deviation | Fine-line LDI exposure & etch compensation |
Solder Mask Influence | Impedance shift | Mask-defined impedance modeling |
4. PCBBUY’s Controlled Impedance Tolerance Control Methodology
Process Stage | Control Strategy |
Stack-up Engineering | Pre-production impedance modeling based on actual material data |
Material Selection | High-frequency laminates with stable Dk & Df |
LDI Imaging | High-resolution laser direct imaging for trace accuracy |
Lamination Control | Multi-stage lamination pressure & temperature profiling |
Copper Plating | Tight thickness window control |
Etching Process | Real-time etch factor compensation |
Impedance Coupon Design | Dedicated test structures per panel |
TDR Testing | 100% impedance verification on critical layers |
This closed-loop process enables stable impedance tolerance control from prototype to volume production.
5. Typical Impedance Tolerance Capabilities
PCB Type | Standard Capability | Advanced Capability |
Multilayer FR-4 PCB | ±10% | ±8% |
HDI PCB | ±8% | ±5% |
High-Speed PCB | ±8% | ±5% |

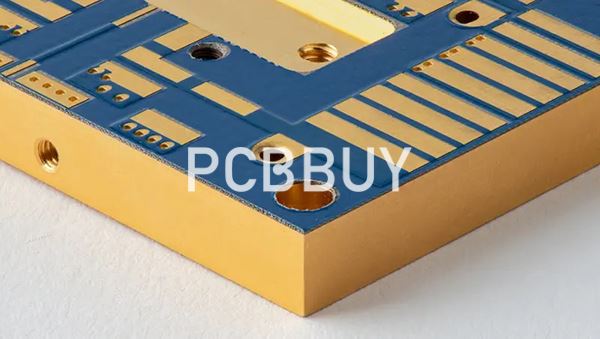

RF / Microwave PCB | ±5% | ±3% (material-dependent) |
Automotive PCB | ±8% | ±5% |
Actual tolerance depends on stack-up complexity, layer count, and material system.
6. Impedance Testing and Verification
Item | Description |
Test Method | TDR (Time Domain Reflectometry) |
Test Location | Dedicated impedance coupons |
Test Timing | After final plating |
Data Output | Real impedance curve vs target value |
Reporting | Included in shipment documentation |
PCBBUY provides traceable impedance test reports, supporting customer validation and quality audits.
7. Design Tips to Improve Impedance Yield
Recommendation | Benefit |
Use manufacturer-approved stack-ups | Reduces trial-and-error |
Avoid extreme aspect ratios | Improves etching stability |
Specify tolerance clearly | Avoids interpretation errors |
Include impedance coupons | Ensures measurable results |
Early DFM review | Prevents redesign cycles |
8. Why Choose PCBBUY for Controlled Impedance PCBs
Advantage | Value |
Engineering-driven process | Fewer iterations, faster launch |
Stable mass production | Consistent impedance across batches |
Advanced equipment | Fine-line and high-layer accuracy |
Full traceability | From material to final test |
Global delivery | Supporting prototypes to volume |
At PCBBUY, controlled impedance is not treated as a specification — it is treated as a process capability.
FAQ
Q1: What impedance tolerance should I specify for high-speed PCBs?
For most high-speed digital designs, ±8% is recommended. For critical interfaces or RF applications, ±5% or tighter is preferred.
Q2: Can impedance tolerance be guaranteed in mass production?
Yes, but only with process-based control, not manual adjustment. Stable material selection, lamination control, and in-line testing are essential.
Q3: Does solder mask affect impedance?
Yes. Solder mask can shift impedance by 2–5%. Accurate modeling and consistent mask thickness control are required.
Q4: Is tighter impedance tolerance always better?
Not necessarily. Overly tight tolerance increases cost and complexity. The tolerance should match the actual signal requirement.
Q5: Can PCBBUY support impedance control from prototype to volume?
Yes. PCBBUY supports end-to-end impedance control, ensuring consistency from quick-turn prototypes to high-volume production.
