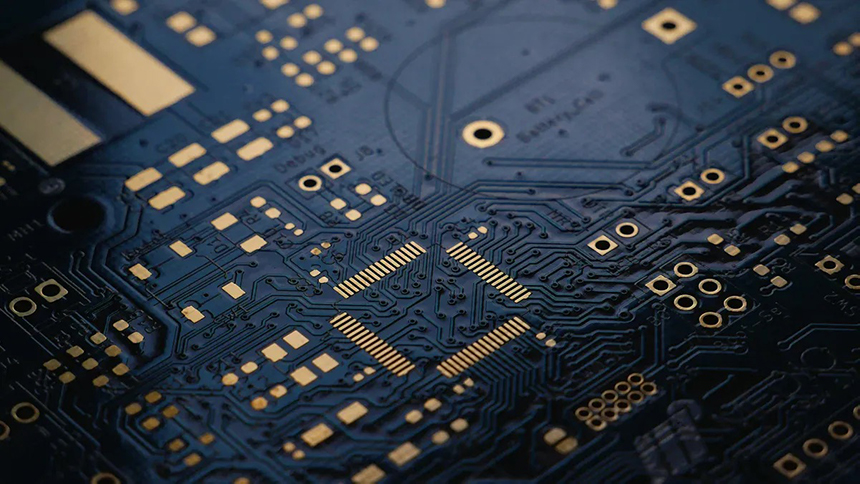

As electronic designs continue to push toward smaller component pitch, higher I/O density, and increased functional integration, surface finish selection becomes a critical factor affecting assembly yield, solder joint reliability, and long-term PCB performance.

Among all surface finishes used for fine pitch components, ENIG (Electroless Nickel Immersion Gold) and ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold) are the two most commonly specified options.

This article explains the key differences between ENEPIG and ENIG for fine pitch components, and how manufacturers like PCBBUY ensure consistent quality through advanced process control.

PCB Instant Quote

Why Fine Pitch Components Require Advanced Surface Finishes?

Fine pitch components such as BGA, CSP, QFN, and LGA typically feature:

• Pad pitch ≤ 0.5 mm

• Reduced solder joint volume

• Higher sensitivity to surface flatness and metallurgical stability

In these designs, the PCB surface finish directly influences:

• Solder wetting behavior

• Intermetallic compound (IMC) formation

• Resistance to corrosion and oxidation

• Reliability under multiple reflow cycles



ENIG and ENEPIG: Basic Structure Comparison

Surface Finish	Layer Structure
ENIG	Copper / Nickel / Gold

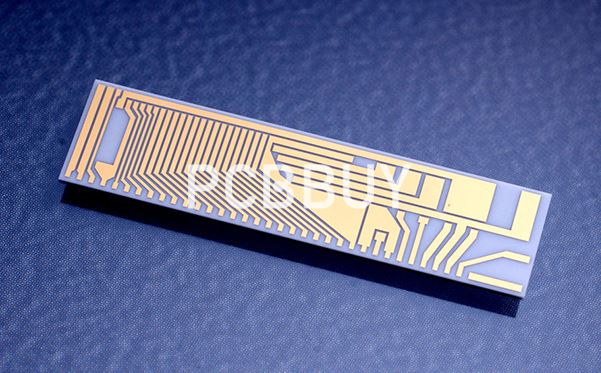

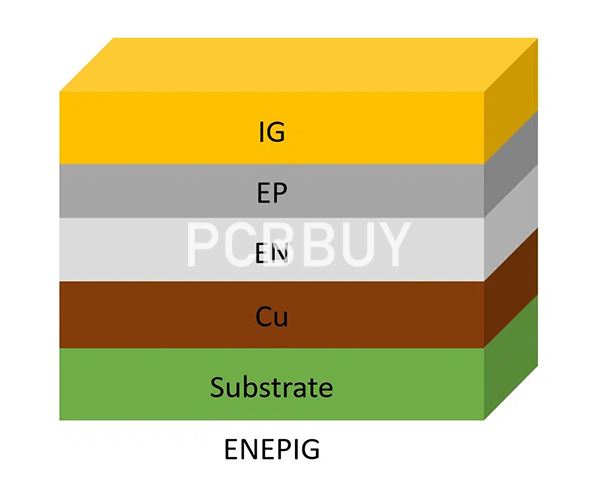

ENEPIG	Copper / Nickel / Palladium / Gold



The additional palladium layer in ENEPIG plays a decisive role in improving reliability for fine pitch assemblies.



ENEPIG vs ENIG for Fine Pitch Components: Technical Comparison

Comparison Item	ENIG	ENEPIG
Surface Flatness	Excellent	Excellent
Solderability	Very good	Excellent
Fine Pitch Suitability	Good	Superior
Black Pad Risk	Possible	Eliminated
Nickel Corrosion Resistance	Moderate	Excellent
IMC Uniformity	Acceptable	Highly stable
Multiple Reflow Resistance	Good	Excellent
Wire Bonding Support	Limited	Supported (Au & Cu wire)
Process Complexity	Lower	Higher
Cost Level	Lower	Higher



ENIG Performance in Fine Pitch PCB Designs

ENIG is widely used due to its:

• Flat surface ideal for fine pitch pads

• Good solderability with lead-free processes

• Mature, cost-effective manufacturing process

However, ENIG introduces a potential reliability risk known as Black Pad, caused by excessive nickel corrosion during gold immersion. In fine pitch components, this risk is more critical because:

• Solder joints are smaller and more fragile

• Defects are harder to detect during  inspection

• Failures may occur after thermal cycling or vibration

At PCBBUY, ENIG reliability is improved through:

• Strict nickel-phosphorus content control

• Optimized immersion gold chemistry

• Continuous bath monitoring and SPC management



Why ENEPIG Is Preferred for Ultra-Fine Pitch Components?

ENEPIG introduces a palladium barrier layer between nickel and gold, which provides:

• Protection against nickel corrosion

• More controlled IMC growth

• Higher solder joint mechanical strength

For fine pitch components, ENEPIG offers:

• Near-zero black pad risk

• Stable solder joints across multiple reflow cycles

• Better performance in high-reliability applications

ENEPIG is especially recommended for:

• ≤ 0.4 mm pitch BGA and CSP

• Automotive, medical, and industrial electronics

• Designs requiring both soldering and  wire bonding



PCBBUY’s ENIG & ENEPIG Manufacturing Capabilities

PCBBUY supports ENIG and ENEPIG surface finishes optimized for HDI and fine pitch PCB fabrication.

Capability Item	PCBBUY Specification
Supported Layers	1–26 layers
Minimum Line / Space	35 μm (1.4 mil)
Minimum Via Diameter	0.1 mm
ENIG Gold Thickness	Up to 100 μ”
ENEPIG Pd Layer Control	Tight chemical tolerance
Surface Finish Flatness	Fine pitch ready
Inspection Methods	AOI, X-ray, cross-section
Quality Standard	IPC Class 2 / Class 3



Through process standardization, inline inspection, and metallurgical verification, PCBBUY ensures stable surface finish quality even for high-density fine pitch layouts.



How to Choose Between ENIG and ENEPIG?

Choose ENIG when:

• Component pitch ≥ 0.5 mm

• Cost optimization is a priority

• Standard consumer or industrial applications

Choose ENEPIG when:

• Component pitch ≤ 0.4 mm

• High reliability is critical

• Multiple reflow cycles are expected

• Wire bonding is required



FAQ

Q1: Is ENEPIG always better than ENIG for fine pitch components?

Not necessarily. ENEPIG offers higher reliability, but ENIG remains suitable for many fine pitch designs when strict process control is applied.



Q2: Does ENEPIG completely eliminate black pad risk?

Yes. The palladium layer effectively prevents nickel corrosion, making black pad defects extremely unlikely.



Q3: Is ENEPIG compatible with lead-free soldering?

Yes. ENEPIG performs exceptionally well under lead-free reflow and multiple thermal cycles.



Q4: Why does ENEPIG cost more than ENIG?

ENEPIG requires additional chemical steps, tighter bath control, and longer processing time, increasing manufacturing cost.



Q5: Can PCBBUY help select the right surface finish?

Yes. PCBBUY provides DFM review and surface finish recommendations based on component pitch, reliability requirements, and application environment.



Conclusion

For fine pitch PCB components, surface finish selection is a key factor affecting both assembly yield and long-term reliability. While ENIG remains a proven industry standard, ENEPIG is increasingly preferred for ultra-fine pitch and high-reliability designs.
