AI servers combine high-speed data transmission, dense interconnections, and high power consumption in a limited space. As interfaces such as PCIe, high-speed Ethernet, and advanced SerDes links move toward higher data rates, the PCB material becomes a critical factor in signal integrity, thermal reliability, and manufacturing consistency.

Choosing a material based only on its dielectric constant or advertised data rate is not sufficient. Engineers must evaluate the complete channel, including the laminate, copper foil, stackup, vias, connectors, and package transitions.

This article explains the key considerations for PCB material selection for AI server boards and discusses how early cooperation with an experienced PCB manufacturer can support reliable and manufacturable designs.

PCB Instant Quote

Why Is Material Selection Important for AI Server PCBs?

AI server boards may contain high-speed links, large BGA packages, complex power-distribution structures, and high-density routing. These features place demanding requirements on PCB materials.

An unsuitable laminate may contribute to:

• Excessive insertion loss in high-speed  channels

• Impedance variation

• Increased signal attenuation

• Greater sensitivity to crosstalk

• Thermal expansion and reliability concerns

• Difficulties in multilayer lamination and registration

The material should therefore be selected according to the actual electrical and mechanical requirements of the board rather than simply choosing the most advanced or expensive laminate available.

Key Factors in PCB Material Selection for AI Server Boards

1. Dielectric Constant and Dissipation Factor

Two important electrical properties are the dielectric constant (Dk) and dissipation factor (Df).

• Dk affects  signal propagation speed, impedance, and electrical length.

• Df indicates how much signal energy is dissipated as heat within the dielectric      material.

For high-speed AI server channels, a stable and appropriately low Df can help reduce dielectric loss. However, the lowest Df value is not necessarily the only selection criterion. Engineers should also consider Dk stability, copper roughness, dielectric thickness, and the complete channel-loss budget.

Material properties should be evaluated at relevant frequencies and under suitable test conditions. Dk and Df values from different manufacturers should not be compared without checking whether the test methods and frequency points are consistent.

2. Copper Roughness and Conductor Loss

At high frequencies, conductor loss becomes increasingly important. The roughness of the copper surface can increase the effective path length of high-frequency current and contribute to signal attenuation.

When selecting materials for AI server boards, designers should consider:

• Copper foil profile

• Surface treatment

• Trace width and thickness

• Signal frequency and rise time

• Total channel length

• Compatibility between the copper foil and the lamination process

A low-loss dielectric cannot fully compensate for excessive conductor loss. Therefore, laminate selection and copper-foil selection should be evaluated together.

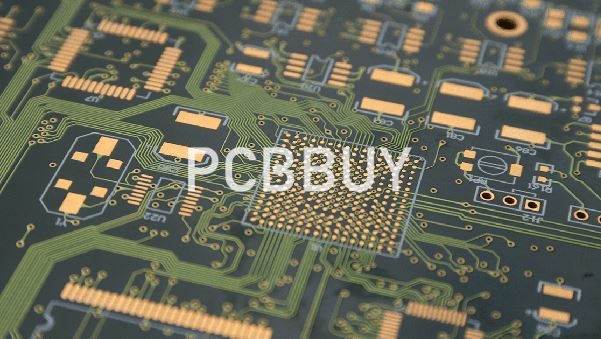

3. Stackup and Dielectric Thickness

The PCB stackup determines the relationship between signal layers, reference planes, and power planes. It also affects impedance, crosstalk, propagation delay, and manufacturability.

A suitable AI server PCB stackup should provide:

• Controlled dielectric thickness

• Stable reference planes

• Adequate spacing between sensitive signal layers

• Sufficient power and ground distribution

• Suitable routing space for high-density BGA packages

• Practical layer-to-layer transitions

The dielectric thickness should be selected together with trace width, trace spacing, copper thickness, and the required impedance. A material with excellent electrical properties may still be unsuitable if its available thicknesses cannot support the required stackup.

4. Thermal Stability and Z-Axis Expansion

AI server boards may experience substantial thermal loading because of high-power processors, accelerators, memory devices, and voltage-regulation circuits.

In addition to electrical performance, material selection should consider:

• Glass transition temperature

• Decomposition temperature

• Z-axis coefficient of thermal expansion

• Thermal stress during assembly

• Reliability of plated through-holes

• Compatibility with lead-free reflow processes

A high-Tg material can provide useful thermal stability, but Tg alone does not determine overall PCB reliability. The complete material system, copper structure, board thickness, via design, and thermal-cycle conditions must also be considered.

5. Moisture Resistance and CAF Reliability

Moisture absorption can affect dielectric performance and may influence reliability under certain environmental conditions. For high-density multilayer boards, engineers should also consider the material’s resistance to conductive anodic filament formation, commonly known as CAF.

The appropriate material should be evaluated according to:

• Product operating environment

• Layer spacing

• Via-to-via distance

• Lamination quality

• Moisture exposure

• Required reliability level

These factors may be particularly relevant when AI server boards are deployed in data-center environments with strict reliability and service-life requirements.

Which PCB Materials Can Be Considered for AI Server Boards?

There is no single material suitable for every AI server PCB. The appropriate choice depends on the highest-speed interface, channel length, loss budget, thermal requirements, and manufacturing conditions.

Material Category	Main Characteristics	Potential Application Considerations
Standard FR-4	Cost-effective and widely available	May be suitable for power, control, and lower-speed sections when   electrical requirements permit
High-Tg FR-4	Improved thermal stability compared with standard grades	Useful for boards requiring enhanced thermal and mechanical performance
Low-loss laminates	Reduced dielectric loss and more controlled high-frequency performance	Suitable for demanding high-speed signal layers
Very-low-loss laminates	Designed for more demanding high-frequency channels	Consider for long or loss-sensitive SerDes links after channel analysis
Mixed-material stackups	Combine different material grades within one PCB structure	May balance high-speed performance, cost, and overall manufacturability



For a complex AI server board, it may be unnecessary to use an advanced low-loss material throughout the entire stackup. If the design permits, critical high-speed layers can be assigned suitable low-loss materials while less demanding sections use more economical materials.

However, mixed-material lamination requires careful engineering review. Differences in resin systems, pressing conditions, thermal expansion, dielectric thickness, and material compatibility can affect registration and reliability.

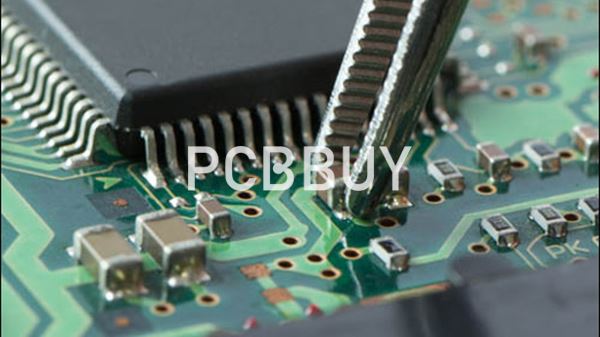

How Does Material Selection Affect PCB Manufacturing?

Material selection must be coordinated with the PCB fabrication process. A material that performs well electrically may still introduce manufacturing challenges if the supplier, thickness, or processing requirements are not properly controlled.

The following factors should be reviewed before production:

Manufacturing Consideration	Potential Effect on the Finished PCB
Material availability	May influence lead time, production continuity, and material   substitution options
Lamination compatibility	Affects bonding quality, layer registration, and board thickness
Resin flow characteristics	Influences dielectric thickness and copper-feature filling
Drilling and desmear requirements	May affect hole quality and interconnection reliability
Thermal expansion	Influences plated-hole reliability and dimensional stability
Material thickness tolerance	Can affect impedance and electrical-length consistency
Copper foil selection	Influences conductor loss and impedance control
Material lot consistency	Helps maintain repeatable electrical performance during volume   production



The final material specification should identify the approved material family, relevant electrical properties, thickness requirements, and any permitted alternatives. Uncontrolled material substitution may change impedance, insertion loss, and lamination behavior.

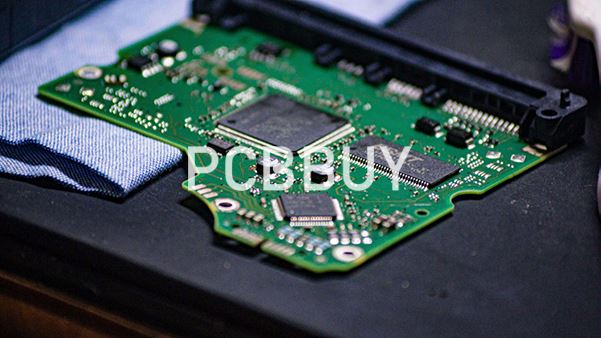

How Can PCBBUY Support Complex High-Speed PCB Projects?

PCBBUY focuses on PCB applications including automotive electronics, industrial control, power and electrical systems, power supplies, energy storage, new energy, and embodied robotics. These applications may require complex multilayer structures, high-density interconnections, controlled impedance, and stable manufacturing performance.

Although AI server boards have their own application-specific validation requirements, several of PCBBUY’s manufacturing capabilities are relevant to complex high-speed PCB development:

• High-frequency and high-speed materials: Support for materials from Rogers, TUC, Isola, and other manufacturers

• Low-Dk and low-Df material applications: Support for designs requiring careful control of high-speed transmission loss

• Mixed-material lamination: Support for asymmetric and heterogeneous mixed-material structures

• HDI manufacturing: Support for first-order and second-order HDI structures

• Laser-drilled blind vias: Minimum laser-drilled blind via diameter of Φ0.075 mm

• Mechanically drilled blind vias: Minimum mechanically drilled blind via diameter of Φ0.15 mm

• Large-size PCB production: Maximum production size of 1000 × 600 mm

• Quality inspection: AOI, flying-probe testing, and four-wire low-resistance testing

For AI server-related projects, PCBBUY’s engineering team should review the complete stackup, approved material list, impedance requirements, high-speed routing constraints, via structures, and lamination conditions before production.

These capabilities support complex PCB manufacturing, but they do not independently establish AI server or high-speed interface compliance. Final performance must be confirmed through the complete electrical design, channel analysis, manufacturing requirements, and applicable validation procedures.

What Should Be Confirmed Before Selecting the PCB Material?

Before finalizing the material for an AI server PCB, designers and manufacturers should jointly review:

1. The highest data rate and relevant channel-loss budget

2. Required Dk and Df values at the appropriate frequencies

3. Copper foil roughness and conductor-loss  requirements

4. Complete layer stackup and dielectric thicknesses

5. Differential impedance targets

6. Thermal expansion and reliability requirements

7. Material availability and approved alternatives

8. Lamination compatibility and manufacturing tolerances

9. Via, BGA, and high-density interconnection structures

10. Signal-integrity simulation and prototype-validation requirements

Material selection should be completed before the stackup and routing rules are frozen. Late material changes may require recalculating impedance, modifying trace geometry, or repeating signal-integrity analysis.

Conclusion

PCB material selection for AI server boards requires a balanced evaluation of electrical performance, thermal reliability, manufacturing feasibility, and cost. Dk and Df are important, but they should be considered alongside copper roughness, dielectric thickness, stackup design, thermal expansion, and material consistency.

For high-speed AI server channels, low-loss or very-low-loss laminates may be necessary. However, the correct material grade depends on the actual channel requirements rather than on the data rate alone. In some designs, a carefully engineered mixed-material stackup may provide a practical balance between performance and cost.

Early cooperation with the PCB manufacturer can help verify material availability, lamination compatibility, impedance control, and process capability. For complex multilayer projects, this engineering coordination is essential to achieving a predictable and manufacturable PCB structure.
