Etching Compensation Techniques for Fine Line PCB

By：PCBBUY 04/27/2026 14:27

As electronic products move toward miniaturization, higher routing density, and finer geometries, etching compensation techniques for fine line PCB manufacturing have become essential to achieving design accuracy and stable mass production.

For PCB manufacturers, the ability to accurately compensate for etching loss is a key indicator of process modeling capability, imaging accuracy, and yield control strength.

PCB Instant Quote

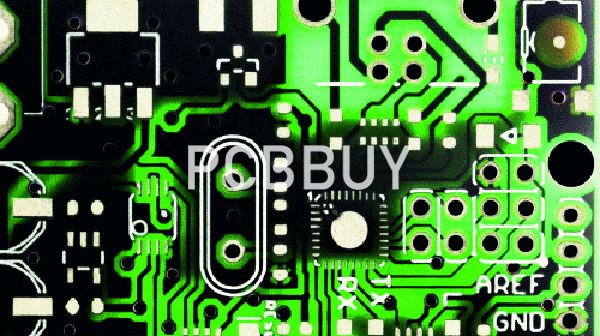

What Is Etching Compensation in Fine Line PCB?

Etching compensation refers to intentional dimensional adjustment of PCB trace patterns during imaging, offsetting copper loss caused by the chemical etching process to ensure final trace width meets design specifications.

Item	Description
Purpose	Offset copper side etching
Applied stage	Inner / outer layer imaging
Target	Final trace width accuracy
Critical for	Fine line & high-density PCBs

Why Etching Compensation Is Critical for Fine Line PCBs？

Risk Without Compensation	Manufacturing Impact
Trace narrowing	Increased resistance
Line width variation	Impedance deviation
Over-etching	Open circuits
Poor consistency	Low mass production yield
Assembly issues	Signal integrity problems

Etching Challenges in Fine Line PCB Manufacturing

Challenge	Root Cause
Undercut effect	Isotropic chemical etching
Copper thickness variation	Plating non-uniformity
Etchant activity fluctuation	Chemistry instability
Pattern density differences	Uneven etch rates
Process drift	Long production runs

Etching Compensation Techniques for Fine Line PCB Manufacturing

1. Imaging Scale & Line Width Compensation

Control Aspect	Manufacturing Practice	Value Delivered
Line width biasing	Pre-compensation in artwork	Final accuracy
Density-based compensation	Area-specific bias values	Uniform results
Layer-specific adjustment	Inner vs outer layer tuning	Process precision

2. LDI (Laser Direct Imaging) Precision Control

Control Aspect	Manufacturing Practice	Value Delivered
High-resolution imaging	Fine beam spot control	Sharp trace edges
Digital scaling	Software-based compensation	Fast adjustment
Pattern fidelity	Consistent exposure	Line integrity

3. Copper Thickness Uniformity Control

Control Aspect	Manufacturing Practice	Value Delivered
Panel plating balance	Uniform copper deposition	Predictable etching
Current density optimization	Even plating thickness	Reduced variation
Thieving pattern design	Copper density leveling	Etch consistency

4. Etching Process Stability Control

Control Aspect	Manufacturing Practice	Value Delivered
Etchant concentration monitoring	Automatic chemical control	Stable etch rate
Temperature regulation	Controlled reaction speed	Reduced undercut
Conveyor speed tuning	Time-based control	Precision etching

5. Pattern Density & Layout-Aware Compensation

Control Aspect	Manufacturing Practice	Value Delivered
Local density analysis	Area-specific compensation	Fine-line accuracy
Copper pour balancing	Uniform exposure to etchant	Yield improvement
Engineering CAM review	Pre-production risk mitigation	First-pass success

6. Inspection & Feedback Loop Optimization

Verification Method	Purpose	Quality Assurance
AOI measurement	Actual line width verification	Immediate feedback
Cross-section analysis	Copper profile validation	Process tuning
SPC tracking	Trend monitoring	Long-term stability
Engineering feedback loop	Continuous optimization	Yield improvement

Typical Etching Compensation Capability Ranges

PCB Type	Minimum Achievable Line Width
Standard multilayer PCB	≥75 μm (3 mil)
Fine line PCB	50–65 μm (2–2.5 mil)
Advanced HDI PCB	35 μm (1.4 mil) or below

(Actual capability depends on material, copper thickness, and application.)

Applications Requiring Advanced Etching Compensation

Application	Reason
HDI PCBs	Dense routing
Controlled impedance boards	Line width accuracy
High-speed digital PCBs	Signal integrity
Automotive electronics	Reliability
Industrial control systems	Consistent mass production

What Etching Compensation Capability Indicates About a PCB Manufacturer？

A manufacturer with strong etching compensation techniques for fine line PCB demonstrates:

Advanced process modeling and CAM engineering
High-precision LDI imaging capability
Stable plating and etching control
Mature mass production yield management
Reliable fine line repeatability

These capabilities directly translate into higher design fidelity, better electrical performance, and lower total manufacturing risk.

FAQ

FAQ 1: What is etching compensation in PCB manufacturing?

It is a pre-imaging adjustment that compensates for copper loss during etching to ensure final trace dimensions meet design requirements.

FAQ 2: Why is etching compensation important for fine line PCBs?

Because fine lines are highly sensitive to etching undercut, and without compensation, trace width deviations can cause electrical and yield issues.

FAQ 3: How is etching compensation applied?

Through CAM biasing, LDI digital scaling, pattern density analysis, and layer-specific adjustments.

FAQ 4: Does etching compensation affect impedance control?

Yes. Accurate compensation is essential for controlled impedance PCBs, where trace width directly affects signal performance.

FAQ 5: How is etching accuracy verified?

By using AOI measurement, cross-section inspection, and SPC data analysis.

FAQ 6: Does advanced etching compensation increase PCB cost?

While it adds engineering effort, it reduces overall cost by improving yield, consistency, and assembly success.

Conclusion

Etching compensation techniques for fine line PCB manufacturing are a core foundation of high-precision PCB production. Manufacturers with proven compensation strategies can deliver dimensionally accurate, electrically stable, and mass-production-ready fine line PCBs, supporting advanced electronic applications worldwide.
