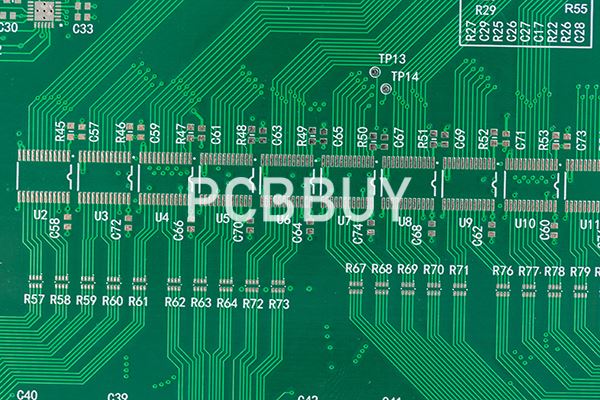

As PCB data rates continue to increase in automotive electronics, industrial control systems, power electronics, energy storage equipment, and humanoid robotics, signal integrity has become a manufacturing issue as much as a design issue. One often-overlooked source of high-speed signal degradation is the via stub.

A conventional through-hole via may extend through several PCB layers even when the high-speed signal only needs to connect two or three of them. The unused portion of the via becomes a stub. At relatively low frequencies, its effect may be negligible. As signal rise time becomes faster, however, even a short stub can behave as a significant transmission-line discontinuity and introduce reflection, resonance, insertion loss, and impedance discontinuity.

Therefore, engineers increasingly need to reduce via stubs in high speed PCB design rather than treating them as an afterthought.

From a PCB engineering and manufacturing perspective, via-stub control should be considered during stackup planning, via structure selection, impedance design, HDI design, and fabrication engineering. A theoretically excellent layout can still encounter signal-integrity problems if the selected via structure cannot be manufactured consistently.

For automotive, industrial control, power and energy systems, and humanoid robotics, this design-for-manufacturing approach is particularly important because high-speed interfaces often operate alongside high-current, high-temperature, and mechanically demanding circuits.



What Is a Via Stub in a High Speed PCB?

A via stub is the unused portion of a PCB via that extends beyond the actual signal connection point.

For example, assume a signal travels from Layer 1 to Layer 6 using a through-hole via on a 16-layer PCB. If the via physically continues from Layer 6 to Layer 16, the portion between Layer 6 and Layer 16 is electrically unused by that signal.

That unused section is the via stub. The longer the stub and the faster the signal transition, the more significant its electrical effect can become.

A simplified structure can be understood as:

Signal Layer → Via → Target Layer → Unused Via Section

The unused section does not simply behave like an ordinary piece of copper. At high frequencies, it becomes part of the electromagnetic structure of the interconnect.



Why Do Via Stubs Cause Problems in High Speed PCB Design?

The primary concern is impedance discontinuity.

A high-speed transmission path should ideally maintain a relatively consistent impedance from transmitter to receiver. When a signal encounters a via structure with a long unused section, part of the signal energy can enter the stub and be reflected back toward the main signal path.

This can contribute to:

• Signal reflection

• Insertion loss

• Return loss degradation

• Resonance

• Eye-diagram closure

• Increased jitter

• Reduced signal margin

• Greater sensitivity to manufacturing variation

The problem becomes more important as interfaces move toward higher data rates and faster edge rates.

Importantly, data rate alone does not determine whether a via stub is problematic. The rise/fall time of the signal is also critical. A relatively modest data rate can still contain very fast edges and therefore experience significant high-frequency effects.

This is one reason why experienced PCB engineers evaluate the complete signal path instead of judging a design only by its nominal data rate.



When Should You Reduce Via Stubs?

There is no universal stub-length value that is safe for every PCB.

The acceptable stub length depends on factors such as:

• Signal rise time

• Operating frequency

• Dielectric constant

• Via geometry

• Trace impedance

• Layer structure

• Interface specification

• System signal-integrity margin

For high-speed interfaces, engineers should therefore avoid relying on a simple rule such as "all stubs below X mm are safe."

A better engineering approach is to evaluate the via as part of the complete interconnect and use simulation or measurement when necessary.

For demanding applications, shortening the stub at the stackup-design stage is generally preferable to trying to compensate for it after fabrication.



What Are the Main Ways to Reduce Via Stubs in High Speed PCB Design?

Several approaches are commonly used.

1. Use Blind Vias Instead of Through-Hole Vias

A blind via connects an outer layer to one or more inner layers without passing through the entire PCB.

Because the via does not continue through the unused lower layers, the resulting stub can be significantly shorter.

This makes blind vias particularly useful for:

• High-speed interfaces

• Dense BGA routing

• HDI structures

• High-density automotive electronics

• Compact industrial control boards

However, blind-via design introduces additional manufacturing requirements, including laser drilling, sequential lamination, registration control, and via reliability management.

For this reason, the PCB manufacturer's HDI process capability should be considered during the design stage.



2. Use Buried Vias Where Appropriate

A buried via connects internal PCB layers without reaching the outer surface.

In a suitable stackup, buried vias can help create shorter and more controlled signal transitions while freeing routing space on outer layers.

They can be particularly useful when:

• Routing density is high

• Multiple internal signal layers are required

• BGA escape routing is complex

• Signal paths must avoid long through-hole structures

However, buried-via structures usually increase manufacturing complexity and should be evaluated together with layer count, sequential lamination requirements, registration tolerance, and cost.



3. Consider HDI Microvias

HDI microvias are one of the most effective technologies for controlling via length in high-density, high-speed PCB designs.

A laser-drilled microvia typically connects only adjacent or closely spaced layers. This naturally minimizes the length of the conductive transition.

For high-speed applications, microvias can provide several advantages:

• Shorter electrical transitions

• Reduced via parasitics

• Higher routing density

• Better BGA escape capability

• More flexible stackup architecture

The choice between staggered and stacked microvias depends on the design and manufacturing requirements. For demanding products, microvia reliability is just as important as signal-integrity performance.



How Does Stackup Design Help Reduce Via Stubs?

Via-stub control should begin with the PCB stackup.

The stackup determines:

• Which layers need to be connected

• How far a via must travel

• Where reference planes are located

• Dielectric thickness

• Impedance geometry

• Whether HDI structures are advantageous

A poor stackup can force high-speed signals to use unnecessarily long through-hole vias.

A well-planned stackup can instead place critical signal layers close to their reference planes and minimize unnecessary layer transitions.

For example, if a high-speed differential pair only needs to travel between two internal layers, the engineer should consider whether a blind via or microvia structure can provide a more direct connection than a full through-hole via.

This is why stackup design and via-stub reduction should be treated as one engineering problem rather than two separate tasks.



How Can Differential Pair Routing Reduce the Impact of Via Stubs?

High-speed differential interfaces are particularly sensitive to discontinuities.

When a differential pair passes through vias, engineers should pay attention to:

• Via-to-via spacing

• Pair symmetry

• Anti-pad geometry

• Reference-plane continuity

• Return-current path

• Layer transition location

• Stub length

The two vias should maintain as much symmetry as practical.

An asymmetrical transition can introduce differential-to-common-mode conversion, potentially increasing EMI and degrading signal quality.

The return path is equally important. If the signal changes layers while its reference plane changes, the return current needs a low-inductance path between reference planes.

Therefore, via-stub reduction should not be considered in isolation. The complete transition structure—including signal vias, ground vias, anti-pads, and reference planes—needs to be engineered together.



Can Backdrilling Reduce Via Stubs?

Yes. Backdrilling, also called controlled-depth drilling, is a common method for removing the unused portion of a through-hole via.

Instead of replacing the entire through-hole structure with an HDI structure, the manufacturer mechanically removes the unwanted copper barrel from the back side of the PCB.

The resulting structure is approximately:

Signal Layer → Target Layer → Short Remaining Via → Backdrilled Section

Backdrilling can be useful when:

• Through-hole vias are required for  mechanical or electrical reasons

• The PCB has many layers

• HDI is not the most economical solution

• High-speed channels are particularly sensitive to stub effects

However, backdrilling introduces its own manufacturing considerations, including drilling depth, residual stub control, registration, drill-to-copper clearance, and inspection requirements.

For this reason, the backdrill process should be specified and verified with the PCB manufacturer before production.

Where the customer's design requires backdrilling, Lieban/PCBBUY engineering should evaluate the stackup, drill structure, copper thickness, and manufacturing tolerance together rather than treating backdrilling as a simple drawing note.



Should Every High Speed PCB Use Backdrilling?

No.

Backdrilling is one solution, not a universal requirement.

Depending on the design, engineers may achieve adequate signal integrity through:

• Optimized stackup

• Blind vias

• Buried vias

• HDI microvias

• Shorter through-hole structures

• Optimized anti-pad geometry

• Differential via optimization

• Backdrilling

The most appropriate method depends on the interface, PCB thickness, layer count, routing density, manufacturing requirements, and cost target.

For this reason, an experienced PCB manufacturer should review the complete design rather than automatically recommending the most complex via technology.



How Should PCB Manufacturers Control Via Stub Quality?

From a manufacturing perspective, via-stub reduction is not only about choosing the right structure. It is also about maintaining dimensional consistency.

Several manufacturing factors are important:

Engineering Factor	Why It Matters	Lieban/PCBBUY Capability or Approach
Layer registration	Ensures accurate via-to-pad alignment	High-precision multilayer manufacturing with registration control
Minimum hole size	Determines feasible via structures	Minimum hole capability down to 0.1 mm
HDI microvia processing	Enables short layer-to-layer connections	Supports 1–3 stage HDI and laser-drilled microvias
Fine-line fabrication	Supports dense high-speed routing	Minimum line width down to 35 μm / 1.4 mil; HDI designs can reach 2/2   mil
Copper thickness	Affects via structure and electrical performance	Customized copper thickness; heavy copper capability up to 10 oz
Lamination control	Critical for multilayer and HDI structures	Controlled multilayer/HDI lamination processes
Electrical verification	Confirms circuit continuity and performance	Flying probe and electrical testing



The exact manufacturing route should always be determined from the customer's Gerber/ODB++ data, stackup, drill files, material selection, and required specifications.



How Does Lieban Recommend Approaching Via-Stub Reduction?

For customers developing automotive electronics, industrial control equipment, power and energy-storage systems, and humanoid robotics, Lieban's engineering approach should focus on DFM + signal integrity, rather than simply selecting an advanced via technology.

First, identify the critical high-speed nets

Not every net requires the same level of optimization.

Priority should normally be given to:

• High-speed differential interfaces

• High-frequency clock signals

• High-speed memory interfaces

• High-speed communication links

• Sensitive SerDes channels

These nets should be reviewed first during stackup and via-structure planning.

Second, define the stackup before finalizing the via structure

The stackup determines the available options for:

• Blind vias

• Buried vias

• Microvias

• Through-hole vias

• Backdrilling

Changing the via structure after the PCB stackup has been finalized can create unnecessary manufacturing and cost issues.

Third, minimize unnecessary layer transitions

Every layer transition adds parasitic elements to the signal path.

A shorter and simpler interconnect is generally easier to control.

Fourth, verify impedance and transition structures

For controlled-impedance designs, the via should be evaluated together with:

• Trace width

• Dielectric thickness

• Copper thickness

• Anti-pad

• Reference plane

• Via geometry

The goal is not simply to make the via "small," but to create a controlled transition through the complete stackup.



How Does HDI Capability Help High Speed PCB Design?

HDI technology is particularly useful when high-speed routing and component density increase simultaneously.

Lieban/PCBBUY's documented capabilities include:

• 1–3 stage HDI

• Laser drilling

• Laser-drilled microvias

• Stacked-via structures

• Copper-filled via technology

• Epoxy-filled via options

• Minimum hole size down to 0.1 mm

• HDI line/space capability down to 2/2  mil

• High multilayer PCB manufacturing from 4 to 26 layers

These capabilities provide designers with more options when optimizing high-speed via transitions.

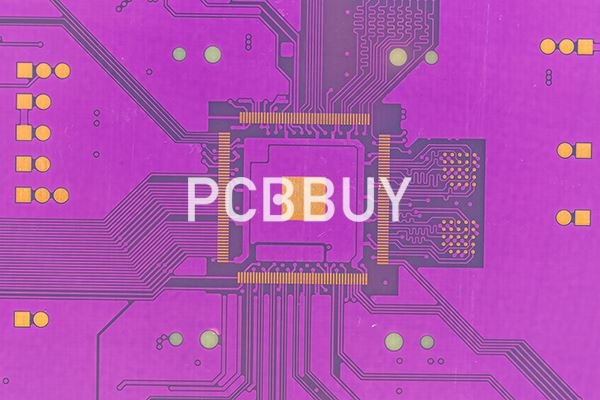

For example, a high-density BGA area may use microvias to connect the outer layer to selected inner layers instead of relying entirely on conventional through-hole vias.

This can simultaneously address two problems:

routing density + via-stub length.



Why Is Copper Filling Important for HDI Via Reliability?

Reducing via stubs does not help much if the resulting microvia structure is unreliable.

HDI microvias experience thermal and mechanical stresses during:

• PCB lamination

• Soldering

• Reflow

• Thermal cycling

• Long-term operation

Copper-filled vias can provide a more robust structure for certain HDI designs, particularly where stacked microvias are required.

For applications such as automotive electronics, energy storage, industrial control, and robotics, reliability should therefore be considered alongside routing density and signal integrity.

The appropriate via-fill structure should be determined according to the stackup, aspect ratio, pad design, and reliability requirements of the product.



How Does PCB Thickness Affect Via-Stub Reduction?

PCB thickness is another important factor.

As the board becomes thicker, a through-hole via potentially extends across a longer distance. If the target signal layer is near one side of the board, the unused section can therefore become more significant.

This is particularly relevant for high-layer-count PCBs.

Lieban/PCBBUY supports multilayer PCB structures from 4 to 26 layers, with board thickness capability ranging from approximately 0.25 mm to 4.0 mm according to the supplied manufacturing specifications.

This means via selection should be evaluated together with the actual board thickness and stackup rather than using a generic via rule.



What Should Engineers Check Before Sending a High-Speed PCB to Manufacturing?

Before releasing a high-speed design, I recommend checking the following items with the PCB manufacturer:

1. Which signal nets are sensitive to via stubs?

2. What is the signal rise time?

3. Which layers are used by the critical signals?

4. Are through-hole vias necessary?

5. Can blind or buried vias shorten the transition?

6. Is HDI appropriate for the design?

7. Is backdrilling required?

8. Are differential via structures  symmetrical?

9. Does the signal maintain a continuous  reference plane?

10. Can the selected via structure be  manufactured consistently at the required PCB thickness and copper thickness?

These questions should ideally be resolved before production engineering begins, rather than after a prototype fails signal-integrity testing.



Via Stub Reduction for Different Application Areas

The required level of via-stub optimization depends heavily on the product.

Automotive Electronics

Automotive PCBs may combine:

• High-speed communication

• Power electronics

• High temperature

• Vibration

• Long service life

The PCB structure therefore needs to balance signal integrity with mechanical and thermal reliability.

Industrial Control

Industrial systems often require stable operation over long periods.

A manufacturable and repeatable via structure is generally more valuable than an unnecessarily complex design.

Power and Energy Storage

Power systems may combine high-current copper structures with sensitive control and communication signals.

Careful layer planning is required to prevent high-current structures from interfering with sensitive high-speed routing.

Humanoid Robotics

Humanoid robots combine:

• Dense electronics

• High-speed communication

• Motor control

• Power management

• Sensors

• Compact mechanical structures

HDI and optimized via transitions can help reduce PCB size while maintaining signal integrity.



How Can PCB Manufacturers Balance Signal Integrity and Manufacturing Cost?

The best high-speed PCB is not necessarily the one with the most advanced technology.

For example:

Through-hole via → Blind via → Microvia → Stacked microvia + additional processes

represents increasing manufacturing complexity.

The correct choice depends on the actual electrical requirement.

A practical engineering approach is:

Signal requirement → Stackup → Via structure → Manufacturing feasibility → Cost → Reliability validation

This avoids using expensive HDI or backdrilling processes where a simpler structure would provide sufficient electrical performance.

For Lieban customers, this DFM-oriented approach can be particularly valuable for volume production because the objective is not simply to manufacture one successful prototype, but to maintain repeatable quality and stable production yield.



Conclusion

Reducing via stubs is an important part of high-speed PCB design, particularly as signal rise times become faster and signal-integrity margins become tighter.

The most effective solution is not always backdrilling. Depending on the design, engineers can reduce via stubs through:

• Optimized PCB stackup

• Blind vias

• Buried vias

• HDI microvias

• Stacked or staggered microvias

• Controlled backdrilling where appropriate

• Optimized differential via structures

• Reduced layer transitions

From the manufacturing side, the success of these solutions depends on accurate multilayer registration, laser drilling, copper plating, lamination, fine-line fabrication, via filling, and electrical inspection.

For high-performance applications such as automotive electronics, industrial control, power and energy storage, new energy equipment, and humanoid robotics, Lieban/PCBBUY can combine high-layer-count PCB fabrication, HDI technology, fine-line processing, customized copper thickness, and precision manufacturing capabilities to support demanding PCB designs.

Most importantly, via-stub reduction should be addressed before PCB fabrication begins. When PCB designers and manufacturers evaluate stackup, signal integrity, via structure, and manufacturability together, it becomes much easier to achieve a high-speed PCB that is not only electrically reliable, but also practical for repeatable production.



FAQ: Reduce Via Stubs in High Speed PCB Design

What is a via stub in PCB design?

A via stub is the unused portion of a via that extends beyond the signal's actual connection layers. At high frequencies, this unused copper structure can cause impedance discontinuities and signal reflections.

Why should you reduce via stubs in high speed PCB design?

Long via stubs can increase parasitic effects and cause reflection, resonance, insertion-loss degradation, and other signal-integrity problems. Reducing the stub helps create a more controlled high-speed interconnect.

How can I reduce via stubs on a multilayer PCB?

Common methods include blind vias, buried vias, HDI microvias, optimized stackup design, and backdrilling. The best solution depends on the PCB layer count, thickness, signal requirements, and manufacturing constraints.

Is backdrilling always necessary for high-speed PCBs?

No. Backdrilling is only one possible solution. If the stackup and via structure can already provide a sufficiently short transition, blind vias, microvias, or other structures may be more appropriate.

Are microvias better than through-hole vias for high-speed PCB design?

Microvias can provide shorter electrical transitions and higher routing density, making them useful for many HDI high-speed designs. However, they also require appropriate manufacturing and reliability controls.

How does PCB stackup affect via stubs?

The stackup determines how far a via must travel between signal layers. A well-designed stackup can minimize unnecessary via length and provide better reference-plane continuity, reducing the need for complex post-processing.

Can HDI technology reduce via stubs?

Yes. HDI microvias generally connect only selected layers and therefore can significantly shorten the conductive transition compared with a conventional through-hole via.

What HDI capabilities does Lieban/PCBBUY provide?

Based on the supplied manufacturing specifications, Lieban/PCBBUY supports 1–3 stage HDI, laser drilling, stacked vias, copper-filled vias, epoxy-filled vias, minimum hole sizes down to 0.1 mm, and HDI line/space capability down to 2/2 mil. The appropriate structure should be confirmed against the customer's specific stackup and production requirements.

What PCB layer counts can Lieban/PCBBUY manufacture?

The supplied capability information indicates support for 4–26 layer multilayer PCBs, with board thickness capability of approximately 0.25–4.0 mm.

Can Lieban/PCBBUY manufacture high-speed controlled-impedance PCBs?

Yes. Controlled-impedance manufacturing is among the PCB capabilities you previously provided for the brand. For a specific high-speed design, impedance requirements should be evaluated together with the stackup, dielectric thickness, copper thickness, trace geometry, and via structure.

What should I provide to the PCB manufacturer for via-stub evaluation?

The most useful information includes the PCB fabrication data, layer stackup, drill files, controlled-impedance requirements, material information, copper thickness, critical high-speed nets, and any requirements for HDI or backdrilling. This allows the manufacturer to evaluate the design from both signal-integrity and DFM perspectives.
