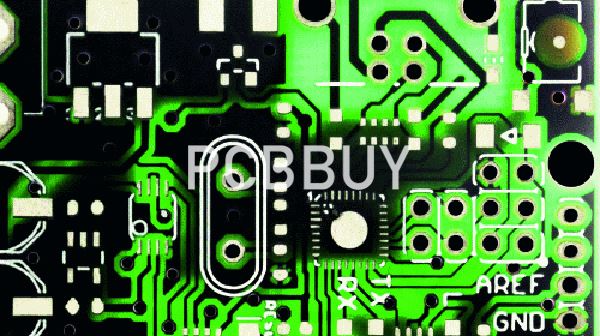

PCBs also encounter thermal mismatches that can ultimately undo the final product.   Drilling evacuates material, and plating deposits only a thin layer that does not absorb heat and expands at the same rate as the substrate.   This action can eventually cause early failure of the via (or other PTH), but via filling is a seemingly roundabout method that maintains structural integrity.

PCB Instant Quote

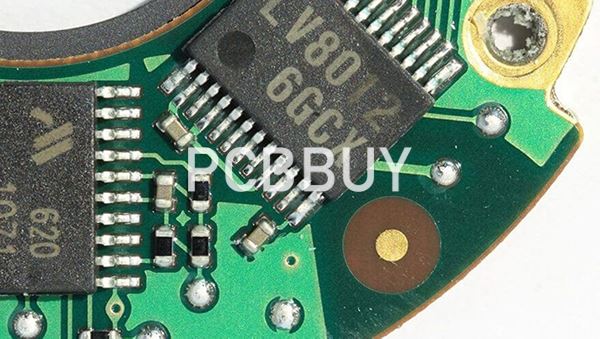

The Motivation for Via Filling

The via-filling process responds to reliability issues associated with standard via production.  In terms of continuity, a via is simply a vertically-oriented trace.  However, the long-term quality outcomes diverge because the fabrication method of drilling and plating is much more involved than etching on a plane.  Primarily, the thermal cycling of the board develops a stress-strain matrix at the interface of the via barrel and surrounding substrate due to a difference in the z-axis coefficients of thermal expansion (CTE).

CTEs are intrinsic material properties, and while design can opt for a CTE closer to the substrate material, the absence of material within the via barrel also contributes to an uneven heating profile.  The solution is to deposit a material inside the via barrel and cap it shut to more closely align the z-axis expansion of the via with its surroundings, preventing intermittent connectivity and open circuits owing to thermal cracking.

The fill material itself broadly fits into two categories: conductive and non-conductive.  The material conductivity does not affect the electrical continuity of the via but impacts the thermal routing.  Most designs settle on a non-conductive epoxy fill as the CTE better matches that of the board material, ensuring stable performance and high reliability over the device’s service life.  The conductive fill option is less popular by a significant margin, but it can act as a thermal management solution as it improves the heat flow through the via barrel.

Since thermal vias do not require any extra space in the layout (unlike copper pours or more robust heat sinks), they can be exceptionally vital in HDI designs looking to squeeze additional functionality out of a limited area.  Two possible applications are a grid of thermal vias within the thermal pad of a flat-pin SMD package or BGA via-in-pad.

Beyond thermal performance, via filling protects the long-term function of the via by serving as a physical barrier to contamination.  Via filling offers two direct advantages to assembly:

It serves as a barricade to solder capillary action wicking up the via and shorting connections between components on the other side of the board during wave soldering.

It prevents solder paste from wicking into the via and undermining the quality of the joint;  dogbone via arrays found in larger-pitch BGAs can be susceptible to this failure mode.

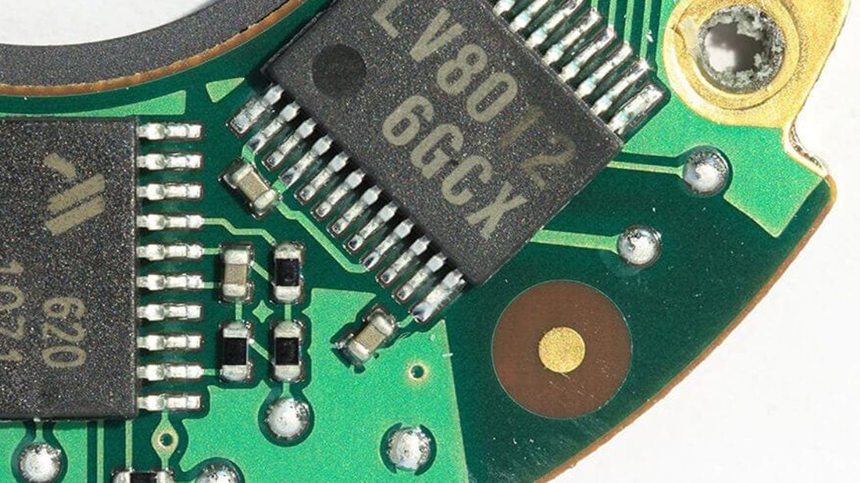

How Via Filling Affects Design and Fabrication Workflow？

The process of material selection post-plating involves a careful balance of via design elements, namely the diameter, structure, and the drill’s depth versus the hole’s diameter (also known as the aspect ratio), further complicating the process.  In general, designers should consult with manufacturers to optimize via characteristics:

The finished diameter of the via is critical to the success of the filling process: too small and the filling material cannot easily flow into the opening, but too large and the filling material will run out of the opening.  The exact values will differ by manufacturer equipment and expertise, but filled via hole diameters typically start near 8 mils/. 20 mm and max out around 18 mils/. 45 mm.

Plated through-holes and blind vias are the only via structures compatible with filling.  However, this process can iterate for microvias to form stacked and staggered via structures.

Via filling can be universal to a design, but designers can also designate fill/no-fill styles individually.  Designers have this option because the manufacturer must complete the via-fill process before further drilling on the bare board.  Essentially, the additional processing steps amount to a secondary drill stage that finishes with the fill material pushed into the via before baking.  Therefore, designers can create an extra layer in the board file (and associated artwork) that provides a quick reference of all the vias for filling.
