These types of PCBs offer a range of benefits. One of the most common reasons for using the multilayer PCB is the size. Because of the layered design, it means that the PCB will be smaller than other printed circuit boards but still have the same level of functionality. Most people today want their electronics to be smaller, while still being powerful. The multilayer PCB allows for this. These types of boards also happen to weigh less, which helps to reduce the overall weight of the gadgets in which they are used. However, the size is certainly not the only benefit.

How to make multilayer PCB? If you are a beginner of PCB industry, please check and read the content below in this passage for more professional knowledge.

Wanna know PCB knowledge? Check and read for more.

What are the applications of multilayer PCB?

Consumer Electronics

The term “Consumer Electronics” is a wide term that includes many electronic devices that comes under the umbrella of commonly used devices that are directly relevant to common users like you and me. The consumer electronics include, smartphones, smart watches, calculators, TV remote control, mp3 music player, toys, kitchen appliances, washing machines, electric kettle, e-cigarettes, LED bulbs and energy savers etc.

Computers and Devices

Today our world is highly dependent on computers and automation. Multilayer PCBs are commonly found in computers and associated products like motherboards, graphics cards, EEPROMs, Power supplies, keyboard, computer mouse, ADCs, GPUs, Image processing circuits etc.

How to identify multilayer PCB?

When calculating the needs of a printed circuit board, consider the types of machines and devices your PCBs will be used in and the demands these machines/devices will place on the board circuitry. Will these PCBs be used in high-tech, complex electronics or in simpler items with minimal functions? Other things to consider are the manufacturing costs of single- and double-layer PCBs versus multilayer. If you want to have the highest capacity possible in today's circuit board technology, you will need to pay for the high manufacturing costs involved.

Lead time - the time it takes to manufacture a set of PCBs of single vs. multiple layers - is also something to consider when you order a large shipment of printed circuit boards. The lead time for one- and two-layer boards could be anywhere from 8 to 14 days, depending on the size of the board area. Then again, if you are willing to pay more or less, the lead time could be as short as five days or as long as a month. The lead time will increase, per board size, with every layer you add to the order. PCBs in the four- to 20-layer range could have a lead time of anywhere from 12 to 32 days, depending on whether you want the boards to have small or large dimensions.

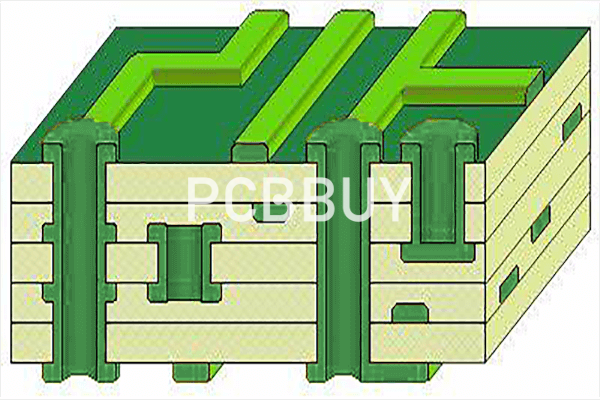

How to build multilayer PCB stackup?

Step 1: Inner layer core selection

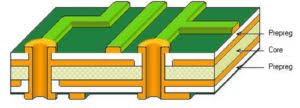

The stack-up designates the materials to be used for the manufacture of a multilayer circuit board. The build-up provides the following information:

·The copper thickness and weight

·Type of epoxy glass to be used

·Panel size

Step 2: Cleaning

The inner layers are cleaned chemically/mechanically or both to remove contaminants from the copper surface.

Step 3: Inner layer imaging

The imaging material is placed on the copper surface. It covers the desired copper circuitry and exposes the unwanted copper.

Step 4: Etch stripping

The inner layers are chemically etched to get rid of the unwanted copper. The photoresist is then stripped off to reveal the copper circuitry.

Step 5: Automated Optical Inspection

Automated optical inspection is carried out to find the flaws(shorts/opens in inner layers) that can’t be detected by the human eye.

Step 6: Oxide treatment

The exposed copper circuitry on the inner layer must be treated before lamination to improve adhesion. Improved adhesion also increases the structural strength and overall board reliability.

Step 7: Layup

Steps 1 to 6 are repeated for all the inner layers. For example, these steps will be carried for layers 2, 3, and 4, 5.
