Printed Circuit Boards (PCBs) serve as the foundation of nearly all electronic devices, and the choice of substrate plays a critical role in determining the board's electrical, thermal, and mechanical performance. This guide covers the essential factors to consider when selecting a PCB substrate, common materials available, and their applications in modern electronics.

PCB Instant Quote

1. What is a PCB Substrate?

The substrate is the base material that supports the conductive layers of a PCB. It provides mechanical stability while influencing the circuit's thermal and electrical properties. Commonly made of materials like fiberglass or resin, it is integral to ensuring the PCB meets the demands of its intended application.

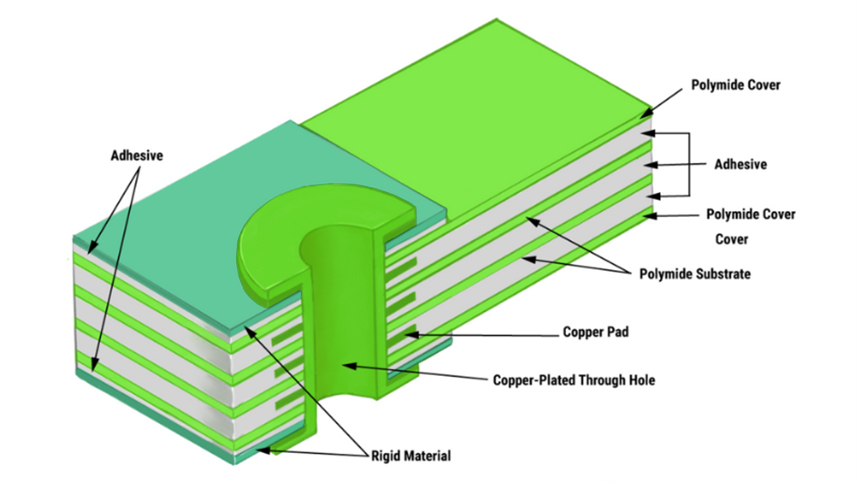

Key Components of a PCB Substrate



1. Base Material

Commonly made of fiberglass, epoxy resin, or other composite materials.

Provides durability and rigidity to the PCB structure.



2. Copper Cladding:

A thin layer of conductive copper is laminated to the substrate, creating the pathways for electrical signals.



3. Insulation:

Ensures electrical isolation between conductive layers.



2. Key Factors to Consider When Selecting a PCB Substrate

Selecting the right substrate depends on several performance requirements and environmental conditions:

a. Thermal Properties

• Thermal Conductivity (kk): Indicates how well heat is dissipated. High-performance boards often  require substrates with k>1.0k > 1.0 W/mK.

• Glass Transition Temperature (TgT_g): The temperature where the substrate transitions from rigid to      rubbery. For high-temperature applications, a TgT_g > 150°C is      recommended.

• Decomposition Temperature (TdT_d): The temperature at which the material starts to degrade. A TdT_d      > 260°C ensures durability in extreme environments.

b. Electrical Properties

• Dielectric Constant (DkD_k): Affects signal speed and impedance. For high-frequency applications,      a lower DkD_k (~2.5-3.5) is ideal.

• Dissipation Factor (DfDf): Measures dielectric losses. High-frequency PCBs benefit from a lower      DfDf (< 0.005).

c. Mechanical Properties

• Flexural Strength: Determines resistance to bending and deformation.

• Coefficient of Thermal Expansion (CTE): Important for substrates exposed to temperature cycling.

d. Environmental Conditions

• Moisture absorption, chemical resistance, and flame retardancy (measured by UL 94-V0 standards) influence the substrate's longevity.

e. Cost and Availability

While advanced materials like Rogers may outperform FR-4, they are often more expensive. Cost considerations must align with performance requirements.



3. Common PCB Substrate Materials

a. FR-4 (Fiberglass Epoxy)

• Properties: TgT_g  ~130-170°C, DkD_k ~4.2, affordable, widely used.

• Applications: Consumer electronics, low-to-medium complexity designs.

b. Polyimide

• Properties: High TgT_g  (>250°C), excellent thermal stability, DkD_k ~3.5.

• Applications: Aerospace, automotive, and high-temperature applications.

c. Rogers Material

• Properties: Low DkD_k  (~3.0), DfDf ~0.001, superior high-frequency performance.

• Applications: RF circuits, telecommunications, and microwave designs.

d. Metal-Core PCBs (MCPCBs)

• Properties: Incorporates aluminum or copper cores for improved heat dissipation.

• Applications: LED lighting, power electronics.

e. Ceramic Substrates

• Properties: High TgT_g, excellent thermal conductivity, low DkD_k.

• Applications: Military, medical, and high-power devices.

Material	TgT_g (°C)	DkD_k	Applications
FR-4	130-170	4.2	General use
Polyimide	>250	3.5	High-temp
Rogers	>280	~3.0	RF circuits
MCPCB	150-200	Variable	LED, power
Ceramic	>350	~6.0	High-power



4. Chemistry Behind PCB Substrates

The chemistry of PCB substrates is crucial to understanding their performance under various operating conditions. Substrates consist of composite materials engineered to provide mechanical stability, thermal resistance, and electrical insulation while facilitating signal transmission. Here's a closer look at the chemistry behind these materials:



1. Fiberglass and Epoxy Resin in FR-4 Substrates

Chemical Composition:

·         Fiberglass (Silicon Dioxide - SiO2SiO₂):
Fiberglass provides the mechanical strength in FR-4. It is derived from molten silica, often with additional oxides such as boron trioxide (B₂O₃) to improve durability.

SiO₂+Na₂O→Na₂SiO₃ (a glass-forming reaction)

Epoxy Resin (Thermosetting Polymer):
Epoxy resins are cured polymers derived from bisphenol A (BPA) and epichlorohydrin, which form cross-linked networks when combined with hardeners like amines. These polymers provide excellent electrical insulation.

Thermal Properties:
Epoxy resin decomposes at temperatures above its decomposition temperature (TdT_d), typically around 300°C.



2. Polyimide Substrates

Chemical Composition:

• Polyimides are polymers formed through the reaction of dianhydrides (e.g.,      pyromellitic dianhydride) and diamines (e.g., 4,4'-oxydianiline).

Properties:

• High heat  resistance (TgT_g   often above 400°C) and excellent flexibility due to the aromatic ring  structures.



3. Metal-Core PCBs

Chemistry of Core Materials:

·         Aluminum (AlAl) or Copper (CuCu):
Metal cores serve as the heat-dissipating layer. Aluminum's oxide layer, formed naturally (4Al+3O₂→2Al₂O₃), prevents corrosion and enhances thermal conductivity.

·         The interface between the metal core and the substrate is often coated with dielectric polymers, ensuring electrical insulation while maintaining thermal conductivity.



4. Ceramic Substrates

Common Ceramics Used:

·         Aluminum Oxide (Al₂O₃):
Formed through the sintering process of alumina powder. It has high thermal conductivity (20–30 W/mK) and excellent insulation properties.

2Al+3O₂→Al₂O₃

·         Aluminum Nitride (AlN):
Exhibits even higher thermal conductivity (180 W/mK) compared to Al₂O₃. Synthesized via direct nitridation:

2Al+N₂→2AlN



5. Additives and Laminates

Flame Retardants:

• Most PCB  substrates include brominated flame retardants such as tetrabromobisphenol    A (TBBPA), which decompose during high temperatures to release bromine  radicals. These radicals inhibit combustion.

Copper Lamination:

• Copper cladding on the substrate is performed via electrodeposition or  lamination, ensuring uniform thickness. The surface oxidation of copper is  prevented using an organic solderability preservative (OSP) layer or electroless plating:

  Cu+H₂SO₄+H₂O₂→CuSO₄+2H₂O



6. Properties Derived from Chemistry

Material	Thermal Conductivity (W/mK)	Dielectric Constant (DkD_k)	Decomposition Temperature (TdT_d)	Key Applications
FR-4 (Epoxy)	0.3–0.4	4.2–4.7	300°C	General-purpose   PCBs
Polyimide	0.2–0.3	3.4–4.0	400°C	Aerospace, flex   PCBs
Aluminum Oxide	20–30	9.8–10.5	>1500°C	High-frequency   RF boards
Aluminum   Nitride	180	8.0–9.0	>1500°C	LED and power   electronics



The chemistry of PCB substrates is a blend of polymer science, metallurgy, and ceramics. Each material's molecular structure, synthesis process, and interactions define its unique properties, enabling PCBs to function reliably across various industries. Understanding these chemical principles helps in the selection of substrates tailored for specific applications.



5. Applications and Case Studies

The choice of substrate varies widely based on the industry:

a. Consumer Electronics

• Use FR-4 due to cost-effectiveness.

b. Telecommunications

• Opt for Rogers for its superior      dielectric properties.

c. High-Power Electronics

• Metal-core PCBs ensure efficient heat      dissipation.

Case Study: High-Frequency Circuit

An RF design operating at 2.5 GHz required low DfDf. Switching from FR-4 to Rogers RO4350 resulted in a 20% reduction in signal loss.



6. Future Trends in PCB Substrates

As technology evolves, the demands on PCB substrates are increasing, necessitating advancements in materials to support smaller, faster, and more efficient devices. Here’s an exploration of the future trends shaping PCB substrates:



High-Frequency and High-Speed Materials

Rationale: With the rise of 5G, IoT, and high-speed communication, PCB substrates must handle frequencies exceeding 40 GHz. Traditional FR-4 materials are insufficient for these applications due to their high dielectric losses.

Key Developments:

• Low-Dielectric Materials: Substrates like PTFE (Teflon) and liquid crystal polymers (LCP) are      gaining traction due to their lower dielectric constant (DkD_k) and loss      tangent (DfD_f), improving signal integrity.

• Hybrid Substrates: Combining materials such as FR-4 and PTFE enables cost-effective      solutions for high-frequency applications.



Enhanced Thermal Management

Rationale: Modern electronics, such as LED systems, power electronics, and high-performance computing, generate substantial heat. Substrates must manage thermal loads effectively to prevent device failure.

Emerging Solutions:

• Metal-Core PCBs (MCPCBs): Substrates with aluminum or copper cores offer superior heat      dissipation.

• Advanced Ceramics: Materials like aluminum nitride (AlNAlN) and silicon carbide (SiCSiC)      are being integrated for high thermal conductivity (up to 200 W/mK).



Eco-Friendly Materials

Rationale: Sustainability is becoming a critical factor in electronics manufacturing. PCB substrates must align with environmental regulations, such as RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment).

Innovations:

• Halogen-Free Substrates: These materials eliminate brominated flame retardants, reducing  environmental impact.

• Biodegradable Substrates: Research is ongoing into bio-based polymers and fibers that can replace traditional substrates while remaining eco-friendly.



Flexible and Wearable Electronics

Rationale: The growth of wearable devices and flexible electronics requires substrates that can bend, twist, and conform to non-flat surfaces.

Advancements:

• Polyimide Films: Used in flexible PCBs, they provide excellent flexibility and      thermal stability.

• Stretchable Substrates: Materials like thermoplastic polyurethane (TPU) and conductive      elastomers are being explored for next-generation devices.



Thinner and Multi-Functional Substrates

Rationale: Miniaturization trends in devices necessitate thinner PCBs without compromising performance.

Future Directions:

• Ultra-Thin Laminates: Substrates with thicknesses as low as 50 µm are being developed for  compact designs.

• Integrated Substrates: Multi-functional substrates that combine electrical, thermal, and     structural roles reduce component count and simplify manufacturing.



Advanced Manufacturing Techniques

Rationale: Emerging manufacturing technologies are enhancing the capabilities of PCB substrates.

Notable Technologies:

• Additive Manufacturing: 3D printing of PCB substrates allows for complex geometries and      customized designs.

• Nanomaterials Integration: Incorporating graphene and carbon nanotubes into substrates improves      electrical conductivity and thermal performance.



Data-Driven Material Selection

Rationale: As simulation and modeling tools advance, selecting PCB substrates will become more precise.

Examples:

• AI and Machine Learning: Predicting material performance under specific conditions helps in      tailoring substrates to unique applications.

• Digital Twins: Virtual replicas of PCB substrates enable optimization of material      properties before physical production.



Industry-Specific Substrate Development

Rationale: Different industries require tailored substrates for optimal performance.

Examples:

• Automotive Electronics: High-reliability substrates that can withstand extreme temperatures      and vibrations.

• Aerospace Applications: Lightweight substrates with radiation-resistant properties.



Comparison of Emerging Substrate Materials

Material	Thermal Conductivity (W/mK)	Dielectric Constant (DkD_k)	Flexibility	Eco-Friendliness
PTFE	0.2–0.3	2.0–2.2	Low	Moderate
Polyimide	0.3–0.4	3.4–4.0	High	Moderate
Aluminum Nitride	180–200	8.0–9.0	Low	Low
Biodegradable Polymers	TBD	TBD	Moderate	High



The future of PCB substrates lies in innovation driven by performance requirements, sustainability goals, and advanced manufacturing techniques. Whether through the adoption of eco-friendly materials, the development of ultra-thin laminates, or the integration of high-performance ceramics, the industry continues to evolve, meeting the demands of increasingly complex electronics. These trends underscore the importance of research and collaboration in shaping the next generation of PCB substrates.

.

Conclusion

Selecting the right PCB substrate involves balancing electrical, thermal, and mechanical properties with cost considerations. Materials like FR-4 and Rogers dominate the industry due to their versatility, but emerging technologies are paving the way for innovative substrates. Understanding these factors ensures optimized performance for any PCB application.
