Printed Circuit Boards (PCBs) are the backbone of modern electronic devices, providing the necessary electrical connections between components. One critical stage in PCB fabrication is the pattern transfer process, which ensures that the designed circuitry is accurately imprinted onto the board. This article delves into the principles, methodologies, and scientific basis of PCB pattern transfer, supported by chemical equations, data, and comparisons.

PCB Instant Quote

Table of Contents



1. Introduction

2. Overview of PCB Fabrication

3. Principles of Pattern Transfer

4. Methods of Pattern Transfer

   - 4.1 Photolithography

   - 4.2 Direct Imaging

   - 4.3 Screen Printing

5. Materials Used in Pattern Transfer

6. Chemical Processes Involved

   - 6.1 Photoresist Chemistry

   - 6.2 Etching Solutions

7. Comparison of Pattern Transfer Techniques

8. Challenges and Solutions in Pattern Transfer

9. Future Trends in PCB Pattern Transfer

10. Conclusion

11. References



1. Introduction



Printed Circuit Boards (PCBs) play a crucial role in the functionality of electronic devices, providing mechanical support and electrical connectivity. The pattern transfer process in PCB manufacturing is essential for creating the conductive paths that interconnect electronic components. This article explores the intricacies of PCB pattern transfer, detailing various methods, materials, chemical processes, and the future of this technology.



2. Overview of PCB Fabrication



PCB fabrication involves multiple stages, from design and material selection to pattern transfer and final assembly. The primary steps include:



1. Design and Layout: Using Computer-Aided Design (CAD) software to create the circuit layout.

2. Substrate Preparation: Selecting and preparing the board material, typically fiberglass-reinforced epoxy resin (FR-4).

3. Pattern Transfer: Transferring the circuit pattern onto the substrate.

4. Etching: Removing unwanted copper to create the desired circuitry.

5. Drilling and Plating: Creating holes for component leads and vias, followed by plating to ensure conductivity.

6. Solder Mask and Silkscreen Application: Adding protective layers and component labels.

7. Component Assembly and Testing: Placing and soldering components, followed by testing for functionality.



3. Principles of Pattern Transfer



The pattern transfer process involves transferring the designed circuitry from a digital layout to the physical PCB substrate. The accuracy and precision of this process are crucial for the functionality of the final product. The two primary techniques for pattern transfer are additive and subtractive processes.



Additive Process



In the additive process, conductive material is deposited only where needed. This method includes techniques like electroless plating and inkjet printing. However, the subtractive process is more commonly used in PCB fabrication.



Subtractive Process



In the subtractive process, a thin PCB layer of copper covers the entire surface of the substrate, and the unwanted copper is removed through etching. The desired circuit pattern is protected by a mask during the etching process.



4. Methods of Pattern Transfer

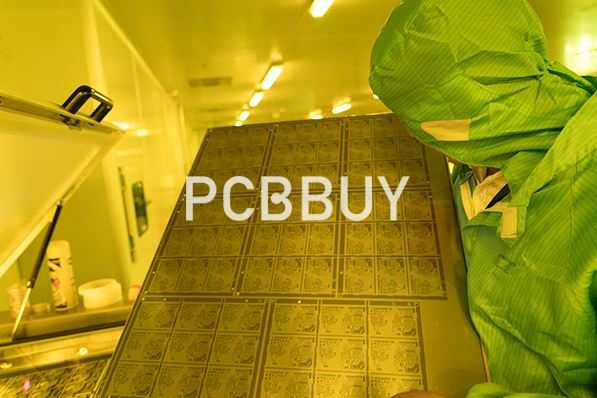

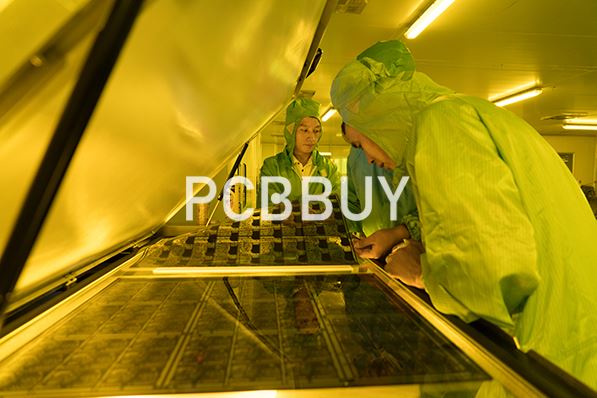

4.1 Photolithography



Photolithography is the most widely used method for pattern transfer in PCB manufacturing. This process uses light to transfer a geometric pattern from a photomask to a light-sensitive chemical (photoresist) on the PCB substrate.



Process Steps



1. Coating: Applying a layer of photoresist on the copper-clad substrate.

2. Exposure: Exposing the photoresist to ultraviolet (UV) light through a photomask.

3. Development: Developing the exposed photoresist to reveal the circuit pattern.

4. Etching: Etching away the exposed copper.

5. Stripping: Removing the remaining photoresist.



Chemical Equations



The development of photoresist involves chemical reactions, such as:



Photoresist (PR) + UV Light→Exposed PR



For positive photoresists:



Exposed PR + Developer→Soluble PR



For negative photoresists:



Exposed PR+Developer} →Insoluble PR



Advantages and Disadvantages



Advantages	Disadvantages
High   precision and resolution	Expensive   equipment
Suitable   for mass production	Sensitive   to environmental conditions





4.2 Direct Imaging



Direct imaging (DI) is a modern technique that eliminates the need for photomasks by using a computer-controlled light source to directly expose the photoresist.



Process Steps



1. Coating: Applying photoresist to the substrate.

2. Direct Imaging: Using laser or LED light to expose the photoresist according to the digital design.

3. Development: Developing the exposed photoresist.

4. Etching: Removing the unwanted copper.



Advantages and Disadvantages



Advantages	Disadvantages
Eliminates   photomask cost and alignment issues	High   initial setup cost
Faster   turnaround time	Limited   to specific photoresist types





4.3 Screen Printing



Screen printing is a simpler and cost-effective method for pattern transfer, typically used for less complex PCB designs.



Process Steps



1. Screen Preparation: Creating a screen with the desired pattern.

2. Ink Application: Applying conductive or etch-resistant ink through the screen onto the substrate.

3. Curing: Curing the ink to harden it.

4. Etching: Removing the unwanted copper.



Advantages and Disadvantages



Advantages	Disadvantages
Low   cost	Lower   resolution
Suitable   for prototypes and small batches	Not   suitable for fine-pitch components





5. Materials Used in Pattern Transfer



Photoresists



Photoresists are light-sensitive materials used to create patterns on the PCB. They can be classified into positive and negative photoresists.



Positive Photoresists: These become soluble when exposed to light.

Negative Photoresists: These become insoluble when exposed to light.



Etching Solutions



Etching solutions are chemicals used to remove unwanted copper from the PCB substrate. Common etching solutions include:



Ferric Chloride (FeCl3):



Cu + 2 FeCl₃→CuCl₂ + 2FeCl₂



Ammonium Persulfate ((NH4)2S2O8):



Cu + 2 (NH₄) ₂S}₂O₈ →CuSO₄ + 2NH₄HSO₄



Substrate Materials



Common substrate materials include:



FR-4: A glass-reinforced epoxy laminate.

CEM-1 and CEM-3: Composite epoxy materials.

Polyimide: Used for flexible PCBs.



6. Chemical Processes Involved



6.1 Photoresist Chemistry



The chemistry of photoresists involves the interaction between light and the photoactive compounds in the resist. This interaction changes the solubility of the resist in a developer solution.



6.2 Etching Solutions



Etching solutions chemically react with the copper layer, dissolving the unprotected areas. The choice of etching solution depends on the specific requirements of the PCB design.



Comparison of Etching Solutions



Etching Solution	Advantages	Disadvantages
Ferric   Chloride	Cost-effective,   widely used	Generates   hazardous waste
Ammonium   Persulfate	Cleaner   etch, less undercutting	More   expensive





7. Comparison of Pattern Transfer Techniques



Technique	Resolution	Cost	Production Volume	Turnaround Time
Photolithography	High	High	High	Moderate
Direct   Imaging	High	High	Low   to moderate	Fast
Screen   Printing	Low   to moderate	Low	Low	Fast





8. Challenges and Solutions in Pattern Transfer



Challenges



1. Alignment Issues: Ensuring precise alignment between layers.

2. Resolution Limits: Achieving fine features in complex designs.

3. Environmental Sensitivity: Controlling temperature, humidity, and light exposure.



Solutions



1. Advanced Equipment: Using high-precision alignment tools and automated systems.

2. Improved Materials: Developing higher resolution photoresists and etching solutions.

3. Controlled Environment: Implementing cleanroom conditions for sensitive processes.



9. Future Trends in PCB Pattern Transfer



1. Laser Direct Imaging (LDI): Increasing adoption for higher precision and faster turnaround.

2. Nanoimprint Lithography: Potential for even finer resolution and lower costs.

3. Environmental Sustainability: Development of eco-friendly materials and processes.



Conclusion



The pattern transfer process is a critical step in PCB manufacturing, with various methods available to suit different needs and applications. Understanding the principles, materials, and chemical processes involved is essential for producing high-quality PCBs. Continuous advancements in technology and materials are driving the evolution of this field, promising higher precision, efficiency, and sustainability.





References



1. R. C. Dorf, "The Electrical Engineering Handbook," CRC Press, 2000.

2. M. S. Makel, "Printed Circuits Handbook," McGraw-Hill, 2016.

3. T. K. Sarkar, "Handbook of Antennas in Wireless Communications," CRC Press, 2001.

4. D. Lu, "Materials for Advanced Packaging," Springer, 2008.

5. M. Pecht, "Handbook of Electronic Package Design," CRC Press, 1991.

6. H. Nakajima, "Chemical and Biological Sensors for Environmental Monitoring," Springer, 2008.
