In electronic engineering, capacitors stand as pivotal components widely employed across various circuits and devices. However, capacitors are prone to damage or decreased performance, necessitating measurement techniques to assess their condition on a circuit board. Here's a detailed guide on employing different methods and tools to gauge capacitor health on a circuit board.

If you want to order PCB product, please check and custom your order online.

1. Visual Inspection

To initially assess capacitor health, conduct a visual inspection. Check for leakages, bulging, or any signs of burning. This method only detects severely damaged capacitors, leaving visually intact capacitors without a definitive determination of their functionality.

2. Using a Multimeter for Measurement

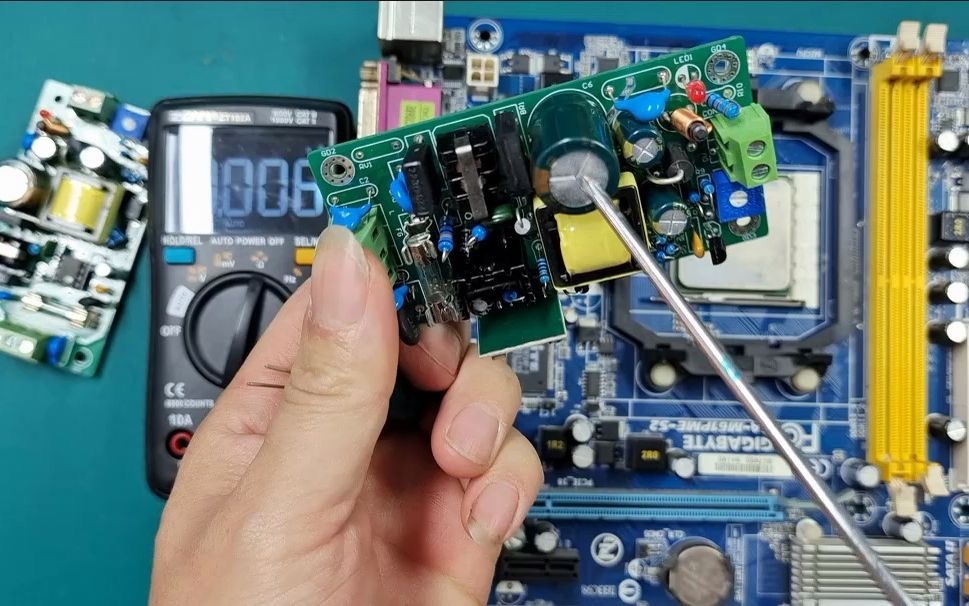

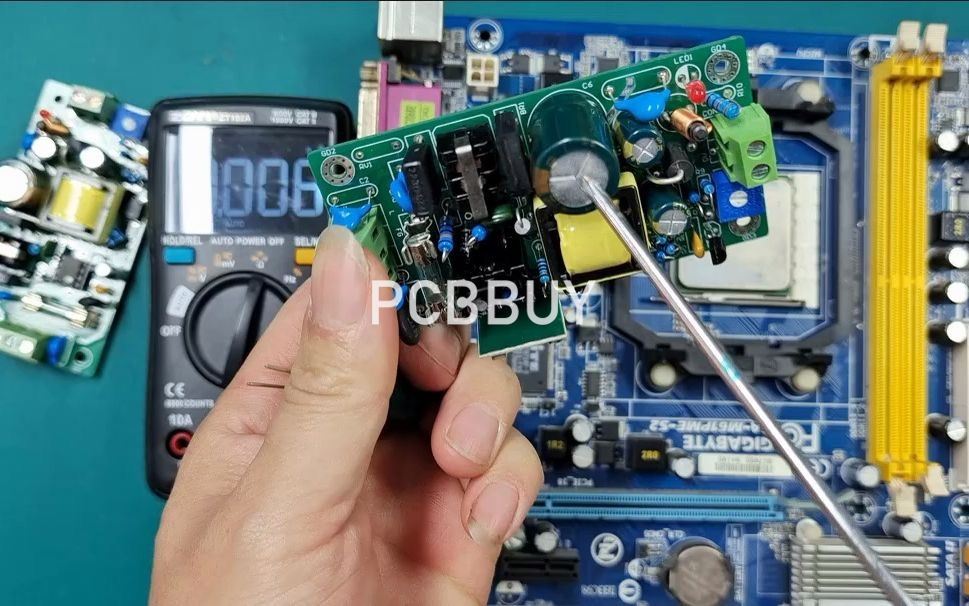

• Capacitance Measurement: Utilizing a digital multimeter's capacitance setting is a common method to judge a capacitor's condition. Set the multimeter to the capacitance measurement range, ensuring correct polarity while connecting the test leads to the capacitor's terminals. Finally, compare the measured value on the multimeter to the capacitor's rated value. A close match indicates a good capacitor, while a significant deviation or an infinite reading indicates damage.

• Resistance Measurement: In cases where specialized capacitance settings are unavailable on a multimeter, employing the resistance setting can aid in determining a capacitor's condition. Set the multimeter to the resistance setting and connect the test leads to the capacitor terminals. Observe any rapid change in readings stabilizing at a value to confirm a functional capacitor. A consistent zero or infinite reading implies damage.

3. Using an Oscilloscope for Measurement

Apart from a multimeter, an oscilloscope can be used to measure capacitor health. Connect the oscilloscope probe to the capacitor's terminals and observe the waveform. A normal and stable waveform signifies a functional capacitor, whereas abnormal or the absence of a waveform indicates damage.

4. Using an LCR Bridge for Measurement

An LCR bridge is specifically designed to measure inductance, capacitance, and resistance, providing more accurate measurements. To gauge capacitor health with an LCR bridge, follow the instrument manual to connect it to the capacitor. Choose appropriate testing frequencies and levels, initiate the measurement, and read the results. If the measurement matches or approximates the rated value, the capacitor is considered good; otherwise, it may be damaged or experiencing reduced performance.

5. Precautions

• Ensure the circuit board is powered off and capacitors are completely discharged before capacitor measurement to avoid electrical hazards.

• Exercise caution in selecting appropriate ranges and settings while using a multimeter or oscilloscope to prevent damage to instruments or components.

• Follow the instructions precisely while using an LCR bridge to avoid inaccurate measurements or instrument damage due to mishandling.

Remember to always take safety precautions and adhere to proper procedures when measuring capacitors on a circuit board.
