AI accelerators place unusually demanding requirements on the PCB power delivery network. As processors perform highly parallel computing, their power consumption can change rapidly, while core supply voltages may remain relatively low. Under these conditions, even small parasitic resistance and inductance in the PCB can contribute to voltage drop, transient noise, and power integrity problems.

For this reason, pcb power integrity design for ai accelerators should not be treated simply as a matter of adding more capacitors or increasing copper thickness. The power distribution network must be designed as a complete electrical system, including voltage regulators, power planes, ground planes, vias, decoupling capacitors, component placement, and the semiconductor package.

From a PCB manufacturing perspective, the objective is to translate the electrical requirements into a stackup and copper structure that can be fabricated consistently and inspected effectively.

PCB Instant Quote

1. Why Is Power Integrity So Important for AI Accelerators?

The power delivery path of an AI accelerator normally includes several stages:

VRM → PCB power distribution → vias → package → silicon

Each stage contributes resistance and inductance. When the accelerator experiences a rapid load change, the voltage at the device can deviate from its nominal value because the PDN cannot respond instantaneously.

A simplified relationship is:

ΔV = ΔI × Z

where ΔV is the transient voltage deviation, ΔI is the current change, and Z represents the effective impedance of the power delivery path at the relevant frequency.

Therefore, the practical goal is not simply to maximize copper. Engineers need to create a low-impedance PDN over the frequency range relevant to the processor's load transients.

Poor power integrity can contribute to:

• Supply-voltage droop or overshoot

• Excessive power-plane noise

• Ground bounce

• Electromagnetic interference

• Unstable high-speed interfaces

• Additional thermal stress

• Intermittent system failures under dynamic workloads

This is particularly important when the same PCB also carries high-speed memory, PCIe, Ethernet, or other high-speed interfaces. Power integrity and signal integrity are closely connected.

2. How Should the PCB Stackup Be Designed for Power Integrity?

A well-planned multilayer stackup provides both low-resistance current paths and low-inductance power distribution.

Power and ground planes should be positioned so that high-current paths are short and the associated return paths remain controlled. Where practical, closely coupled power/ground structures can also contribute distributed capacitance and reduce loop inductance.

However, simply adding power layers does not automatically solve the problem. Engineers should evaluate:

• Power-rail current requirements

• Copper thickness

• Plane area and geometry

• Distance between power and ground planes

• Via quantity and location

• Voltage-drop distribution

• Thermal spreading

• Interaction with high-speed signal layers

• Available layer count and manufacturing constraints

For a complex AI accelerator board, stackup planning should therefore begin before detailed routing. The power architecture, high-speed routing requirements, BGA escape, and thermal strategy need to be considered together.

3. Why Are Copper Thickness and Power Vias Important?

Copper thickness directly affects the resistance and current-carrying capability of power distribution structures. Increasing copper thickness can reduce resistance, but it also changes etching, lamination, impedance, pad geometry, and manufacturing conditions.

The correct copper thickness should therefore be determined from the actual current path rather than applying heavy copper to every layer.

For high-current sections, designers can consider:

• Wider power distribution areas

• Dedicated power planes

• Increased copper thickness where required

• Multiple parallel vias

• Short connections between VRM outputs and the accelerator

• Sufficient ground-return vias

Vias are especially important because a large current traveling through a single small via can create an unnecessary bottleneck. Parallel vias reduce the effective resistance and inductance of the vertical power path.

The same principle applies to the ground path. Increasing power-via capacity without providing an appropriate return path does not create a balanced low-impedance structure.

4. How Should Decoupling Be Integrated into the PDN?

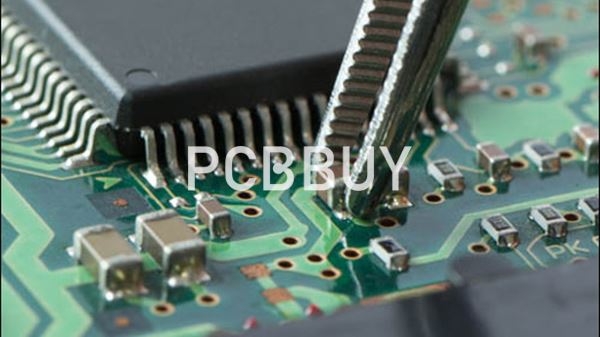

Decoupling capacitors provide local energy storage and help the PDN respond to changes in current demand.

A practical design normally uses different capacitor technologies and values to address different frequency ranges. However, capacitor selection should be based on the actual PDN impedance rather than simply following a fixed capacitor count.

Placement is equally important.

The electrical distance between the accelerator and its decoupling network includes PCB traces, vias, pads, and other interconnect structures. Longer current loops generally introduce more parasitic inductance.

Therefore, engineers should pay attention to:

• Distance between capacitors and power connections

• Power/ground via arrangement

• Current-loop area

• Via inductance

• Plane continuity

• Capacitor ESL and ESR

• Anti-resonance between capacitor groups

•


For BGA-based accelerator devices, the available PCB space around and beneath the package can become extremely limited. This is where HDI structures and appropriate via technologies can provide additional routing and power-distribution flexibility.

5. How Do HDI Structures Help AI Accelerator Power Integrity?

High-density accelerator packages can contain a large number of power and ground connections. HDI technology can help shorten electrical paths and provide more flexible connections between BGA regions and internal power structures.

For example, laser microvias can provide short vertical connections between outer layers and nearby internal layers. When properly designed, this can reduce unnecessary routing distance and help create compact power and ground structures.

PCBBUY supports first-order and second-order HDI structures, with laser blind vias down to approximately Φ0.075 mm and mechanical blind vias down to approximately Φ0.15 mm, subject to the specific stackup and manufacturing design.

The purpose is not to use HDI simply because the board is an AI-related product. HDI should be introduced where the package escape, routing density, power distribution, or electrical path length actually requires it.

6. How Should Heavy Copper Be Used in AI Accelerator PCBs?

Heavy copper can be useful when specific portions of the board must carry substantial current. However, heavy copper is not automatically the best solution for the entire PCB.

A mixed copper strategy can be more practical. High-current power layers may use thicker copper, while high-speed signal layers can retain copper thicknesses more appropriate for fine-line routing and impedance control.

PCBBUY supports heavy and partial-heavy-copper PCB structures. Its current manufacturing capability includes up to 15 oz copper on outer layers and up to 8 oz on inner layers, depending on the design and process requirements.

This provides engineers with flexibility to allocate copper according to the actual current distribution rather than making the entire board unnecessarily heavy.

Power Integrity Factor	Engineering Consideration	PCB Manufacturing Response
Power-plane resistance	Reduce unnecessary voltage drop	Appropriate copper thickness and   sufficiently large power areas
Via resistance/inductance	Avoid bottlenecks between layers	Parallel power and ground vias, HDI where   appropriate
Transient response	Reduce high-frequency PDN impedance	Proper capacitor placement and short   current loops
Thermal load	Spread heat from high-power areas	Copper planes, appropriate layer allocation   and thermal structures
BGA density	Provide sufficient power/ground connections	HDI, blind vias, and optimized via   structures
Signal interaction	Maintain clean references for high-speed   signals	Careful stackup planning and power/ground   plane continuity



7. How Can PCBBUY Support AI-Related Power-Integrity PCB Manufacturing?

Although PCBBUY primarily serves automotive, industrial control, power and electrical equipment, power supply, energy storage, new-energy, and embodied robotics applications, many of these products also involve high-power electronics, dense multilayer structures, and demanding power-distribution requirements.

For projects involving high-current or high-density PCB structures, PCBBUY can support several relevant manufacturing technologies.

Its multilayer manufacturing capability covers customized high-layer-count boards, while its HDI process supports first-order and second-order structures. For high-current applications, heavy-copper and partial-heavy-copper structures can be considered according to the current requirements.

For larger boards, the maximum supported PCB size is approximately 1000 × 600 mm. This can be useful for power electronics and system-level control boards where mechanical size and power distribution must be considered together.

For quality control, PCBBUY uses processes including AOI, flying-probe testing, and four-wire low-resistance testing. Four-wire testing is particularly useful when low-resistance measurements need to be made without the measurement error associated with ordinary two-wire resistance measurement.

The engineering review should also verify the relationship between the customer's stackup, copper thickness, via structure, impedance requirements, and actual manufacturing process before production.

8. What Should Engineers Check Before Releasing the PCB to Production?

Power integrity problems are much easier to correct during the design stage than after fabrication.

Before releasing an AI accelerator PCB for production, engineers should review:

1. Power-rail architecture — Confirm voltage levels, current requirements, and allowable transient deviation.

2. PDN impedance — Establish the required impedance target based on the device and      system specifications.

3. Power-plane geometry — Check whether current paths are sufficiently wide and continuous.

4. Via structures — Review the number, size, location, and parallel connection of      power and ground vias.

5. Decoupling layout — Confirm that capacitor placement minimizes current-loop      inductance.

6. Stackup — Verify copper thickness, dielectric thickness, reference planes,      and layer allocation.

7. Thermal design — Evaluate whether copper distribution and via structures support      heat spreading.

8. Manufacturability — Confirm that the proposed HDI, copper, hole, and lamination      structures are compatible with the PCB fabrication process.




For complex designs, the PCB manufacturer should receive the complete stackup and technical notes rather than only the Gerber files. This gives the engineering team sufficient information to identify potential process conflicts before manufacturing begins.

Conclusion

Effective pcb power integrity design for ai accelerators starts with the complete power delivery network rather than any individual component. Power planes, copper thickness, vias, decoupling capacitors, stackup architecture, thermal management, and BGA escape must work together to create a low-impedance and manufacturable power path.

There is also no universal PCB structure that should be applied to every AI accelerator. The appropriate solution depends on the processor, voltage rails, transient requirements, package structure, board dimensions, thermal conditions, and high-speed interface requirements.

For high-power and high-density applications, PCBBUY's capabilities in multilayer PCB fabrication, HDI, heavy copper, mixed-material processing, and electrical inspection provide a practical manufacturing foundation. More importantly, the proposed stackup and process structure should be reviewed against the customer's actual design requirements before production, ensuring that power-integrity objectives are translated into a PCB structure that can be manufactured consistently.

FAQ

1. What is power integrity in an AI accelerator PCB?

Power integrity refers to the ability of the PCB power delivery network to provide stable voltage and sufficient current to the accelerator under both steady-state and rapidly changing load conditions.

2. Why does an AI accelerator require a low-impedance PDN?

AI accelerators can experience rapid changes in current demand. Resistance and inductance in the power path can convert these current changes into voltage fluctuations. A low-impedance PDN helps reduce these unwanted voltage variations.

3. Does increasing copper thickness always improve power integrity?

Not necessarily. Thicker copper can reduce resistance, but it also affects PCB manufacturing, routing density, impedance, thermal behavior, and cost. Copper should be increased where the actual current requirements justify it.

4. Are HDI PCBs necessary for AI accelerator boards?

Not every AI accelerator PCB requires HDI. HDI becomes valuable when BGA density, routing space, via structure, or electrical path length creates a need for smaller and more flexible interconnections.

5. Can PCBBUY manufacture heavy-copper multilayer PCBs?

Yes. PCBBUY supports heavy and partial-heavy-copper structures, with capabilities reaching up to 15 oz on outer layers and 8 oz on inner layers, subject to the specific board structure and manufacturing requirements.

6. What should be provided for a power-integrity PCB manufacturing review?

The recommended engineering package includes Gerber files, stackup information, copper thickness, material requirements, hole and via specifications, impedance requirements, board dimensions, and relevant technical notes. For complex power-integrity designs, providing the intended power architecture and special manufacturing requirements can also help the PCB manufacturer evaluate feasibility more accurately.
