With the rapid development of high-speed electronic systems, modern PCBs are required to transmit increasingly large amounts of data with minimal signal degradation. Applications such as 5G communication equipment, AI servers, high-speed networking, automotive radar, aerospace electronics, and advanced computing systems require PCBs with excellent signal integrity and stable electrical performance.

Traditional FR-4 materials are suitable for many general applications, but as signal frequencies increase, dielectric loss and transmission loss become critical design challenges.

Selecting suitable low loss materials for high speed PCB applications helps reduce signal attenuation, improve impedance stability, and maintain reliable high-frequency performance.

A high-performance PCB requires not only advanced materials but also precise manufacturing processes, including controlled impedance, accurate stackup design, fine-line fabrication, and strict quality control.

As a professional PCB manufacturer, PCBBUY provides high-speed PCB manufacturing solutions using advanced low-loss laminates, high-TG materials, Rogers high-frequency materials, hybrid stackups, and precision impedance control technologies to meet demanding signal integrity requirements.

PCB Instant Quote

What Are Low Loss Materials for High Speed PCB?

Low loss PCB materials are specially designed laminates with reduced dielectric loss characteristics, allowing electrical signals to travel through PCB transmission lines with less energy loss.

The key properties of low-loss materials include:

Material Property	Importance for High Speed PCB
Low Dissipation Factor (Df)	Reduces dielectric signal loss
Stable Dielectric Constant (Dk)	Maintains impedance consistency
Low Moisture Absorption	Improves electrical stability
Low Coefficient of Thermal Expansion (CTE)	Enhances reliability
High Thermal Resistance	Supports high-power applications





Compared with standard FR-4, low-loss materials provide better performance at higher frequencies.



Why Standard FR-4 May Not Be Enough for High-Speed Applications？

FR-4 is widely used because of its:

• Good mechanical strength

• Cost efficiency

• Manufacturing compatibility

• Reliable performance in moderate-speed applications

However, at higher frequencies, limitations may appear.

Material Type	Advantages	Limitations
Standard FR-4	Low cost, easy processing	Higher dielectric loss at high frequencies
High-TG FR-4	Better thermal stability	Moderate signal loss
Low-Loss FR-4	Improved electrical performance	Higher material cost
PTFE/Rogers Materials	Excellent high-frequency performance	More complex processing



For applications operating at multi-gigabit speeds, selecting the right laminate becomes essential.



Key Parameters of Low Loss PCB Materials

1. Dissipation Factor (Df)

The dissipation factor represents how much electrical energy is converted into heat when signals pass through the dielectric material.

A lower Df means:

• Lower insertion loss

• Better signal transmission

• Improved high-frequency performance




Material Category	Relative Df Performance
Standard FR-4	Higher loss
Low-Loss FR-4	Reduced loss
Mid-Loss Materials	Optimized for networking
Ultra-Low Loss Materials	Best for advanced high-speed systems



2. Dielectric Constant (Dk) Stability

Dielectric constant affects signal propagation speed and impedance control.

A stable Dk helps maintain:

• Accurate impedance values

• Consistent signal timing

• Reduced signal reflection




Dk Characteristic	Impact
Stable Dk	Better signal integrity
Variable Dk	Impedance fluctuation
Lower Dk	Faster signal propagation



3. Thermal Performance

High-speed systems often generate significant heat.

Low-loss PCB materials should provide:

Thermal Property	Benefit
High Tg	Prevents PCB deformation
Low CTE	Reduces layer stress
Thermal Stability	Improves long-term reliability



PCBBUY supports high-TG PCB materials suitable for demanding industrial and communication applications.



Types of Low Loss Materials for High Speed PCB

Different applications require different material solutions.

1. Low Loss FR-4 Materials

Advanced FR-4 materials provide improved electrical performance while maintaining familiar PCB manufacturing processes.

Advantages:

• Cost-effective

• Compatible with standard PCB processes

• Suitable for high-speed digital      applications

Typical applications:

• Networking equipment

• Industrial electronics

• Consumer devices



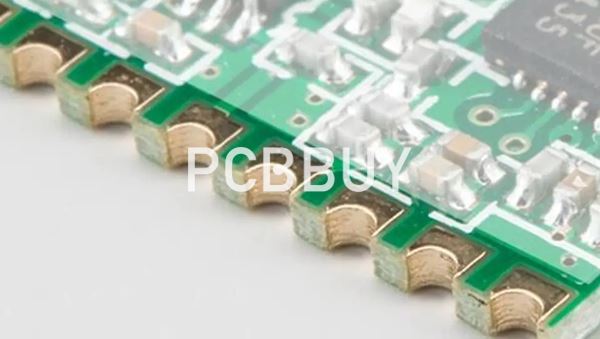

2. Rogers High Frequency Materials

Rogers materials are widely used for demanding RF and microwave applications.

Advantages:

Feature	Benefit
Low Df	Reduced signal loss
Stable Dk	Accurate RF performance
Low Moisture Absorption	Environmental stability
High Frequency Capability	Suitable for GHz applications



Applications:

• RF modules

• Radar systems

• Wireless communication equipment

PCBBUY supports Rogers high-frequency PCB manufacturing for customers requiring advanced electrical performance.



3. PTFE-Based Materials

PTFE materials provide excellent high-frequency performance.

Advantage	Application
Extremely Low Loss	Microwave circuits
Stable Electrical Properties	RF applications
High Frequency Capability	Aerospace and defense electronics



Challenges include:

• Higher processing requirements

• Higher manufacturing cost



4. Hybrid PCB Stackup Materials

Hybrid stackups combine different materials within one PCB structure.

Example:

• High-speed signal layers using low-loss materials

• Power layers using standard FR-4

Benefits:

Benefit	Result
Performance Optimization	Improved signal integrity
Cost Control	Reduced material cost
Flexible Design	Suitable for complex systems



Comparison of Common PCB Materials for High-Speed Applications

Material Type	Dk Stability	Loss Performance	Typical Applications
Standard FR-4	Medium	Moderate Loss	General electronics
High-TG FR-4	Good	Medium Loss	Industrial products
Low-Loss FR-4	Good	Low Loss	High-speed digital
Rogers Materials	Excellent	Very Low Loss	RF and microwave
PTFE Materials	Excellent	Ultra Low Loss	Advanced RF systems



How PCB Manufacturing Affects Low Loss Performance？

Choosing premium materials is only the first step. Manufacturing accuracy directly affects high-speed signal performance.



1. Controlled Impedance Manufacturing

High-speed PCB designs require accurate impedance control.

Factors affecting impedance include:

• Trace width

• Copper thickness

• Dielectric thickness

• Material Dk

• Surface roughness

PCBBUY provides controlled impedance PCB manufacturing with strict process management to maintain electrical consistency.



2. Advanced PCB Stackup Design

Proper stackup design reduces:

• Signal reflection

• Crosstalk

• Electromagnetic interference

PCBBUY supports complex multilayer PCB structures including:

• High-layer-count boards

• HDI structures

• Mixed-material stackups




Capability	PCBBUY Support
PCB Layers	4-26 layers
HDI Technology	Laser microvias, stacked vias
Material Options	High-TG, Rogers, low-loss laminates
Large PCB Size	Up to 1000mm × 600mm



3. Copper Surface Roughness Control

Copper roughness affects high-frequency signal loss due to the skin effect.

Low-loss PCB manufacturing requires:

• Suitable copper foil selection

• Controlled copper treatment

• Optimized surface finishing

This helps reduce:

• Insertion loss

• Signal attenuation

• High-frequency transmission problems



4. Precision Layer Alignment

For high-speed PCBs, small dimensional variations can affect electrical performance.

PCBBUY provides:

Manufacturing Parameter	Capability
Minimum Line Width	35μm / 1.4mil
Registration Accuracy	±25μm
Alignment Control	±12μm
Minimum Hole Size	0.1mm



Testing Methods for High-Speed PCB Material Performance

Reliable high-speed PCBs require comprehensive testing.

Testing Method	Purpose
TDR Testing	Verifies impedance performance
Material Verification	Confirms laminate properties
Microsection Analysis	Checks internal structures
Insertion Loss Testing	Measures signal attenuation
Electrical Testing	Confirms circuit reliability
AOI Inspection	Detects manufacturing defects



PCBBUY High-Speed PCB Manufacturing Capabilities

For customers developing high-performance electronic systems, PCBBUY provides:

Capability	Advantage
Rogers High-Frequency PCB Processing	Supports RF applications
Low-Loss Material Fabrication	Improves signal integrity
HDI PCB Manufacturing	Enables compact routing
High Multilayer PCB Production	Supports complex designs
Controlled Impedance Technology	Maintains electrical performance
Advanced Inspection System	Ensures manufacturing consistency



With experience in prototype and volume production, PCBBUY helps engineers achieve reliable high-speed PCB solutions.



Applications Using Low Loss High Speed PCBs

Industry	Examples
Telecommunications	5G base stations, routers
Data Centers	Servers, switches
Automotive	Radar, autonomous driving systems
Aerospace	Communication and navigation systems
AI Computing	GPU boards, accelerator systems
Medical Electronics	High-performance diagnostic equipment



Best Practices for Selecting Low Loss Materials

Recommendation	Benefit
Evaluate Signal Frequency	Select suitable Dk/Df values
Consider Thermal Requirements	Improve reliability
Optimize PCB Stackup	Reduce signal loss
Select Experienced Manufacturer	Ensure process consistency
Verify Material Data Sheets	Avoid performance mismatch



Conclusion

Selecting the right low loss materials for high speed PCB applications is critical for maintaining signal integrity, reducing transmission loss, and improving system reliability.

As electronic systems move toward higher frequencies and faster data rates, PCB performance depends on the combination of advanced laminate materials, optimized stackup design, precision manufacturing, and comprehensive testing.

With capabilities in high-frequency materials, Rogers PCB processing, HDI manufacturing, controlled impedance fabrication, and advanced quality inspection, PCBBUY provides reliable high-speed PCB solutions for next-generation electronic applications.



FAQ

1. What are low loss materials for high speed PCB?

Low loss materials are PCB laminates designed with low dielectric loss characteristics to minimize signal attenuation in high-frequency and high-speed applications.



2. Why are low loss materials important for high-speed PCB design?

They help reduce:

• Insertion loss

• Signal attenuation

• Crosstalk

• Timing errors

and improve overall signal integrity.



3. Which PCB materials are commonly used for high-speed applications?

Common choices include:

• Low-loss FR-4

• Rogers high-frequency laminates

• PTFE materials

• Hybrid material stackups



4. What is the difference between FR-4 and low-loss PCB materials?

Standard FR-4 is cost-effective but has higher dielectric loss at high frequencies. Low-loss materials provide better electrical performance for advanced high-speed systems.



5. Are Rogers materials suitable for high-frequency PCB applications?

Yes. Rogers materials are widely used in RF, microwave, radar, and communication systems because of their excellent dielectric stability and low loss characteristics.



6. How does PCB manufacturing affect high-speed performance?

Manufacturing factors such as impedance control, copper roughness, layer alignment, and stackup accuracy directly influence signal integrity.



7. What low-loss PCB capabilities does PCBBUY provide?

PCBBUY supports high-speed PCB manufacturing with Rogers materials, high-TG laminates, HDI technology, controlled impedance processing, fine-line fabrication, and advanced reliability testing.
