As PCB designs become increasingly complex and production volumes continue to grow, PCB panelization has become a critical step in modern electronics manufacturing. A well-designed panel not only improves SMT assembly efficiency but also reduces material waste, minimizes production defects, and shortens lead times.

Whether you're producing consumer electronics, automotive control systems, industrial equipment, medical devices, or AI hardware, understanding PCB panelization best practices for volume production helps ensure your design is optimized for both fabrication and assembly.

In this article, we'll discuss the fundamentals of PCB panelization, common panel design methods, key engineering considerations, and how PCBBUY supports high-volume PCB manufacturing through advanced panel engineering and intelligent production processes.

PCB Instant Quote

What Is PCB Panelization?

PCB panelization is the process of combining multiple individual circuit boards into a single manufacturing panel. The complete panel moves through fabrication, SMT assembly, inspection, and testing before the finished boards are separated.

Instead of manufacturing hundreds or thousands of individual PCBs, manufacturers process standardized panels to improve production efficiency.

Benefits of PCB Panelization

• Higher SMT assembly efficiency

• Reduced handling time

• Better production consistency

• Lower manufacturing cost

• Improved mechanical stability during assembly

• Reduced PCB warpage

• Faster automated inspection



Why Panelization Is Essential for Volume Production？

High-volume manufacturing relies heavily on automation.

Without proper panelization, manufacturers may experience:

• Low placement efficiency

• Conveyor instability

• Excessive board movement

• Increased defect rates

• Poor depanelization quality

• Higher labor costs

Proper panel design ensures the entire manufacturing process remains stable and repeatable.



Common PCB Panelization Methods

Panelization Method	Description	Typical Applications
V-Scoring (V-Cut)	V-shaped grooves allow easy separation	Rectangular PCBs with straight edges
Tab Routing (Mouse Bites)	Small routed tabs connect boards within the panel	Irregular-shaped PCBs
Combination Panel	Mix of V-Cut and Routing	Complex PCB assemblies
Breakaway Rail Panel	Adds process rails for SMT handling	Fine-pitch SMT and HDI PCBs
Array Panel	Multiple identical PCBs arranged in rows and columns	High-volume production



Each method should be selected according to PCB geometry, component layout, assembly process, and depanelization requirements.



Key Design Considerations for PCB Panelization

1. Optimize Panel Size

Panel dimensions should match fabrication equipment and SMT production lines.

Typical optimization goals include:

• Maximizing material utilization

• Minimizing waste

• Improving equipment compatibility

• Supporting automated handling

Oversized panels may warp during reflow, while undersized panels reduce production efficiency.



2. Add Process Rails

Process rails provide stable handling during SMT assembly.

Typical rail width:

• 5–10 mm

• Wider rails for large or heavy panels

Rails also provide space for tooling holes and fiducial marks.



3. Include Global and Local Fiducials

Accurate optical alignment is essential for modern SMT assembly.

Recommended practice:

Fiducial Type	Purpose
Global Fiducials	Align the entire panel
Local Fiducials	Improve placement accuracy for fine-pitch components
BGA Fiducials	Support high-density package placement



Proper fiducial placement improves placement accuracy and reduces assembly defects.



4. Reserve Tooling Holes

Tooling holes ensure precise positioning during:

• SMT printing

• Component placement

• Reflow soldering

• Functional testing

Proper tooling design improves repeatability throughout production.



5. Maintain Adequate Component Clearance

Components should not be placed too close to:

• Panel edges

• V-Cuts

• Mouse bites

• Breakaway tabs

Insufficient clearance may lead to:

• Component cracking

• Solder joint damage

• Depanelization stress



Panelization Best Practices for SMT Assembly

Design Item	Recommended Practice	Benefit
Panel Size	Match SMT equipment capability	Higher throughput
Rails	5–10 mm process rails	Stable conveyor transport
Fiducials	Global + Local	Improved placement accuracy
Tooling Holes	Symmetrical placement	Better fixture alignment
Component Edge Clearance	Maintain safe distance from panel edges	Prevent mechanical damage
Copper Balance	Uniform copper distribution	Reduced warpage



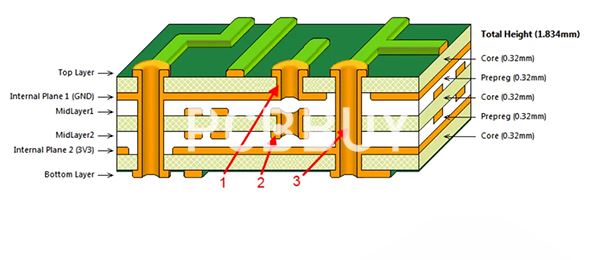

PCB Panelization for HDI and Fine-Pitch Designs

HDI PCBs require even more careful panel planning.

Special considerations include:

• Fine-pitch BGA protection

• Thin board support

• Multiple reflow cycles

• Controlled warpage

• X-ray inspection accessibility

• Accurate depanelization

PCBBUY's engineering team reviews HDI panel designs during DFM analysis to optimize manufacturing yield.



Common Panelization Defects and Solutions

Problem	Possible Cause	Recommended Solution

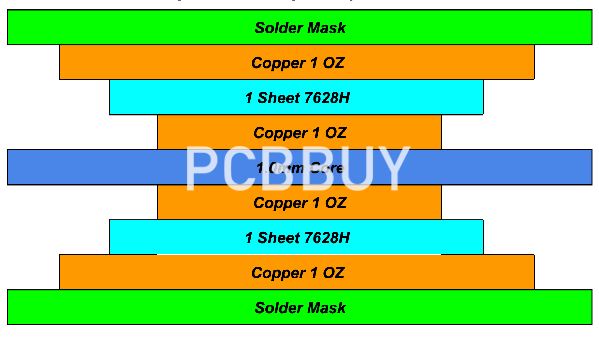

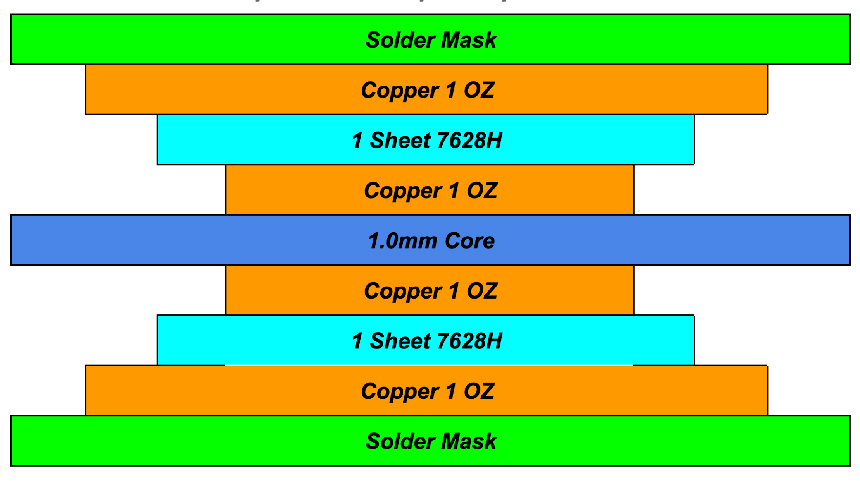

PCB Warpage	Poor copper balance	Optimize copper distribution and stack-up
Component Damage	Insufficient edge clearance	Increase keep-out area
Panel Breakage	Weak tabs or incorrect routing	Optimize tab placement
SMT Misalignment	Missing fiducials	Add global and local fiducials
Depanelization Cracks	Excessive mechanical stress	Choose appropriate V-Cut or routing method
Low Material Utilization	Inefficient panel layout	Optimize board arrangement



Early engineering review significantly reduces production risks.



How PCBBUY Optimizes PCB Panelization？

At PCBBUY, panelization is treated as an important part of Design for Manufacturability (DFM), rather than simply arranging multiple boards on a panel.

Our engineering team evaluates:

• PCB dimensions

• Board thickness

• Component distribution

• SMT process requirements

• Material utilization

• Depanelization methods

• Assembly fixture compatibility

• High-volume production efficiency

This comprehensive review helps customers achieve higher yields while reducing overall manufacturing costs.



PCBBUY's Manufacturing Capabilities

Capability	PCBBUY Specification
PCB Layers	1–26 Layers
HDI Technology	1st–3rd Order HDI
Maximum Board Size	Up to 1000 × 600 mm
Minimum Mechanical Hole	0.10 mm
Minimum Line/Space	35 μm (1.4 mil)
Copper Thickness	Up to 15 oz
SMT Assembly	Single- and Double-Sided Assembly
Placement Accuracy	High-speed automated SMT lines
Quality Inspection	SPI, AOI, X-ray Inspection, Flying Probe Test, Functional Testing
Engineering Support	DFM Review, Panelization Optimization, Stack-up Design, Assembly   Consultation



Combined with intelligent production management and advanced manufacturing equipment, PCBBUY supports everything from PCB prototypes to high-volume production with consistent quality and fast delivery.



Best Practices Before Releasing a Panelized PCB Design

Before sending your design for fabrication, verify the following:

• Select the appropriate panelization method.

• Confirm panel dimensions with your PCB manufacturer.

• Add process rails and tooling holes.

• Include global and local fiducials.

• Maintain sufficient component clearance from panel edges.

• Optimize copper distribution to reduce warpage.

• Choose a suitable depanelization  strategy.

• Request a DFM review before production.

Following these best practices helps improve manufacturing efficiency while reducing assembly defects and production costs.



FAQ

Q1: What is PCB panelization?

PCB panelization combines multiple circuit boards into a single manufacturing panel to improve fabrication, SMT assembly, inspection, and testing efficiency before the boards are separated into individual units.



Q2: Which panelization method is best for high-volume production?

It depends on the PCB design. V-scoring is ideal for rectangular boards, while tab routing is preferred for irregular shapes. Many high-volume products use a combination of both methods to balance manufacturability and ease of depanelization.



Q3: Why are process rails important?

Process rails provide mechanical support during SMT assembly, improve conveyor stability, and create space for fiducial marks and tooling holes, ensuring accurate automated placement.



Q4: How does panelization affect PCB manufacturing cost?

Well-designed panels increase material utilization, reduce machine setup time, improve automation efficiency, and minimize defects, resulting in lower overall production costs.



Q5: How does PCBBUY help optimize PCB panelization?

PCBBUY offers professional DFM engineering support for every production stage, including panel layout optimization, material utilization analysis, SMT fixture compatibility evaluation, fiducial planning, depanelization recommendations, and HDI panel engineering. By integrating panel design with fabrication and assembly expertise, PCBBUY helps customers achieve higher production yields, shorter lead times, and more cost-effective high-volume manufacturing.



Conclusion

Effective PCB panelization best practices for volume production play a vital role in improving manufacturing efficiency, reducing assembly defects, and lowering production costs. By carefully optimizing panel size, routing methods, process rails, fiducials, copper balance, and depanelization strategies, manufacturers can significantly enhance production yield and product reliability.

With advanced fabrication facilities, intelligent manufacturing systems, and experienced engineering teams, PCBBUY provides complete PCB and PCBA solutions for industries ranging from consumer electronics and industrial automation to automotive, telecommunications, medical devices, and AI computing. From 1–26 layer PCB fabrication and HDI technology to SMT assembly, SPI, AOI, X-ray inspection, functional testing, and comprehensive DFM panelization support, PCBBUY helps customers transform complex PCB designs into efficient, high-quality, volume-ready products.
