Via structure selection is one of the most important decisions in multilayer PCB design. A through-hole via may be sufficient for a conventional control board, while a dense BGA, compact power module, or HDI design may require blind vias or microvias. However, choosing the smallest or most advanced via structure does not automatically produce a more reliable PCB.

PCB Instant Quote

For high-reliability applications, the objective is to select the simplest via structure that meets the routing, electrical, mechanical, and packaging requirements while maintaining adequate manufacturing margin.

This is particularly important in automotive electronics, industrial control, power and electrical equipment, energy storage, new energy systems, and embodied robotics, where PCB designs may need to withstand thermal, mechanical, and long-term operating stresses.

1. Why Via Structure Affects PCB Reliability

A via creates a vertical electrical and mechanical connection through the PCB. Its reliability depends not only on hole size, but also on the relationship between the via, copper plating, dielectric material, target pad, layer registration, and overall stackup.

For example, a conventional plated through-hole has a continuous copper barrel extending through the board. A blind microvia, in contrast, connects only selected layers and relies heavily on the quality of laser drilling, desmear, copper deposition, plating, and the connection between the microvia and its target pad.

This means that changing the via structure also changes the manufacturing process.

A reliable design therefore starts by asking:

• How many layers actually need to be  connected?

• Is through-hole routing sufficient?

• Does the package require blind or  microvias?

• Can staggered microvias satisfy the  routing requirement?

• Is a stacked structure genuinely necessary?

• Does the selected via geometry match the dielectric thickness?

• Can the fabricator consistently manufacture the complete structure?

The last question is particularly important. A via should be selected according to the complete manufacturing process, rather than based only on its nominal diameter.

2. Comparing Common PCB Via Structures

Different via structures solve different routing problems. Their suitability depends on board density, layer connectivity, component packaging, and reliability requirements.

Via structure	Typical application	Main advantage	Main reliability consideration
Plated through-hole (PTH)	General multilayer boards, power and control circuits	Simple and well-established vertical connection	Occupies routing area across multiple layers
Blind via	Connects an outer layer to a selected inner layer	Frees routing space on unused layers	Requires controlled drilling, plating and registration
Buried via	Connects internal layers	Provides internal routing flexibility	Adds manufacturing and registration complexity
Single-level microvia	HDI and dense component breakout	Small geometry and short vertical connection	Sensitive to laser drilling, plating and target-pad quality
Staggered microvia	Multilevel HDI routing	Provides higher density without vertically stacking every microvia	Requires accurate layer-to-layer registration
Stacked microvia	Very dense HDI and fine-pitch breakout	Maximizes vertical routing density	Multiple interfaces increase process sensitivity and require careful   qualification



The important point is that there is no universally superior via structure. A simpler PTH may be preferable when routing density permits it, while HDI microvias become valuable when package escape or board-size constraints make conventional vias impractical.

3. When Should Engineers Use Through-Holes Instead of HDI Vias?

For reliability-focused designs, through-hole vias should not be dismissed simply because microvias provide higher density.

If a through-hole via can satisfy the required layer connection without interfering with routing, component placement, or impedance requirements, it can be a practical solution.

This is particularly relevant to industrial control, power electronics, energy storage, and other boards where routing density may not be as extreme as in fine-pitch package escape areas.

The decision changes when through-hole vias consume too much routing space. A large number of through-holes can restrict inner-layer routing because the via passes through layers that may not need the connection.

Blind vias or microvias can then provide a more efficient layer transition.

A useful engineering principle is:

Do not introduce HDI complexity unless the board actually benefits from it.

Reducing unnecessary sequential build-up steps can simplify manufacturing and provide more process margin.

4. Staggered vs. Stacked Microvias

The distinction between staggered and stacked microvias becomes particularly important in high-density HDI designs.

In a staggered structure, adjacent microvias are offset from one another. In a stacked structure, microvias are vertically aligned between successive layers.

Stacked microvias can provide excellent routing density, especially beneath dense component packages. However, each additional interface increases the importance of copper bonding, filling, plating, lamination, registration, and thermal-mechanical control.

For this reason, engineers should not use stacked microvias simply because the PCB fabricator supports them. If the same routing objective can be achieved with a simpler or staggered structure, the simpler construction may provide a wider manufacturing margin.

For reliability-sensitive designs, stacked structures should therefore be evaluated at the complete stackup level, rather than approved solely on the basis of individual microvia dimensions.

5. Microvia Geometry Must Match the Dielectric Structure

One common mistake is selecting a microvia diameter first and attempting to adapt the stackup afterward.

A better approach is to evaluate:

microvia diameter + dielectric thickness + target pad + layer registration + plating process

A small laser-drilled via is only useful when its depth, surrounding dielectric, target pad and plating process are compatible.

PCBBUY supports first-order and second-order HDI, with a minimum laser blind via diameter of Φ0.075 mm and a minimum mechanical blind via diameter of Φ0.15 mm.

These figures represent manufacturing capability, not recommended universal design values. Engineers should not automatically design to the smallest available geometry. Instead, the final via size should leave sufficient process margin for the actual material, stackup and application.

This approach is especially important for automotive and industrial electronics, where production consistency can be more important than achieving the smallest possible via.

6. Via Structure Selection Must Consider Copper and Thermal Stress

Via reliability is also closely related to copper structure and thermal expansion.

During PCB fabrication and assembly, copper and dielectric materials experience different dimensional changes. Repeated thermal exposure can therefore place mechanical stress on via barrels, microvia interfaces and target pads.

For power-related applications, current-carrying requirements add another consideration. A via structure designed for a low-current signal connection should not simply be transferred to a high-current power path.

PCBBUY provides heavy-copper PCB processing with outer-layer copper up to 15 oz and inner-layer copper up to 8 oz, together with electroplating uniformity of ≥97%.

This capability can be relevant when via structures must work together with high-current copper distribution, particularly in power supplies, energy storage, new energy and electrical applications.

However, thicker copper alone does not guarantee higher via reliability. The complete structure—including drilling, plating, thermal design, copper distribution and material selection—still needs to be reviewed.

7. Stackup and Material Selection Are Part of Via Reliability

Via design cannot be separated from the PCB stackup.

When HDI structures are combined with high-frequency materials, heavy copper or different dielectric systems, the fabrication process becomes more demanding. Lamination compatibility, layer registration and material dimensional stability need to be considered before the via structure is finalized.

PCBBUY supports high-frequency materials including Rogers, TUC and Isola, as well as low-Dk/low-Df material systems and asymmetric or heterogeneous mixed-material lamination.

For high-reliability applications, this allows the via structure to be evaluated together with the actual material system rather than treating the via as an isolated feature.

For example, an automotive control PCB, an energy-storage power board and a high-speed industrial control board may all use HDI technology, but their material, thermal and electrical requirements can be quite different.

8. DFM Review: Check the Complete Via Chain

Before releasing a high-reliability PCB for production, engineers should review the complete vertical interconnection path.

DFM item	What to review
Via type	Confirm whether PTH, blind, buried or microvia is actually required
Layer connection	Verify the exact start and end layers
Via geometry	Check diameter, depth and dielectric thickness
Target pad	Confirm landing geometry and registration margin
Microvia arrangement	Review single, staggered and stacked structures
Copper/plating	Match the via structure with required copper and plating processes
Stackup	Check material compatibility and lamination sequence
Registration	Review layer-to-layer alignment and pad capture
Inspection	Define appropriate AOI, electrical and dimensional inspection   requirements



This review should take place before mass production rather than after a fabrication problem occurs.

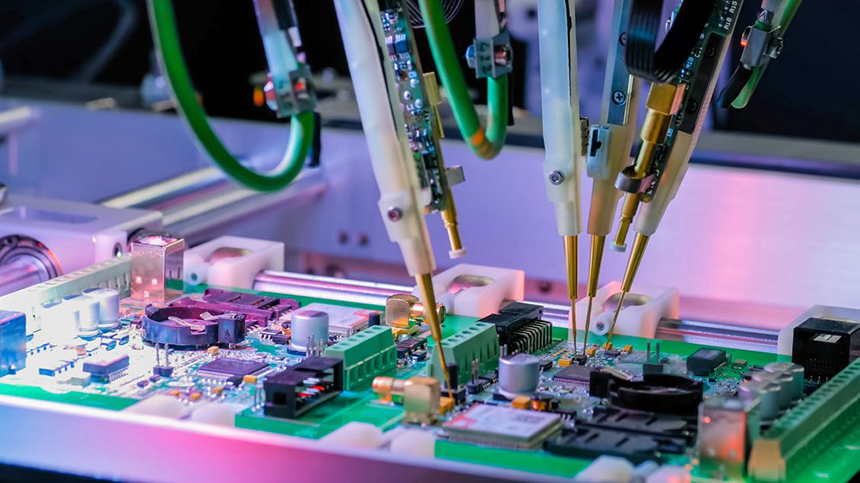

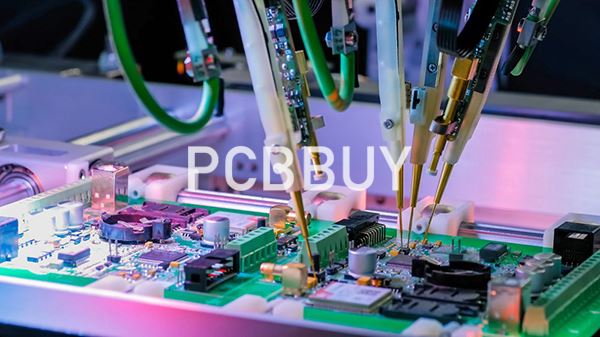

PCBBUY's production capabilities include AOI, flying-probe testing and four-wire low-resistance testing, providing multiple inspection approaches for PCB manufacturing quality control.

For complex HDI boards, the engineering review should also confirm that the Gerber data, drill files, stackup information and manufacturing notes describe the same via structure.

9. How PCBBUY Approaches High-Reliability Via Structures

For applications requiring higher routing density or more demanding electrical and mechanical structures, PCBBUY can combine HDI processing with material and copper capabilities according to the actual board construction.

Its relevant capabilities include:

• First-order and second-order HDI

• Laser blind vias down to Φ0.075 mm

• Mechanical blind vias down to Φ0.15 mm

• Heavy copper up to 15 oz on outer layers and 8 oz on inner layers

• Electroplating uniformity ≥97%

• Asymmetric and heterogeneous mixed-material lamination

• Rogers, TUC, Isola and other high-frequency material options

• AOI, flying-probe and four-wire  low-resistance testing

• PCB production for applications including automotive, industrial control, power and electrical systems,  power supply, energy storage, new energy and embodied robotics

The engineering objective is not simply to demonstrate that a small via can be manufactured. It is to select a via structure that can be integrated into the customer's complete stackup and produced consistently according to the required specifications.

Conclusion

Selecting the right via structure for a high-reliability PCB is fundamentally a system-level engineering decision.

Through-hole vias can remain an effective solution where routing density allows them. Blind and buried vias can provide additional layer connectivity, while microvias enable compact HDI routing. Staggered and stacked microvias offer different compromises between routing density and manufacturing complexity.

For reliability-critical products, the best approach is to start with the actual routing requirement, select the simplest structure that solves the problem, and then verify the geometry, material, plating, registration and stackup with the PCB manufacturer before production.

For automotive, industrial control, power, energy storage, new energy and embodied robotics applications, early DFM communication is especially valuable because via structure, copper construction and material selection can directly influence manufacturing margin and long-term product reliability.

FAQ

1. What is the most reliable PCB via structure?

There is no single via structure that is universally the most reliable. A simpler structure that satisfies the routing requirement can provide more manufacturing margin than an unnecessarily complex HDI structure. Reliability depends on geometry, materials, plating, registration, stackup and manufacturing control.

2. Are stacked microvias suitable for high-reliability PCBs?

Stacked microvias can be used in high-density designs, but they introduce additional process interfaces and therefore require careful manufacturing control. When routing requirements permit, engineers should evaluate whether a staggered or simpler structure can achieve the same result.

3. When should I use microvias instead of through-hole vias?

Microvias become useful when conventional through-hole vias consume too much routing area or cannot provide the required package breakout. They are particularly relevant to dense HDI and fine-pitch component areas.

4. What is PCBBUY's minimum laser blind via capability?

PCBBUY supports laser blind vias down to Φ0.075 mm. This is a manufacturing capability rather than a recommended design target. The appropriate via size should be determined from the actual dielectric thickness, pad geometry, stackup and reliability requirements.

5. Can heavy copper and HDI be used on the same PCB?

They can be combined when the stackup and manufacturing process are appropriately designed. PCBBUY supports outer copper up to 15 oz, inner copper up to 8 oz, as well as first- and second-order HDI. The specific construction should be reviewed according to the board's electrical and thermal requirements.

6. What information should be provided to the PCB manufacturer for via review?

The manufacturer should receive the complete layer stackup, drill information, Gerber data, via definitions, pad geometry, material requirements and relevant manufacturing notes. For complex HDI designs, clearly identifying the relationship between stacked, staggered and buried structures can significantly improve DFM communication.
