In modern electronics manufacturing, solder joint reliability is not determined by assembly processes alone. Pad design on the PCB plays a critical role in solder joint formation, mechanical strength, and long-term reliability, especially for fine-pitch and high-density assemblies.

This article explains the impact of pad design on solder joint reliability, highlights common design risks, and shows how professional manufacturers like PCBBUY ensure reliable solder joints through optimized PCB fabrication and process control.



PCB Instant Quote

Why Pad Design Is Critical to Solder Joint Reliability?

PCB pads serve as the mechanical and electrical interface between components and the circuit board. Poor pad design can lead to:

• Insufficient solder volume

• Weak intermetallic bonding

• Uneven stress distribution

• Early solder joint fatigue or cracking

As component sizes shrink and thermal cycles increase, pad geometry, size, and surface finish become decisive factors in reliability.



Key Pad Design Factors Affecting Solder Joint Reliability

1. Pad Size and Shape

Pad dimensions directly influence solder volume and wetting behavior.

• Pads that are too small → weak joints and poor mechanical strength

• Pads that are too large → solder      bridging and tombstoning

2. Pad Geometry Consistency

Inconsistent pad shapes across the PCB can cause uneven solder melting and stress imbalance during reflow.

3. Solder Mask Defined (SMD) vs Non-Solder Mask Defined (NSMD)

The choice between SMD and NSMD pads significantly affects joint strength and failure mode.



SMD vs NSMD Pads: Reliability Comparison

Pad Type	Characteristics	Reliability Impact
SMD (Solder Mask Defined)	Solder mask defines pad size	Better pad anchoring, lower risk of pad lift
NSMD (Non-Solder Mask Defined)	Copper defines pad size	Stronger solder fillet, better fatigue resistance
Recommended Use	Power components, large pads	Fine pitch BGA, CSP, QFN



PCBBUY supports tight solder mask alignment control, enabling both SMD and NSMD designs to meet IPC reliability standards.



Pad Design and Common Solder Joint Failure Modes

Pad Design Issue	Typical Failure Mode	Reliability Impact
Undersized pads	Cold solder joints	Early electrical failure
Oversized pads	Bridging, voiding	Assembly defects
Poor solder mask clearance	Insufficient wetting	Reduced joint strength
Uneven pad distribution	Stress concentration	Cracking during thermal cycling
Improper via-in-pad design	Voids and solder loss	Reduced fatigue life



Via-in-Pad Design and Solder Joint Reliability

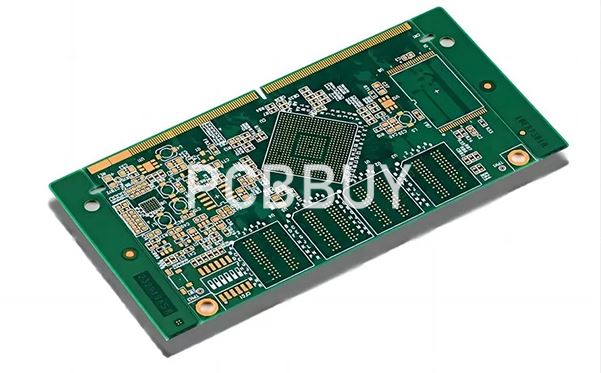

Via-in-pad structures are common in HDI and fine-pitch layouts, but they require precise fabrication control.

PCBBUY improves solder joint reliability by:

• Epoxy or copper-filled vias

• Planarization before surface finish

• Strict flatness control for ENIG and ENEPIG

These measures prevent solder wicking and ensure stable solder joint geometry.



Surface Finish Interaction with Pad Design

Pad design effectiveness is closely linked to surface finish selection.

Surface Finish	Pad Design Compatibility	Reliability Notes
ENIG	Excellent flatness	Requires strict nickel control
ENEPIG	Superior for fine pitch	Eliminates black pad risk
OSP	Sensitive to handling	Pad size control critical
HASL	Uneven surface	Not ideal for fine pitch pads



PCBBUY offers ENIG, ENEPIG, OSP, and selective finishes optimized for high-reliability pad structures.



PCBBUY Pad Fabrication and Process Control Capabilities

PCBBUY integrates pad design manufacturability checks into its PCB and PCBA workflow.

Capability Item	PCBBUY Specification
Minimum Pad Feature	Fine pitch ready
Solder Mask Alignment	±12 μm
Minimum Line / Space	35 μm (1.4 mil)
Via Filling	Epoxy / Copper filled
Surface Finish Options	ENIG, ENEPIG, OSP, HASL
Inspection Methods	AOI, X-ray, cross-section
Quality Standards	IPC Class 2 / Class 3



Through DFM review and process optimization, PCBBUY ensures pad designs translate into reliable solder joints in real production.



Best Practices for Reliable Pad Design

To maximize solder joint reliability:

• Follow IPC-recommended pad dimensions

• Use NSMD pads for fine pitch BGAs

• Avoid excessive solder mask overlap

• Apply via filling for via-in-pad designs

• Match pad design with surface finish selection

PCBBUY’s engineering team reviews these factors during pre-production analysis.



FAQ

Q1: Can pad design alone cause solder joint failure?

Yes. Even with perfect assembly parameters, poor pad design can lead to weak or unstable solder joints.



Q2: Is NSMD always better than SMD pads?

Not always. NSMD pads provide better fatigue resistance, but SMD pads offer stronger copper anchoring for certain applications.



Q3: How does pad size affect thermal cycling reliability?

Incorrect pad size causes uneven stress distribution, accelerating crack initiation during thermal expansion and contraction.



Q4: Does PCBBUY review customer pad designs before production?

Yes. PCBBUY performs DFM and solderability checks and provides optimization suggestions when risks are identified.



Q5: Which pad design is best for fine pitch BGA?

NSMD pads combined with ENEPIG surface finish and filled via-in-pad structures provide the highest reliability.



Conclusion

Pad design is a fundamental factor influencing solder joint reliability, especially in high-density and fine-pitch PCB assemblies. Proper pad geometry, solder mask definition, and surface finish selection significantly improve product lifetime and assembly yield.
