Introduction

In multilayer PCB manufacturing, lamination is one of the most critical processes affecting long-term reliability. Among all lamination-related variables, resin flow control plays a decisive role in determining bonding quality, board thickness consistency, and resistance to delamination.

As layer count increases, uncontrolled resin movement during lamination can lead to hidden defects that may not be immediately visible but can cause failures during thermal cycling or assembly. This article explains the fundamentals of resin flow control in multilayer PCB, common challenges, and how experienced manufacturers manage resin behavior through process and material expertise.

PCB Instant Quote

What Is Resin Flow in Multilayer PCB?

Resin flow refers to the movement of resin from prepreg layers during the lamination process when heat and pressure are applied. As the resin softens and flows, it fills surface roughness, copper patterns, and gaps between layers, creating a solid mechanical bond after curing.

Proper resin flow must achieve:

• Complete layer-to-layer bonding

• Uniform dielectric thickness

• Void-free internal structures

Excessive or insufficient resin flow can both compromise PCB reliability.



Why Resin Flow Control Is Critical？

Effective resin flow control directly impacts:

• Bonding strength between inner layers

• Thickness uniformity across the panel

• Electrical performance, especially impedance stability

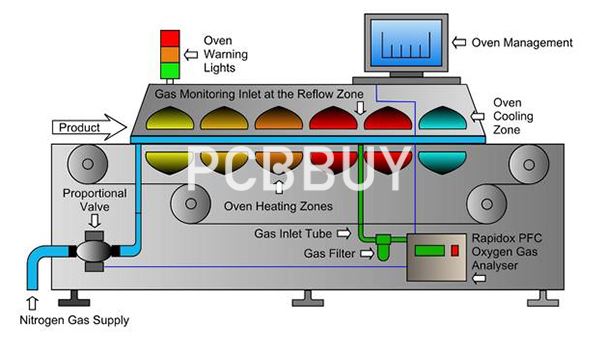

• Thermal reliability during reflow and operation

In high-layer-count or high-density PCBs, even minor resin flow imbalance can result in delamination or inner layer misalignment.



Common Resin Flow Problems in Multilayer PCB

Resin Flow Issue	Description	Potential Risk
Resin starvation	Insufficient resin filling	Weak bonding, delamination
Resin overflow	Excess resin squeeze-out	Thickness inconsistency
Voids	Trapped air or incomplete filling	Electrical and mechanical failure
Inner layer shift	Uneven resin pressure	Registration errors



These issues are often linked to copper distribution, prepreg selection, or lamination profile mismatch.



Key Factors Affecting Resin Flow Behavior

Prepreg Resin Content and Glass Style

Different prepregs offer varying resin content and flow characteristics. Low-flow, medium-flow, and standard-flow prepregs must be carefully matched to the PCB structure.

Copper Distribution and Pattern Density

Areas with heavy copper restrict resin movement, while sparse copper zones allow excessive flow. This imbalance can create uneven pressure during lamination.

Lamination Temperature and Pressure Profile

Incorrect heating rates or pressure ramps can cause premature resin flow or incomplete curing.

Layer Count and Board Thickness

Thicker, multilayer constructions require more precise control to ensure resin reaches all bonding interfaces.



Stackup Design and Resin Flow Interaction

Stackup symmetry plays a major role in resin flow stability. Unbalanced stackups may cause resin to migrate unevenly, leading to:

• Differential layer thickness

• Localized stress concentration

• Increased risk of delamination

Manufacturers often adjust prepreg types and quantities to maintain consistent resin distribution throughout the stack.



Lamination Process Control for Resin Flow

Professional PCB manufacturers use multiple techniques to manage resin flow:

• Vacuum-assisted lamination to remove trapped air

• Multi-stage press cycles to control resin softening and curing

• Optimized pressure ramps to prevent resin squeeze-out

• Precise dwell times for complete resin cross-linking

These controls are especially important for multilayer and high-reliability PCBs.



Material Selection for Improved Resin Flow Control

Material choice directly affects resin behavior:

• High-Tg prepregs improve thermal stability

• Low-flow prepregs reduce resin starvation risks in dense copper areas

• Matched resin systems prevent interlayer compatibility issues

Experienced manufacturers qualify materials before production to ensure consistent performance.



Inspection and Testing Related to Resin Flow

To verify resin flow quality, manufacturers conduct:

• Cross-section analysis

• Thickness measurements

• Void and delamination inspection

• Thermal cycling reliability tests

These inspections help identify potential lamination defects before shipment.



How PCBBUY Controls Resin Flow in Multilayer PCB Manufacturing？

PCBBUY applies strict resin flow control through:

• Prepreg material qualification and traceability

• Copper balance optimization during panel design

• Carefully controlled lamination profiles

• In-process inspection and final quality verification

This systematic approach ensures stable resin distribution and reliable multilayer PCB performance.



Design Guidelines to Support Resin Flow Control

Designers can help improve resin flow by:

• Maintaining balanced copper distribution

• Avoiding extreme copper density variation

• Coordinating stackup planning with the manufacturer

• Engaging in early-stage DFM reviews

Close collaboration significantly reduces lamination-related risks.



Conclusion

Resin flow control in multilayer PCB manufacturing is a critical factor that directly affects bonding quality, reliability, and long-term performance. Through proper material selection, stackup planning, and lamination process control, experienced manufacturers can effectively manage resin behavior and prevent hidden defects.

Choosing a PCB supplier with proven multilayer lamination expertise is essential for achieving consistent quality in complex PCB designs.



FAQ

What is resin flow control in multilayer PCB?

It refers to managing how prepreg resin moves and cures during lamination to ensure proper bonding, thickness uniformity, and defect-free internal structures.

What causes resin starvation in multilayer PCB?

Common causes include insufficient resin content, heavy copper areas restricting flow, and incorrect lamination pressure or temperature profiles.

Can poor resin flow lead to delamination?

Yes. Inadequate resin flow can weaken interlayer bonding, increasing the risk of delamination during thermal cycling or assembly.

How does copper balance affect resin flow?

Uneven copper distribution changes local pressure during lamination, causing resin to migrate unevenly and creating weak bonding areas.

How do PCB manufacturers control resin flow?

Manufacturers use qualified prepreg materials, optimized stackups, controlled lamination profiles, and cross-section inspection to manage resin flow effectively.
