Introduction

In multilayer PCB manufacturing, resin flow control during lamination is one of the most critical factors affecting board reliability, electrical performance, and mechanical stability. Improper resin flow can lead to voids, delamination, uneven dielectric thickness, and long-term reliability failures.

For high layer count, mixed copper, or thick multilayer PCBs, effective resin flow control in multilayer PCB production is a clear indicator of a manufacturer’s process maturity and engineering capability.

PCB Instant Quote

What Is Resin Flow in Multilayer PCB?

Resin flow refers to the movement of resin from prepreg layers during the lamination process under heat and pressure. As temperature increases, resin softens and flows to fill gaps between copper features, bonding inner layers and forming a solid multilayer structure after curing.

Controlled resin flow ensures:

• Complete bonding between layers

• Uniform dielectric thickness

• Absence of voids and delamination

Uncontrolled resin flow, however, can compromise PCB performance and reliability.



Role of Prepreg in Resin Flow Control

Prepreg is a fiberglass reinforcement material pre-impregnated with partially cured resin. Its resin content and flow characteristics directly influence lamination quality.

Key prepreg parameters include:

• Resin content percentage

• Flow rate and viscosity

• Glass style and thickness

Selecting appropriate prepreg types is essential to balance resin availability and flow behavior in multilayer PCB lamination.



Factors Affecting Resin Flow Control in Multilayer PCB

Several process and design factors influence resin flow:

Copper Distribution

High copper density areas restrict resin flow, while low copper areas allow excessive flow. Uneven copper distribution increases the risk of resin starvation or squeeze-out.

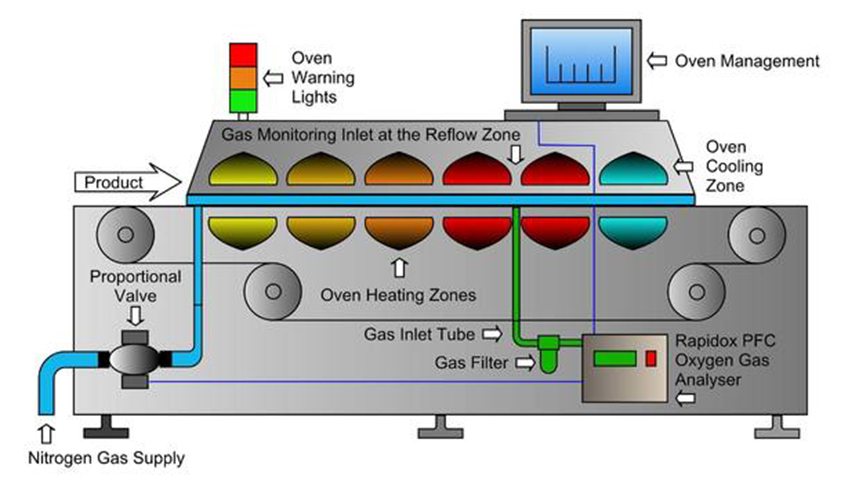

Lamination Temperature Profile

Incorrect heating rates or peak temperatures can cause premature resin curing or excessive flow.

Lamination Pressure and Time

Insufficient pressure may cause voids, while excessive pressure can force resin out of the laminate.

Layer Count and Board Thickness

Thicker boards and higher layer counts require more precise resin flow control to ensure complete bonding.



Common Resin Flow Problems in Multilayer PCB

Poor resin flow control can result in several defects:

• Resin starvation in dense copper regions

• Voids and air entrapment

• Delamination between layers

• Uneven dielectric thickness

• CAF (Conductive Anodic Filament) risks

These issues often appear after thermal cycling or long-term field use.



Resin Flow Control Techniques in PCB Manufacturing

Manufacturers use multiple methods to manage resin flow effectively:

• Careful prepreg selection based on copper density

• Copper balancing to equalize resin distribution

• Use of resin dams or thieving patterns

• Optimized lamination pressure, temperature, and dwell time

These techniques help ensure consistent lamination quality across the entire panel.



Resin Flow Control and Copper Density Balance

Copper density balance is a key design and manufacturing consideration. Large copper planes next to fine-line signal layers can disrupt resin flow if not properly managed.

Balanced copper distribution:

• Improves resin flow uniformity

• Reduces dielectric thickness variation

• Enhances mechanical stability

Manufacturers often review copper density during CAM engineering to identify potential resin flow risks.



Inspection and Verification After Lamination

To verify resin flow quality, manufacturers perform:

• Cross-section analysis to inspect resin distribution

• Dielectric thickness measurement

• Void and delamination inspection

These inspections ensure lamination integrity before proceeding to drilling and plating.



Manufacturing Capability Required for Resin Flow Control

Effective resin flow control requires:

• Advanced lamination presses with precise parameter control

• Stable process monitoring and data tracking

• Engineering expertise in multilayer PCB stackup design

• Experience with high copper and high layer count boards

These capabilities are essential for producing reliable multilayer PCBs.



Resin Flow Control in Complex Multilayer PCB Applications

Strict resin flow control is especially important for:

• High-speed digital PCBs

• Thick multilayer PCBs

• Mixed copper weight designs

• High-reliability industrial and communication equipment

In these applications, lamination quality directly affects electrical performance and product lifespan.



Conclusion

Resin flow control in multilayer PCB manufacturing is a critical process that directly impacts board quality and long-term reliability. By combining proper prepreg selection, copper balance optimization, and precise lamination control, experienced PCB manufacturers can successfully manage complex resin flow challenges.

Strong resin flow control capability reflects a manufacturer’s ability to produce stable, high-quality multilayer PCBs for demanding applications.
