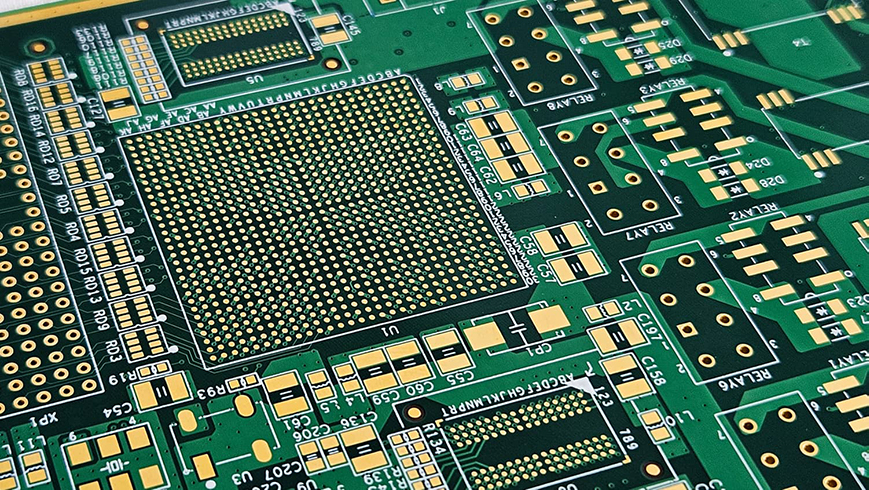

Introduction
As electronic systems demand higher routing density and improved signal integrity, PCB layer counts continue to increase. Standard single-cycle lamination becomes insufficient for complex multilayer designs. The sequential lamination process for high layer count PCBs is therefore a critical manufacturing methodology that enables reliable production of advanced multilayer boards.
This article explains sequential lamination from a manufacturing-driven perspective, focusing on process steps, technical challenges, and quality control.
What Is Sequential Lamination in PCB Manufacturing?
Sequential lamination is a PCB fabrication process where multilayer structures are built through multiple lamination cycles, rather than a single press cycle.
|
Item |
Description |
|
Lamination cycles |
Two or more press processes |
|
Layer build-up |
Inner layers added step by step |
|
Typical usage |
High layer count & HDI PCBs |
|
Key benefit |
Improved registration and yield |
Sequential lamination allows manufacturers to control complexity progressively.
Why High Layer Count PCBs Require Sequential Lamination？
|
Challenge in High Layer PCBs |
Sequential Lamination Advantage |
|
Registration accuracy |
Reduced cumulative misalignment |
|
Via complexity |
Supports buried & blind vias |
|
Resin flow control |
Smaller lamination stacks |
|
Yield stability |
Lower scrap rate |
Without sequential lamination, high-layer PCBs face significant reliability risks.
Typical Applications of Sequential Lamination
|
Application |
Reason |
|
12–24 layer PCBs |
Registration control |
|
HDI PCBs |
Blind & buried vias |
|
High-speed backplanes |
Signal integrity |
|
Aerospace & telecom |
Reliability requirements |
Sequential lamination is a necessity, not an option, in these applications.
Sequential Lamination vs Single-Cycle Lamination
|
Aspect |
Single-Cycle Lamination |
Sequential Lamination |
|
Layer count |
Low to medium |
Medium to very high |
|
Process complexity |
Low |
High |
|
Registration accuracy |
Limited |
Excellent |
|
Via structures |
Through-hole only |
Blind / buried / stacked |
|
Manufacturing yield |
Moderate |
High (for complex designs) |
Key Process Steps in Sequential Lamination
|
Step |
Manufacturing Focus |
|
Inner layer fabrication |
Imaging accuracy |
|
First lamination |
Core integrity |
|
Drilling & plating |
Via reliability |
|
Subsequent lamination |
Layer alignment |
|
Final build-up |
Structural stability |
Each step builds on the previous one, requiring tight process control.
Lamination Cycle Strategy for High Layer Count PCBs
|
Strategy Aspect |
Control Objective |
|
Press temperature |
Stable resin curing |
|
Pressure profile |
Uniform bonding |
|
Heating rate |
Prevent resin starvation |
|
Cooling rate |
Minimize internal stress |
Improper lamination profiles can cause delamination or warpage.
Resin Flow Control in Sequential Lamination
|
Risk |
Impact |
Control Method |
|
Resin starvation |
Delamination |
Optimized prepreg selection |
|
Resin overflow |
Thickness variation |
Pressure tuning |
|
Uneven distribution |
Impedance drift |
Stack symmetry |
Resin management becomes more critical with each lamination cycle.
Registration and Alignment Challenges
|
Factor |
Impact on PCB Quality |
|
Cumulative tolerance |
Layer shift |
|
Drill accuracy |
Via misalignment |
|
Optical alignment |
Inner-outer mismatch |
|
Panel stability |
Warpage risk |
High-layer PCBs demand advanced alignment systems.
Quality Control in Sequential Lamination Manufacturing
|
QC Item |
Inspection Method |
|
Layer registration |
X-ray inspection |
|
Lamination quality |
Cross-section analysis |
|
Via integrity |
Micro-section & reliability tests |
|
Electrical continuity |
100% electrical testing |
Quality assurance must be applied at each lamination stage.
Cost and Yield Considerations
|
Factor |
Impact |
|
Additional lamination cycles |
Increased processing cost |
|
Extra drilling & plating |
Longer lead time |
|
Improved yield |
Lower total scrap cost |
|
Design feasibility |
Reduced redesign risk |
Sequential lamination increases process cost but improves overall project success.
How PCBBUY Applies Sequential Lamination for High Layer Count PCBs？
PCBBUY implements sequential lamination as a controlled, repeatable manufacturing system:
|
Capability Area |
Execution |
|
Engineering review |
Lamination strategy validation |
|
Stackup planning |
Symmetry & resin balance |
|
Production control |
Dedicated multilayer lines |
|
Quality assurance |
Stage-by-stage inspection |
This ensures reliable delivery of complex high-layer PCBs from prototype to volume production.
Conclusion
The sequential lamination process for high layer count PCBs is a cornerstone of advanced PCB manufacturing. By building multilayer structures step by step, manufacturers achieve superior registration accuracy, higher yield, and improved long-term reliability.
For complex designs, sequential lamination transforms manufacturing risk into controlled execution.
