Via Stub Reduction in High Speed PCB Manufacturing
By：PCBBUY 05/27/2026 14:26

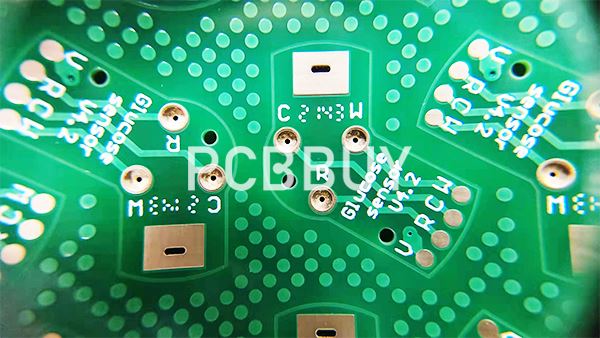

What Is a Via Stub in High-Speed PCBs?
|
Item |
Technical Explanation |
|
Definition |
A via stub is the unused portion of a plated via barrel that extends beyond the signal layer connection point. |
|
Where It Occurs |
Common in through-hole vias used in multilayer high-speed PCBs. |
|
Electrical Impact |
Via stubs behave as resonant structures that cause signal reflections and impedance discontinuities. |
|
Why It Matters |
At high data rates, even short stubs can significantly degrade signal integrity. |
Signal Integrity Issues Caused by Via Stubs
|
Issue |
Effect on High-Speed Signals |
|
Signal Reflection |
Causes eye diagram closure and timing jitter. |
|
Impedance Discontinuity |
Breaks controlled impedance paths. |
|
Insertion Loss |
Increases attenuation at high frequencies. |
|
Crosstalk Amplification |
Enhances unwanted coupling between adjacent signals. |
Common Via Stub Reduction Methods
|
Method |
Description |
Application Scope |
|
Back Drilling |
Removes unused via barrel after plating |
Most common for high-speed multilayer PCBs |
|
Blind Vias |
Eliminates stub by terminating at target layer |
HDI and compact designs |
|
Buried Vias |
Completely removes through-layer stubs |
Complex multilayer stack-ups |
|
Sequential Lamination |
Enables controlled-depth vias |
Advanced HDI architectures |
Via Stub Reduction Technologies Used by
|
Process Area |
PCBBUY Capability |
|
Controlled Back Drilling |
Depth tolerance tightly controlled to avoid over-drill or residual stubs. |
|
HDI Stack-Up Design |
Blind and buried via integration to minimize signal path discontinuities. |
|
Precision Registration |
Accurate layer alignment ensures reliable back-drill targeting. |
|
Impedance Engineering |
Via modeling combined with stack-up optimization for high-speed signals. |
|
Process Validation |
Cross-section analysis to confirm stub removal effectiveness. |
Back Drilling Process Control for High-Speed PCBs
|
Control Parameter |
Optimization Strategy |
|
Drill Depth Accuracy |
Controlled drilling depth to within tight micrometer tolerances. |
|
Reference Layer Selection |
Accurate target layer definition to prevent signal layer damage. |
|
Drill Bit Selection |
Specialized tools for clean barrel removal. |
|
Post-Drill Inspection |
Cross-section and X-ray verification of residual stub length. |
Design Considerations for Via Stub Reduction
|
Design Factor |
Best Practice |
|
Layer Stack-Up |
Route high-speed signals closer to outer layers to shorten via length. |
|
Via Diameter |
Smaller via barrels reduce parasitic capacitance. |
|
Signal Layer Transitions |
Minimize unnecessary layer changes. |
|
Impedance Targets |
Coordinate via structure with trace impedance design. |
Benefits of Effective Via Stub Reduction
|
Customer Benefit |
Business Value |
|
Improved Signal Integrity |
Cleaner eye diagrams and reduced jitter. |
|
Higher Data Rates |
Supports advanced protocols and higher frequencies. |
|
Better Impedance Control |
Stable transmission line behavior. |
|
Reduced EMI Risk |
Lower reflection-related radiation. |
|
Reliable Mass Production |
Consistent performance from prototype to volume. |
FAQ
Q1: What is via stub reduction in high-speed PCB design?
A1: It refers to techniques that minimize or eliminate unused via barrel lengths to reduce signal reflections and impedance discontinuities.
Q2: Is back drilling necessary for all high-speed PCBs?
A2: Not always. It is most critical for very high-speed or high-frequency designs where via stubs exceed acceptable electrical lengths.
Q3: How much via stub length is acceptable?
A3: Acceptable stub length depends on signal frequency, but many high-speed designs target minimal or near-zero stubs for critical nets.
Q4: Does back drilling increase PCB cost?
A4: It adds process steps, but the cost is justified for applications requiring high signal integrity and performance reliability.
Q5: How does PCBBUY ensure accurate via stub reduction?
A5: PCBBUY combines precision back drilling, accurate layer registration, impedance engineering, and cross-sectional validation to deliver stable high-speed PCB performance.
。
