What Is Aircon Pcb?-3 Tips

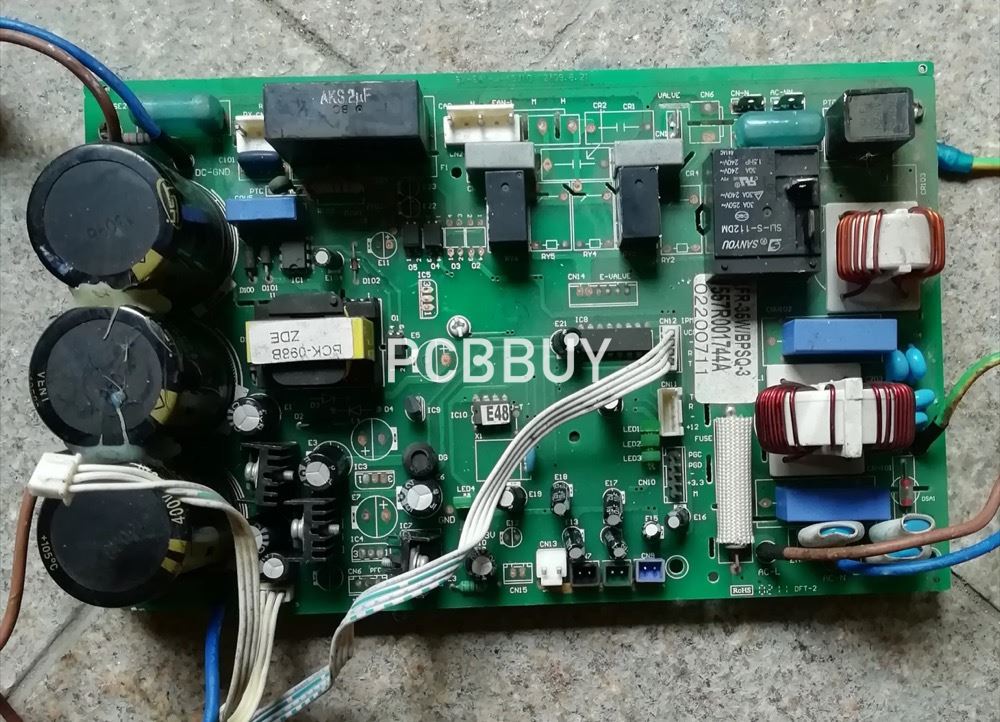

The air conditioner circuit board is one of the essential components of an air conditioner, responsible for controlling the air conditioner's circuits and electronic systems. Through the electronic components and circuit design on the circuit board, functions such as cooling, heating, air supply, and dehumidification of the air conditioner can be achieved. This article will provide a detailed introduction to the structure, working principle, and testing methods of the air conditioner circuit board.



If you want to order PCB product, please check and custom your order online.



Structure of Air Conditioner Circuit Board



The air conditioner circuit board is a vital component of an air conditioner, acting as its neural center and controlling the air conditioner's circuits and electronic systems. The air conditioner circuit board mainly consists of the following components:



Power Circuit: The power circuit is the initial stage of the air conditioner circuit board. It is responsible for receiving external power and converting 220V AC power into DC power to supply electricity to the entire circuit board. The power circuit also includes protection devices such as fuses or circuit breakers to ensure safety.

Control Circuit: The control circuit is the core part of the air conditioner circuit board, primarily composed of microcontrollers, memory, input-output interfaces, etc. The microcontroller is the heart of the control circuit, responsible for receiving signals from sensors and user inputs. It controls the operation of motor drive circuits and other peripherals based on programs, enabling various functions of the air conditioner. For example, when the indoor temperature exceeds the set value, the microcontroller controls the operation of the cooling motor drive circuit to achieve cooling.

Motor Drive Circuit: The motor drive circuit is an important part of the air conditioner circuit board, mainly composed of power driver components, motors, sensors, etc. Power driver components receive signals from the control circuit and drive the motor's operation. For instance, when the control circuit sends a cooling signal, the power driver component drives the cooling motor to operate, achieving the cooling function.

Sensor Circuit: The sensor circuit is the perceptive part of the air conditioner circuit board, primarily composed of temperature sensors, humidity sensors, air quality sensors, etc. The temperature sensor detects indoor temperature and the set value, the humidity sensor detects indoor humidity and the set value, and the air quality sensor detects indoor air quality and the set value. These sensors transmit the detected data to the control circuit, which adjusts the operation of motor drive circuits and other peripherals based on programs to achieve various functions of the air conditioner.



Working Principle of Air Conditioner Circuit Board



Power Supply:

The power supply of the air conditioner circuit board is primarily achieved through the power circuit. When the air conditioner is powered on, 220V AC power is input into the power circuit. To ensure safety, protective devices such as fuses or circuit breakers are typically installed on the air conditioner circuit board.



Control Circuit:

The control circuit of the air conditioner primarily consists of microcontrollers, memory, input-output interfaces, etc. The microcontroller receives signals from sensors and user inputs. It controls the operation of motor drive circuits and other peripherals based on programs, enabling various functions of the air conditioner. For example, when the indoor temperature exceeds the set value, the microcontroller controls the operation of the cooling motor drive circuit to achieve cooling.



Motor Drive Circuit:

The motor drive circuit of the air conditioner is mainly composed of power driver components, motors, sensors, etc. Power driver components receive signals from the control circuit and drive the motor to operate. For example, when the control circuit sends a cooling signal, the power driver component drives the cooling motor to operate, achieving the cooling function.



Sensor Circuit:

The sensor circuit of the air conditioner primarily consists of temperature sensors, humidity sensors, air quality sensors, etc. These sensors detect indoor environmental parameters such as temperature, humidity, and air quality. The detected data is transmitted to the control circuit, which then adjusts the operation of the air conditioner's components and functions based on the sensor data.



Testing Methods of Air Conditioner Circuit Board



To ensure the proper functioning of the air conditioner, it is necessary to test the air conditioner circuit board. The following are common testing methods:



Visual Inspection: Begin by visually inspecting the exterior of the air conditioner circuit board for any noticeable signs of burning, damage, or anomalies. If any irregularities are observed, the circuit board may need to be replaced.

Voltage Measurement: Use a multimeter to measure the voltage in the power circuit and ensure that it falls within the specified range. If voltage abnormalities are detected, further investigation of the power supply circuit is necessary.

Control Circuit Check: Use a multimeter to check the control circuit's functionality. If the microcontroller can control the operation of motor drive circuits and other peripherals based on signals from sensors and user inputs, the control circuit is functioning properly. If it fails to operate correctly, inspect the microcontroller and related circuitry.

Motor Drive Circuit Inspection: Use a multimeter to verify the proper operation of the motor drive circuit. If the motor drive circuit can drive the motor when signals are received from the control circuit, the motor drive circuit is working as intended. If the motor cannot be driven properly, inspect the motor drive circuit and related circuit components.

Sensor Circuit Examination: Use a multimeter to check the sensor circuit's components. If the sensors can accurately transmit data to the control circuit, the sensor circuit is functioning correctly. If data transmission is not successful, inspect the sensor circuit and related components.



In summary, the air conditioner circuit board is one of the core components of an air conditioner, and its proper functioning is crucial for the normal operation of the air conditioner. During air conditioner maintenance, testing the circuit board is necessary to identify the causes of malfunctions and undertake necessary repairs. Additionally, to ensure safety, strict adherence to relevant regulations is necessary during operation.
