What Is Gas Stoves Pcb?

By:PCBBUY 08/31/2023 14:50

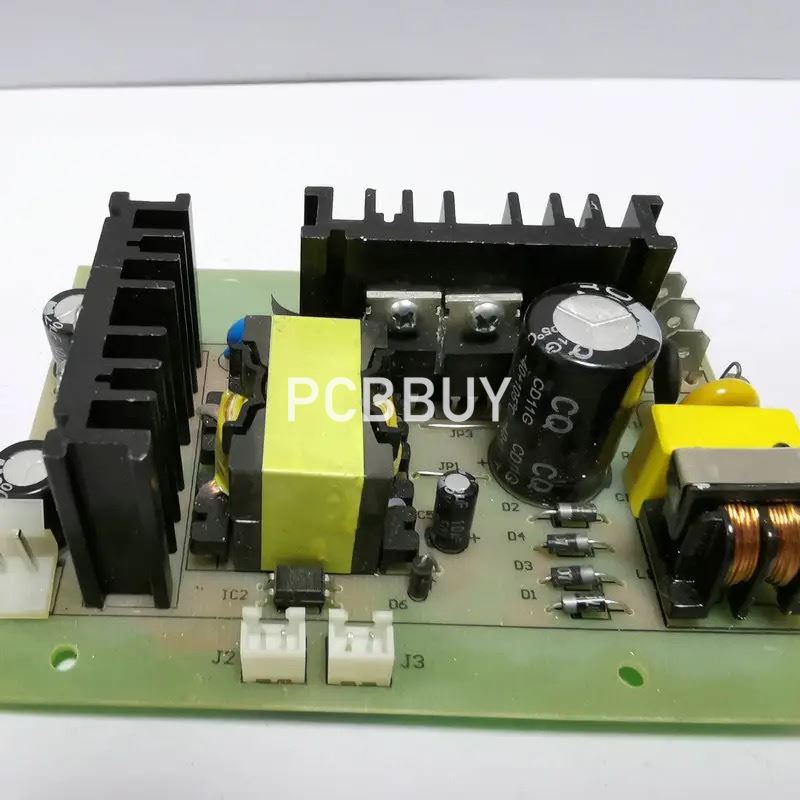

Circuit Board in Gas Stove Control System: Structure, Operation, and Importance for Gas Safety


Structure of the Circuit Board


The circuit board in a gas stove mainly consists of the following components:


Power Interface: Used to connect to the power supply, usually through a power cord linked to an external power source.

Microprocessor: Controls various operations of the gas stove, receives user input commands, and manages the gas valve's opening and closing.

Gas Control Valve: Controls the flow of gas based on instructions from the microprocessor.

Display Screen and Buttons: The display screen shows the gas stove's operational status, while buttons enable users to input commands.

Other Electronic Components: Such as capacitors, resistors, diodes, etc., for auxiliary functions on the circuit board.



Gas Stoves Pcb types

Gas Circuit Board is an electronic device used for controlling and monitoring gas pipeline systems. Depending on different needs and application scenarios, there are various types of gas circuit boards to choose from.


Among them, the double-sided circuit board is a common type, characterized by wiring on both sides of the board. It offers a higher circuit density and lower manufacturing costs, making it suitable for applications requiring a large number of wires.


Single-sided circuit board, on the other hand, features wiring on only one side of the board, while the other side remains empty. It is suitable for applications that don't require a large number of wires. Substrate circuit board involves wiring on the surface of a thicker substrate, making it suitable for applications that demand high mechanical strength and temperature resistance.


In addition, gas circuit boards offer multiple functionalities such as pressure sensors, temperature sensors, flow sensors, and alarm devices. These functionalities enable various monitoring and control measures for gas pipelines, ensuring the safe and stable delivery of gas to users' homes.


If you wish to purchase a gas stove PCB, please click here.

Gas Stoves Pcb used for

The specific usage of a gas circuit board should be referenced from the product manual or guided by professionals, as different models and brands of gas circuit boards may have varying operating methods.


Generally, a gas circuit board is installed on control and monitoring equipment for gas pipelines, enabling various monitoring and control functions for the gas pipelines. The specific usage method may vary depending on the product model and application scenario. Therefore, it is recommended to carefully read the product manual before usage or consult professionals for guidance.


When using a gas circuit board, safety precautions should be observed. These include avoiding contact with high-pressure gas pipelines, preventing mechanical damage or electromagnetic interference to the circuit board, and ensuring safe operation. Additionally, if there are any questions or anomalies during usage, the equipment should be promptly stopped and relevant personnel should be contacted for resolution.

Operation Principle of the Circuit Board


The operation process of the gas stove circuit board is as follows:


Users input operational commands using buttons, such as ignition, flame adjustment, etc.

The microprocessor receives and processes user input commands.

Based on microprocessor instructions, the gas control valve regulates the gas flow.

The display screen shows the gas stove's status, such as flame size, gas leakage, etc., as feedback from the microprocessor.

Throughout this process, the circuit board acts as the central control unit, ensuring the proper functioning of the gas stove.


Importance of the Circuit Board for Gas Safety


The gas circuit board is a critical component of the gas stove, directly impacting the safety of the entire gas system. The following highlights the importance of the circuit board for gas safety:


Fault Detection and Alarms: The circuit board continuously monitors the gas system. In case of faults or anomalies, it triggers immediate alarms and cuts off gas supply to prevent accidents from escalating.

Safety Control: The circuit board features safety controls, such as automatically closing the gas valve in the event of unexpected extinguishing to ensure user safety.

Smart Control: The circuit board can intelligently adjust flame size, offer timer functions, and other controls based on user input and stove status, enhancing the gas stove's efficiency.


Hence, the design and manufacturing of the circuit board must adhere to relevant safety standards and undergo rigorous quality testing. Users should also maintain and upkeep the circuit board during regular usage to ensure its smooth operation.
