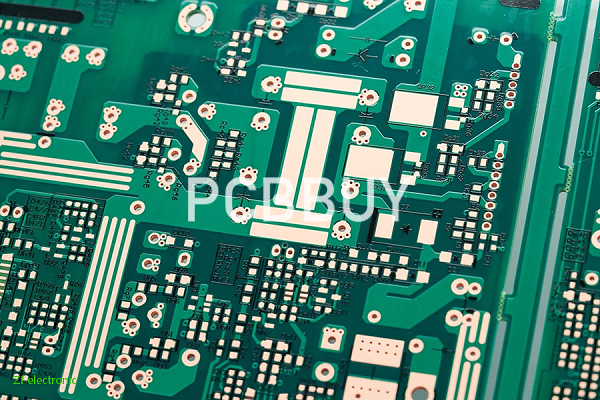

Rogers is a company that manufactures the laminate materials that are used to make circuit boards. Most circuit boards are made of a material known as FR4 (Flame Retardant level 4), which is a glass fiber / epoxy composite, with copper foil laminated on one or both sides.

PCB Instant Quote

Rogers will sell you FR-4 laminates (FR-4 core with copper laminate), they are better known for cores with better high frequency properties, such as PTFE (Teflon). They’re more expensive than fiber glass, but are less at high frequencies. This makes them be good for RF circuit boards.

In this passage, we are going to provide all the details about Rogers PCB. If you are going to search for more information of Rogers PCB, please check and read the content below.

What are the types of Rogers PCB?

Rogers PCB has various types with different resistance for harsh conditions. Plus, the Rogers PCB has two main categories. They are Thermostat and PTFE-based materials. So, we’re going to list the three major types.

Laminates

·  Woven Glass Reinforced Modified Epoxy IMS

·  PTFE Ceramic

·  Ceramic/Woven Glass UL 94 V-0 laminates/Hydrocarbon

·  Cross-Plied Woven Glass-Reinforced PTFE

·  PTFE Random Glass Fiber

·  Woven Glass/Ceramic/Hydrocarbon

·  Woven Glass Reinforced Modified Epoxy Laminates

·  Filled PTFE Composite

·  Woven Glass Reinforced PTFE Antenna Grade Laminates

Bonding Materials

·  Woven Glass / Prepreg / Hydrocarbon / Ceramic

·  Thermoset Thermally & Electrically Conductive Adhesive (TECA) Film

·  Ceramic PTFE Bondply

Metal Claddings

·  Electrodeposited Reverse Treated

·  Resistive Foil

·  Electrodeposited

·  Rolled

What are the properties of Rogers PCB?

RO3000 series: Based on ceramic-filled PTFE circuit materials, the models are: RO3003, RO3006, RO3010, RO3035 high-frequency laminates.

RT6000 series: Based on ceramic-filled PTFE circuit materials, designed for electronic circuits and microwave circuits that require high dielectric constants. The models are: RT6006 dielectric constant 6.15, RT6010 dielectric constant 10.2.

TMM series: composite materials based on ceramics, hydrocarbons, and thermosetting polymers. The models are: TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i,  and many more.

3001 Bonding Film (Thermoplastic Chloro-fluorocopolymer)

RO3000® series High-Frequency Laminates (PTFE/Ceramic)

RO3035® series High-Frequency Laminates (PTFE/Ceramic)

RO3200® series High-Frequency Laminates (PTFE/Ceramic)

RO4000® High-Frequency Laminate with TICER Foil

RO4000® laminates datasheet and fabrication guidelines: RO4003C, RO4350B

RO4400® prepreg datasheet and fabrication guidelines: RO4450B, RO4450F

RO4500® Antenna Grade Laminates for High Volume Applications

RT/duroid® 5870/5880 Glass Microfiber Reinforced PTFE Composites

RT/duroid® 6002 laminate datasheet

RT/duroid® 6006/6010 laminate datasheet

RT/duroid® 6202 laminate datasheet

RT/duroid® 6202PR laminate datasheet

TMM Thermoset laminate datasheet: TMM3, TMM4, TMM6, TMM10, TMM10i

ULTRALAM 2000 laminate datasheet

ULTRALAM 3000 LCP laminate datasheet: ULTRALAM 3850

ULTRALAM 3000 LCP Prepreg: ULTRALAM 3908
