PCB design is so complicated that numerous layers and lines are concerned in it. For engineers, it's quite difficult and boring to manually check the routing of each EMI/EMC key network. Automated tools are capable of extracting PCB design from CAD files and reporting positions violating design rules to users. Generally speaking, these software tools can allow users to predetermine design rules as limiting condition and can even create new rules under the condition of available PCB technologies and speed.

In this passage, we will provide you all the information of EMI EMC standard in PCB design process, please check and read the content below in this passage.

Wanna know PCB knowledge? Check and read for more.

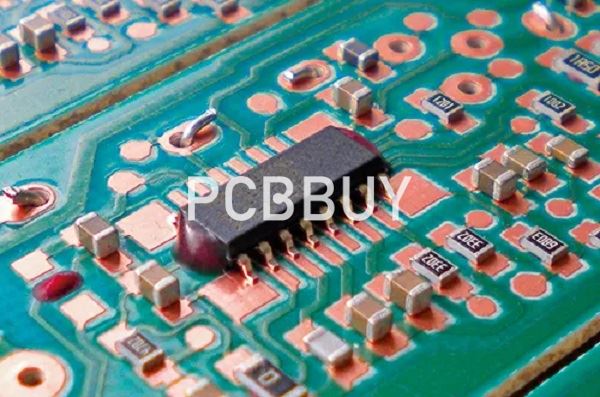

What are PCB EMC and EMI?

EMC is the abbreviation of electromagnetic compatibility, and EMC is the abbreviation of electromagnetic interference. EMC in a PCB is the circuit board's capability of working in its electromagnetic environment without emitting unbearable electromagnetic interference to other devices around.

EMI refers to the negative effects or disruption of electromagnetic waves to one device from other devices or natural sources. EMI is also called electromagnetic noise. Every PCB designer tries to follow EMC configuration standards to keep the total amount of EMI and its effects to a minimum.

What are EMC/EMI standards for PCB design?

EMC standards fall into two broad categories: regulatory standards and industry standards. The regulatory standards for your design depend on where you want to market and sell your product (not necessarily where it is designed or manufactured). Some of the earliest EMC standards were established by the U.S. Federal Communications Commission in 1979. The European Community later defined their own EMC standards, which formed the basis for future European Union standards, now known as the EMC Directive - officially named Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament (you can view the European standard here).

Conformance to industry standards is not a legal matter, but is rather more of an industry-specific matter to ensure uniformity and interoperability among electronic equipment deployed in specific industries. Effectively, industry EMC standards play the same role as other industry standards on manufacturing, assembly, performance, etc. The major industry standards organizations, including IEC, ISO, SAE, IEEE, and CISPR, also defined a number of standards geared towards specific applications or industries. While IEC and CISPR standards are enforced in Europe, IEEE standards are more popular in the U.S. In particular, the IEEE standards forms the basis for antenna calibration tests. The U.S. military defines its own MIL-STD EMC requirements, which are among the most stringent standards worldwide.

What Is the difference between EMC and EMI?

Most PCBAs are not the only electronic or electrical devices within a product. Therefore, before we drill down into single-board EMI concerns, it is helpful to have a macro or system-level understanding of the EMI issue. Just as electromagnetic energy emanates from a single component, conductor, or trace, it also radiates from the board itself into the environment; if you haven’t before, place a gauss meter close to a PCB and you will get a reading. When multiple boards are in close proximity, it becomes important to achieve electromagnetic compatibility or EMC.

EMC can be thought of as achieving an acceptable harmony or balance between electromagnetic elements so that the amount of interference is minimal or at least low enough not to significantly hamper normal operation. Unfortunately, the elimination of all EMI is not yet possible; however, obtaining EMC is. EMI, which is actually any interference from an electromagnetic source, is typically referring to interference on a single PCBA. This categorization is sufficient for investigating the issue, as the minimization of EMI on and from a circuit board contributes to the EMC of the environment in which the board operates.

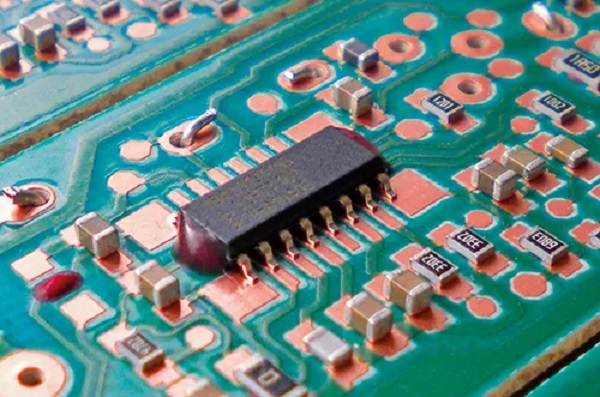

What are PCB design techniques to prevent EMI?

There are a number of different design techniques to control electromagnetic interference on your PCB design in order to make it compatible with medical equipment standards. Some of these include the following:

·  Multilayer stackups: To best shield your high speed transmission lines, a stripline layer configuration in a multilayer board is preferred. By routing your sensitive traces between ground planes, you will be able to reduce the potential for broadside crosstalk to signals on other layers, and restrict emissions from radiating from the routing.

·  Bypass caps: Place these capacitors close to every power pin on the active components of your circuit board. These caps buffer current for the ICs that are switching, which reduces their need to pull current in rapid spikes from across the board.

·  Isolate different circuitry: It is important to maintain a separation between analog and digital circuitry to keep one from influencing the other. You will also want to make sure that each area of circuitry has its own dedicated ground plane. These grounds can be joined together all at one point, but you want to minimize any chance that digital return paths end up crossing through an analog ground plane.

·  Minimize trace lengths: Long looping traces may inadvertently create antennas that could radiate noise. It is also important for signal integrity to keep your entire signal path as short as possible from the driver, through its components, and ending at its termination. You can’t avoid lengthening traces on signals that have to match their lengths, but keep all the other traces as short as possible.
