Did you know that PCB electronics has a layout similar to that of lasagna? PCBs typically consist of layers. These are, namely, Substrate or Fiberglass, Copper, Solder ask, and Silkscreen. These layers are fixed in place using lamination, industrial adhesives, and heat.

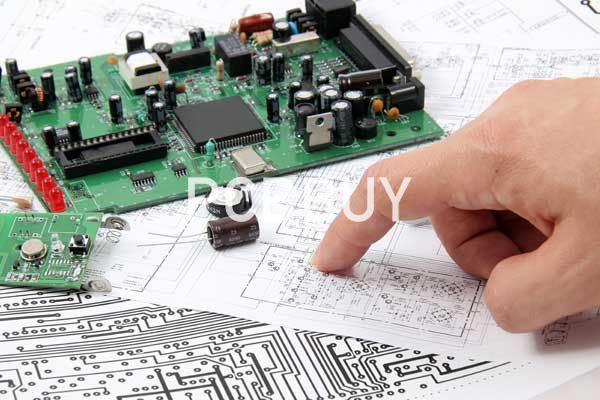

In the design stage, you display the PCB electronics layout using a schematic diagram. From there, the work progresses to convert it to an actual circuit board. Since there isn't much room on a PCB, it is up to you to plan how you will place your electric components. It is vital to ensure that you are making the best use of the available space.

In this passage, we are going to focus on the PCB electronics, please check the content below for more detailed information.

If you want to order PCB product, please check and custom your order online.

What are the PCB Electronics Characteristics?

Through Hole

Initially, the through-hole technology was widespread in manufacturing PCB electronics. For this process, different electrical components got mounted in place using leads. It was done by embedding the edges through-holes that were present on the side of the board. On the other hand, you saw the components soldered up on copper traces to set them in place.

Surface Mount

Surface mount technology first appeared in the 60s, but it started making a mark in the 80s. Nowadays, the surface mount is typically preferred for PCBs. It is far more convenient because now the electric components can be soldered directly on the surface of the board. That is because the parts have updated designs consisting of smaller ends caps and metal tabs.

What are the Common PCB Electronics Problems?

What is plating Voids?

Plating Voids occur when there is a problem with the deposition on the board. Faults in sedimentary affect the structural integrity of the hole walls. It prevents the PCB from functioning correctly. Plating voids can form when there is an uneven coating of Copper. That may occur because of rough drilling, the presence of air bubbles, and contamination.

The best to avoid the formation of Plating Voids is to ensure that the drilling process is smooth. You can do this by following the manufacturer's directions. That includes the speed of the drill and the recommended number of drill hits.

What problems can arise for not using DFM?

DFM or 'Design for Manufacturability' is an integral aspect of manufacturing PCBs. DFM analysis software can solve design problems before the manufacturing process. It also makes it easier to spot problems in the structure later on if it malfunctions. Without DFM software, it is hard to pinpoint the issues in a PCB. For one, then manufacturers and designers have to work off of intuition or guesswork.

To avoid similar problems, invest in some reputed DFM tools that are available on the market. It is bound to ease the manufacturing process and make it more efficient.

What is Inadequate Copper to edge clearance?

Copper is a common raw material for manufacturing PCBs. It is highly conductive; however, it is also soft and, therefore, prone to erosion. To prevent corrosion and isolate the Copper, we will cover some other materials instead. However, the problem arises when it is incredibly close to the edge. You will see that it's trim when the PCB is trimmed. That leaves the Copper exposed and causes the PCB to malfunction.

The solution is simple; ensure that there is enough room between the layer of Copper and the edge of the circuit board. This way, it does not run the risk of getting trimmed along with the PCB. You can set specific clearance standards using DFM software as well.

Why is Acid Trap Worrisome in PCB Electronics?

While manufacturing PCBs, PCB etching is a necessary process. Here, you remove the extra Copper from the PCB electronics. You can use several different acidic materials for this purpose. However, more often than not, this can lead to the formation of acid traps. That is problematic because the acid can corrode the Copper tracing and other components of the PCB, rendering it unusable.

The best way to avoid this is to ensure that traces are not placed at acute angles during the etching process. Also, it is essential to ensure that there is ample distance between the paths and the vias.

What are electromagnetic PCB electronics issues?

Electromagnetic issues occur when there are irregularities electromagnetic compatibility and interference. Manufacturers and designers have to make PCBs that minimalize the effects of these energy elements.

It is best to increase the ground area of the PCB to reduce noise, cross-talk, and the rate of emission to correct the problem of electromagnetic. Alternatively, you can categorize Electromagnetic Interference by separating the digital and analog components of the circuit.
