Introduction

As PCB assemblies become more compact and component density increases, inspecting solder joints hidden beneath packages has become a major challenge. Ball grid array (BGA), land grid array (LGA), and quad flat no-lead (QFN) components contain connections that cannot be fully examined using conventional optical inspection.

PCB Instant Quote

X-ray computed tomography for hidden solder joint inspection provides a nondestructive way to investigate internal solder-joint structures through three-dimensional imaging. By reconstructing multiple X-ray projections into cross-sectional views, CT can help engineers evaluate defects that may be difficult to distinguish in a conventional two-dimensional X-ray image.

For automotive electronics, industrial control, power systems, energy storage, and other reliability-sensitive applications, the appropriate inspection strategy should be selected according to package geometry, process risk, and customer acceptance requirements.

1. How Does X-Ray Computed Tomography Work?

X-ray CT captures multiple projections of an assembled PCB from different angles.

Reconstruction software combines these images to create a three-dimensional representation of the scanned region. Engineers can then examine cross-sections and internal features that may overlap in a single projection.

Unlike automated optical inspection (AOI), which relies on visible surface features, X-ray imaging can reveal solder joints beneath component bodies. CT adds depth information that can help separate overlapping structures and investigate the geometry of individual joints.

CT is particularly useful when conventional X-ray images do not provide enough information to assess a suspected defect. However, its practical resolution depends on factors such as the equipment, scan settings, material density, component geometry, and sample size. It should not be assumed that every CT system can resolve every microscopic solder defect.

2. What Defects Can CT Help Identify?

CT can help evaluate the internal geometry of solder joints and investigate potential assembly defects. The actual detection capability depends on the defect type and inspection setup.

CT is an inspection and diagnostic tool, not a universal pass/fail solution. An apparently normal three-dimensional image does not guarantee a defect-free metallurgical interface or long-term joint reliability.

3. CT vs. 2D X-Ray and AOI

Choosing the correct inspection method helps balance defect coverage, inspection time, and cost. Routine production screening and detailed failure analysis may require different approaches.

CT generally requires more acquisition and reconstruction effort than a simple 2D X-ray inspection. For this reason, it is often most valuable for complex assemblies, engineering validation, process troubleshooting, or failure analysis rather than automatically scanning every production board.

For demanding applications, a combined strategy may be appropriate: AOI for visible features, X-ray for hidden solder joints, electrical testing for continuity and isolation, and functional testing where specified.

4. How PCBBUY and PCBBUY Can Support Inspection Planning

For customers in automotive electronics, industrial control, electrical equipment, power supplies, energy storage, new energy, and embodied robotics, inspection requirements should be considered during the quotation and engineering review stages.

PCBBUY can help coordinate customer requirements with PCBBUY's PCB and PCBA manufacturing review. PCBBUY's relevant capabilities include multilayer PCB fabrication, HDI processing, SMT assembly, and inspection and electrical-testing methods such as AOI, flying-probe testing, and four-wire low-resistance testing where applicable.

PCBBUY has published information about X-ray inspection for PCB manufacturing. However, general X-ray inspection capability should not automatically be interpreted as in-house CT availability or a guarantee of a particular CT resolution. Customers requiring computed tomography should confirm the available equipment, inspection location, measurable defect size, and reporting scope with the engineering team before placing an order.

For an accurate quotation and inspection plan, provide:

• Assembly drawings, BOM, and relevant PCB  or PCBA design files.

• Package types and locations of the  hidden solder joints requiring inspection.

• The suspected defect types or the reason  CT is being requested.

• Required image format, cross-sectional  views, measurement results, and reporting details.

• Applicable acceptance criteria and any customer-specific quality requirements.

This information helps determine whether 2D X-ray is sufficient or whether CT, additional electrical tests, or destructive cross-section analysis is more appropriate. It also helps clarify inspection cost, sample quantity, and expected turnaround before production or shipment.

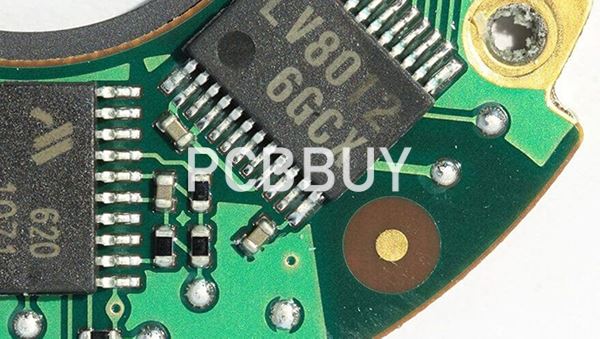

5. Quality Control and Shipment Acceptance

X-ray CT results should be evaluated against agreed acceptance criteria rather than subjective image appearance alone. For example, acceptable voiding depends on the component, solder-joint function, applicable standard, and customer specification; one universal void percentage should not be applied to every joint.

A practical inspection and shipment plan should define the following:

• Inspection scope: Identify the boards, components, and solder joints to be examined.

• Acceptance criteria: Specify the applicable standard, defect limits, and measurement      approach.

• Inspection records: Retain relevant images, findings, and reports according to the      agreed requirements.

• Disposition of anomalies: Define whether a suspected defect requires additional imaging,  electrical testing, rework evaluation, or failure analysis.

• Final release: Confirm that required inspection and electrical-test results meet the purchase specification before shipment.

CT supports internal structural evaluation, but it does not replace continuity and isolation testing, functional verification, or reliability testing where those tests are required. Shipment acceptance should be based on the complete agreed quality plan.

Conclusion

X-ray computed tomography for hidden solder joint inspection provides valuable three-dimensional information for investigating complex PCB assemblies, especially when BGA, QFN, or LGA solder joints cannot be adequately assessed using optical inspection or conventional X-ray alone.

The most effective approach is to match the inspection method to the actual defect risk and acceptance requirements. By involving PCBBUY and PCBBUY early, customers can clarify inspection scope, confirm available X-ray capabilities, and establish appropriate quality documentation and shipment criteria before production begins.

FAQ

1. What is X-ray computed tomography for hidden solder joint inspection?

It is a nondestructive inspection method that reconstructs multiple X-ray projections into three-dimensional images, allowing engineers to examine internal solder-joint structures and cross-sections.

2. Which PCB assembly components benefit most from CT inspection?

CT can be useful for assemblies containing BGA, LGA, QFN, and other components with concealed solder joints, particularly when overlapping structures make conventional X-ray images difficult to interpret.

3. Is CT better than conventional 2D X-ray?

Not in every situation. Two-dimensional X-ray is often sufficient for routine screening of common hidden-joint defects. CT is more useful when three-dimensional separation or cross-sectional analysis provides additional diagnostic value.

4. Can CT guarantee that a solder joint is reliable?

No. CT can reveal certain internal geometric defects, but it cannot independently guarantee metallurgical integrity or long-term reliability. Electrical testing, functional testing, cross-section analysis, or environmental reliability testing may also be required.

5. Does PCBBUY provide X-ray CT inspection?

PCBBUY has published information on X-ray inspection. Customers specifically requiring computed tomography should confirm whether CT equipment or an appropriate qualified inspection service is available for their project, along with its resolution, scope, and reporting capabilities.

6. What information is needed to arrange CT inspection?

Provide the assembly details, package types, suspected defect locations, required inspection coverage, acceptance criteria, and reporting expectations. These details help determine the suitable inspection method and establish a clear quality plan.
