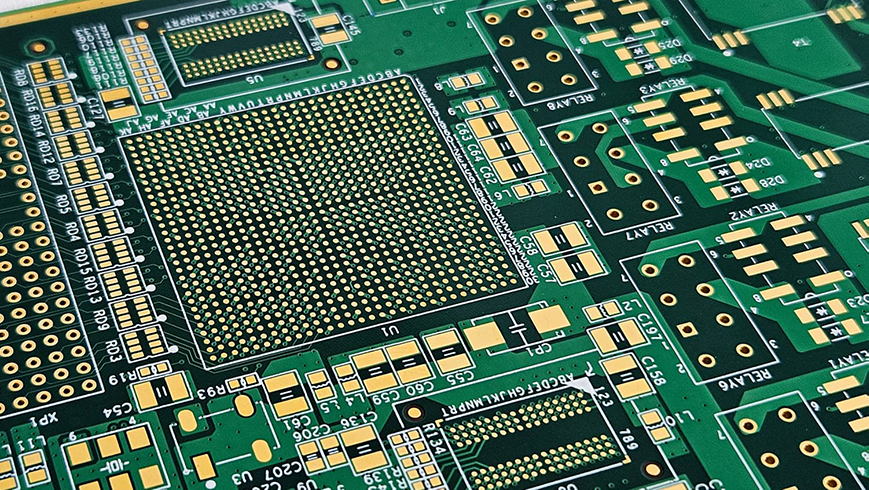

Introduction

As electronic products become smaller and more complex, high-density interconnect (HDI) PCBs must accommodate finer traces, tighter spacing, and increasingly dense component connections. Choosing the right circuit patterning method is therefore important for both manufacturability and cost.

PCB Instant Quote

Understanding mSAP vs subtractive process in HDI PCB manufacturing helps engineers determine when conventional copper etching is sufficient and when a modified semi-additive process may be worth considering. The best choice depends on the required line width and spacing, copper thickness, routing density, production volume, and the manufacturer's verified process capability.

For automotive electronics, industrial control, power systems, energy storage, new-energy equipment, and embodied robotics, process selection should balance miniaturization, electrical performance, reliability, and manufacturing cost.

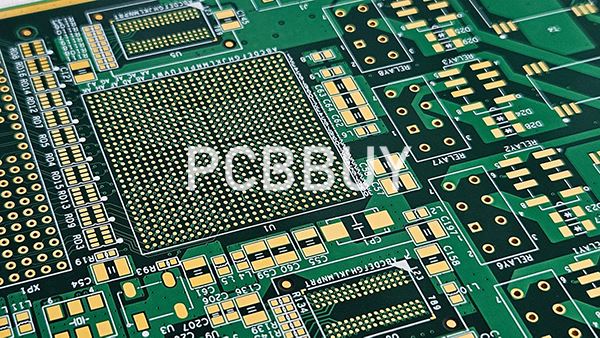

1. What Is the Subtractive Process?

The subtractive process is a widely used PCB fabrication method. A copper-clad laminate starts with a copper layer, which is coated with photoresist and exposed to a circuit pattern. After development, unwanted copper is chemically etched away, leaving the required conductive traces.

This mature process is suitable for a broad range of multilayer and HDI PCB designs. Its main advantages include established production workflows, broad material compatibility, and cost efficiency for designs that do not require extremely fine features.

However, the etching process removes copper both vertically and laterally. This side etching can produce tapered trace profiles and makes extremely fine line widths and spacing more challenging, particularly when starting copper thickness is relatively high.

2. What Is the mSAP Process?

The modified semi-additive process (mSAP) uses a different approach to form fine copper traces. Instead of removing most of a thick starting copper layer, the process generally begins with a thin copper seed layer. A patterned resist defines the circuit features, copper is plated in the exposed areas, and the resist is removed. The remaining exposed seed copper is then flash-etched away.

Because the initial copper layer is thin, less copper needs to be removed during the final etching stage. This can reduce lateral etching and support finer, more precisely defined traces.

mSAP requires careful control of seed-layer thickness, resist patterning, copper plating, and flash etching. It is not automatically the more economical option: additional process control, specialized equipment, inspection, and yield management can increase manufacturing costs.

3. mSAP vs Subtractive Process: Main Differences

There is no universal line-width threshold that separates the two processes. The achievable geometry depends on starting copper thickness, finished copper requirements, materials, process controls, and the fabricator's demonstrated capability. Engineers should compare actual design rules and manufacturing data rather than rely on a single industry-wide minimum.

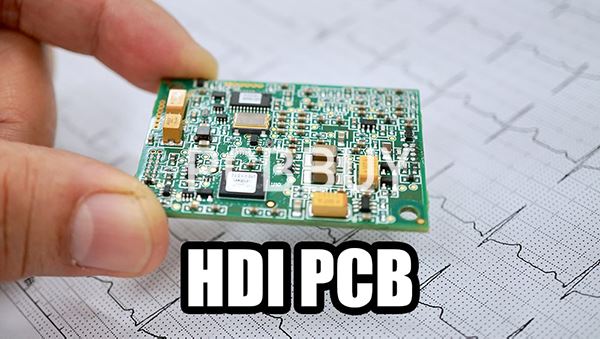

4. How to Choose the Right Process for an HDI PCB

Before selecting mSAP, review whether the design genuinely requires its fine-line advantages. If the required trace width and spacing can be manufactured reliably using conventional subtractive processing, the latter may offer a more cost-effective solution.

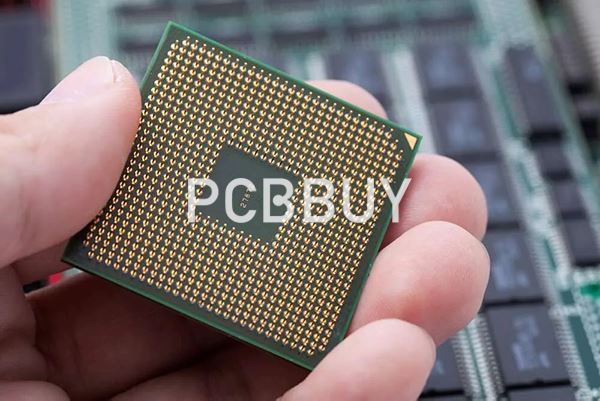

If routing density, fine-pitch component escape, or electrical constraints demand finer traces, mSAP may be worth evaluating. The decision should include a review of finished conductor geometry, copper thickness, impedance requirements, production yield, and qualification needs.

PCBBUY's published HDI manufacturing capabilities include laser direct imaging (LDI), laser-drilled microvias down to 0.075 mm, sequential lamination, and minimum trace width/spacing of 2/2 mil (approximately 50/50 μm) for specified HDI builds. These capabilities support fine-line HDI design, but they should not be interpreted as confirmation that every design is manufactured using mSAP. The appropriate patterning process must be confirmed during engineering review.

For projects in automotive, industrial control, power, power supply, energy storage, new energy, and embodied robotics, the review should also consider thermal performance, current-carrying requirements, operating environment, and the consequences of manufacturing defects. Fine-line routing is valuable only when it meets the product's actual electrical and reliability needs.

5. Quality Control and Manufacturing Acceptance

Regardless of the selected process, the finished PCB must meet the agreed dimensional, electrical, and reliability requirements. Fine-line HDI designs need particular attention to trace width and spacing, copper thickness, layer registration, via integrity, and insulation between adjacent conductors.

Before production, customers should provide complete fabrication data, including Gerber files, stackup, copper weights, finished thickness, via structures, impedance requirements, and applicable acceptance criteria. The manufacturer can then assess whether the design fits the intended process and recommend changes if necessary.

PCBBUY's published HDI quality-control information includes AOI, electrical testing, and inspection of via structures. Shipment acceptance should follow the purchase order, applicable IPC requirements, and customer specifications. Required tests and reports should be agreed upon before production; passing one inspection method does not replace all other required checks.

Conclusion

The choice between mSAP and the subtractive process depends on the required circuit geometry and the manufacturer's ability to produce it consistently. Subtractive processing remains a practical and economical option for many PCB designs, while mSAP can provide advantages when finer traces and spacing are essential.

PCBBUY supports HDI manufacturing with LDI imaging, laser microvias, sequential lamination, and published 2/2 mil line/space capability for specified builds. By sharing the complete design requirements early, customers can work with the engineering team to assess manufacturability, identify cost drivers, and determine the appropriate process before production.

FAQ

1. What is the main difference between mSAP and the subtractive process?

The subtractive process forms traces by removing unwanted copper from a copper-clad layer. mSAP plates copper in defined circuit areas over a thin seed layer, then removes the resist and exposed seed copper to create fine traces.

2. Is mSAP always better than the subtractive process for HDI PCBs?

No. mSAP is advantageous when finer circuit features are required, but it can involve higher process complexity and cost. If conventional subtractive processing meets the design requirements reliably, it may be the more economical choice.

3. Can PCBBUY manufacture 2/2 mil HDI PCBs?

PCBBUY's published HDI capability information lists minimum trace width and spacing of 2/2 mil, approximately 50/50 μm, for specified builds. Feasibility depends on the complete stackup, copper requirements, board design, and project review. This published capability alone does not establish that a particular design will use mSAP.

4. Does mSAP improve signal integrity?

mSAP can enable finer trace geometries and more controlled conductor profiles, which may help engineers meet dense-routing and impedance requirements. Actual signal integrity also depends on dielectric properties, stackup, reference planes, copper roughness, and overall layout design.

5. What information should I provide when requesting an HDI PCB quotation?

Provide the Gerber files, layer stackup, required trace width and spacing, copper weights, finished board thickness, microvia dimensions, impedance targets, material specifications, quantity, and applicable quality standards. These details help the manufacturer evaluate process feasibility and cost accurately.
