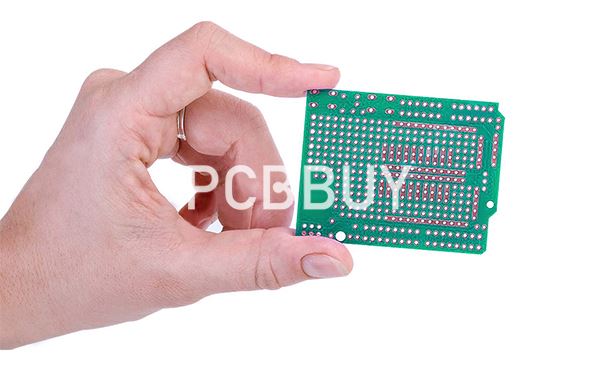

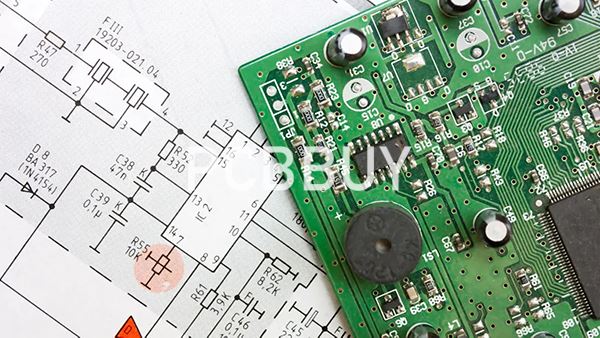

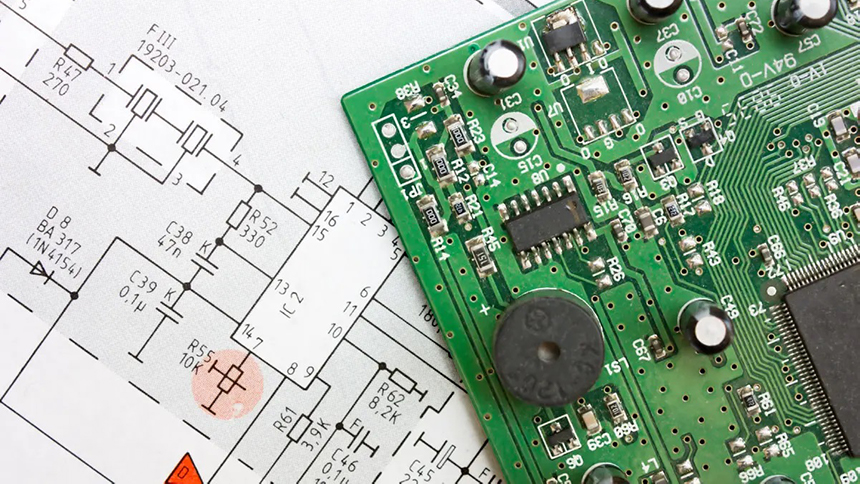

A PCB (Printed Circuit Board) material, also known as a substrate or base material, forms the foundation of an electronic circuit board. It's a flat, rigid, or flexible board onto which electronic components are mounted and interconnected to create a functional electronic device. PCBs are widely used in electronic devices like smartphones, computers, appliances, automotive systems, and more.

what is printed circuit board materials?

Printed Circuit Board (PCB) materials can be divided into two parts: substrate materials and conductive layer materials. The substrate material forms the foundational framework of the PCB board, primarily providing support and stability. Common substrate materials include fiberglass cloth, epoxy resin, polyimide, and more. These materials possess high strength and corrosion resistance, ensuring the stability and durability of the PCB board.

If you want to order PCB product, please check and custom your order online.

The conductive layer material is copper foil, responsible for interconnecting the circuit components and enabling proper circuit functionality. Copper foil exhibits excellent conductivity and ductility, meeting the design requirements of various complex circuits. By selecting appropriate substrate and conductive layer materials, it is possible to produce high-quality, high-performance PCB boards, widely utilized in electronics, communication equipment, automotive industries, and other fields.

what material are pcb boards made of?

A PCB board mainly consists of an insulating layer made of polymer synthesized resin and reinforcement materials, along with copper foil and adhesive.

The insulating layer serves as the substrate, while the copper foil is the conductive material used for the circuitry. The adhesive is employed to bond the copper foil and the insulating layer together. Additionally, PCB boards also incorporate materials such as curing agents, solder resist inks, and printing inks to enhance their mechanical properties, insulation performance, and high-temperature resistance.

PCB boards are typically made of several different materials, each serving a specific purpose in the construction and functionality of the board. The main materials used in PCB manufacturing include:

Substrate Materials:

FR-4 (Flame Retardant-4): This is the most commonly used substrate material for PCBs. It's a fiberglass-reinforced epoxy laminate that provides good mechanical strength, electrical insulation, and flame resistance.

Polyimide (PI): Polyimide-based substrates are known for their high-temperature resistance and flexibility. They are commonly used in applications where flexibility is required, such as in flexible PCBs.

Rigid-Flex Materials: These combine rigid substrates like FR-4 with flexible polyimide materials, allowing for both rigidity and flexibility in the same board.

Metal Core Materials: For boards that need efficient heat dissipation, metal core materials like aluminum are used as the substrate.

Conductive Layer Materials:

Copper Foil: Copper is the most commonly used material for the conductive traces and planes on PCBs due to its excellent electrical conductivity and ease of processing.

Solder Mask Materials:

Solder Resist Ink: This is used to coat the PCB surface, leaving openings only where soldering is required. It helps protect the copper traces and prevents solder bridges.

Silkscreen Printing Materials:

Legend Ink: This is used for printing component labels, reference designators, and other information on the PCB surface.

Surface Finish Materials:

HASL (Hot Air Solder Leveling): A layer of solder is applied to the exposed copper traces. It provides a simple and cost-effective surface finish.

ENIG (Electroless Nickel Immersion Gold): This provides a thin layer of nickel followed by a layer of gold, enhancing solderability and preventing oxidation.

Plating Materials:

Electrolytic Copper Plating: Used to build up the copper thickness on the conductive traces and pads.

Adhesive Materials:

Epoxy Resin: Used as an adhesive to laminate multiple layers of the PCB together.

Fill Materials:

Prepreg: Layers of fiberglass pre-impregnated with resin, used to bond copper layers together in multi-layer PCBs.

Reinforcement Materials:

Fiberglass Cloth: Embedded in epoxy resin to reinforce the board and provide mechanical strength.

The choice of materials depends on factors like the PCB's intended application, required mechanical and thermal properties, cost considerations, and more.

pcb board material types

The choice of PCB material is critical to the overall performance, reliability, and manufacturing process of the electronic device. Different materials offer various electrical, mechanical, thermal, and cost-related properties. Some common PCB material types include:

FR-4 (Flame Retardant 4): This is the most widely used PCB material. It's a glass-reinforced epoxy laminate material with flame-retardant properties. FR-4 is versatile, cost-effective, and suitable for various applications. It has good electrical insulation, mechanical strength, and dimensional stability.

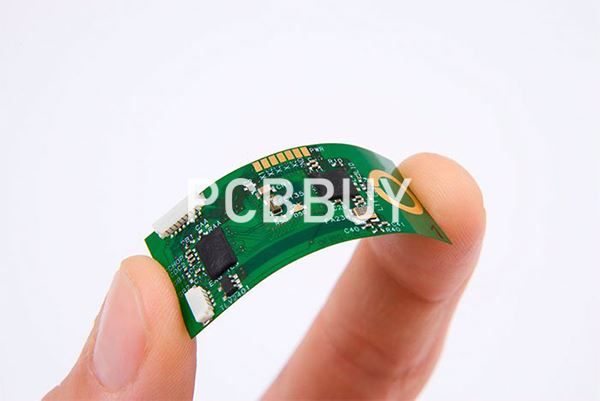

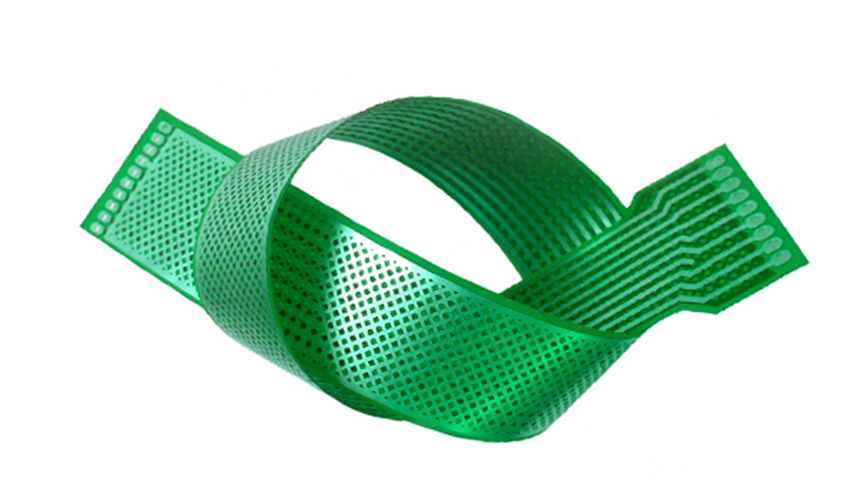

Flexible PCB Materials: For applications requiring flexibility, like wearable devices or curved electronics, flexible PCB materials are used. These materials are typically polyimide-based and can bend without breaking the circuit.

Metal Core PCB (MCPCB): MCPCBs have a metal core, usually aluminum, for enhanced thermal management. These are commonly used in applications with high-power components that generate significant heat.

Ceramic PCB Materials: Ceramic materials are used for applications demanding high thermal conductivity, excellent electrical insulation, and resistance to harsh environments. These materials are often used in power electronics and high-frequency applications.

Rigid-Flex PCB Materials: Rigid-flex PCBs combine both rigid and flexible materials to create circuits that can be folded or bent. These are useful in applications where both rigidity and flexibility are needed.

High-Frequency PCB Materials: For applications involving high-frequency signals, such as RF and microwave circuits, special materials with low dielectric constant and loss are used to minimize signal attenuation.

High-Temperature PCB Materials: In applications where the PCB will be exposed to elevated temperatures, such as in automotive or industrial settings, high-temperature materials with improved thermal stability are employed.

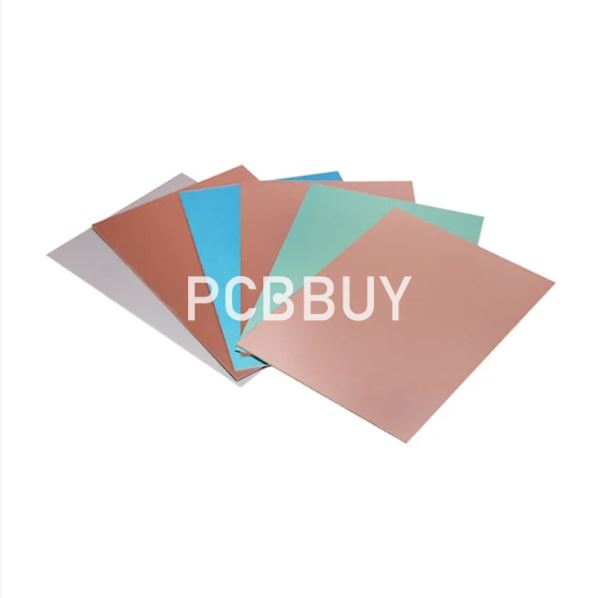

what is pcb substrate made of?

PCB substrates are typically made from various materials, with the most common substrate material being FR-4 (Flame Retardant-4), which is a type of fiberglass-reinforced epoxy laminate. FR-4 is widely used due to its good balance of mechanical strength, electrical insulation, and flame resistance. Here's a bit more detail about FR-4 and other substrate materials:

FR-4 (Flame Retardant-4): FR-4 is composed of a woven fiberglass cloth impregnated with epoxy resin. It is known for its stability, durability, and ease of manufacturing. The resin provides electrical insulation, while the fiberglass reinforcement offers mechanical strength.

Polyimide (PI): Polyimide-based substrates are known for their high-temperature resistance and flexibility. They are used in applications where the PCB needs to withstand extreme temperatures or needs to be flexible, such as in aerospace and wearable technology.

Rigid-Flex Materials: These materials combine rigid substrates (often FR-4) with flexible polyimide materials. This allows the PCB to have both rigid and flexible sections, making them suitable for complex designs in devices like smartphones and medical equipment.

Metal Core Materials: Some PCBs require effective heat dissipation. In such cases, metal core materials like aluminum are used as the substrate. These materials have a layer of thermally conductive dielectric material sandwiched between layers of copper and a metal core.

Ceramic Materials: In high-frequency applications or those requiring excellent thermal performance, ceramic substrates are used. They offer good electrical properties and high thermal conductivity.

The choice of substrate material depends on factors such as the intended application, operating environment, thermal requirements, flexibility needs, and cost considerations. Different materials offer varying degrees of performance and characteristics to suit different design requirements.

how to choose pcb material?

Choosing the right PCB material is a critical decision in the design and manufacturing process, as it can impact the performance, reliability, and cost of the final product. Here are some factors to consider when selecting PCB material:

Application Requirements:

Consider the intended use of the PCB. Is it for consumer electronics, automotive, aerospace, medical devices, or industrial applications?

Determine the operating temperature range, humidity, and other environmental conditions the PCB will be subjected to.

Electrical Performance:

Evaluate the required electrical properties such as dielectric constant, dissipation factor, and insulation resistance.

High-frequency applications may require materials with specific electrical characteristics to maintain signal integrity.

Mechanical Properties:

Determine the required mechanical strength, stiffness, and impact resistance.

If the PCB needs to be flexible or rigid-flex, choose materials that offer the required flexibility without sacrificing performance.

Thermal Management:

Consider the heat dissipation requirements of the PCB, especially if it involves power electronics or components generating significant heat.

Choose materials with appropriate thermal conductivity to manage heat effectively.

Cost Considerations:

Different materials have varying costs. Balancing the desired performance with the project's budget is crucial.

Manufacturability:

Ensure that the chosen material is compatible with the manufacturing processes, such as drilling, plating, and soldering.

Some materials may require specialized manufacturing techniques, which can affect production costs and lead times.

Availability and Supplier:

Choose materials that are readily available from reputable suppliers to ensure consistent quality.

Environmental Regulations:

Consider any regulatory requirements for the materials used, such as RoHS (Restriction of Hazardous Substances) compliance.

Design Complexity:

Complex PCB designs with multiple layers, fine traces, and tight spacing may require materials that offer better signal integrity and impedance control.

Reliability and Longevity:

Evaluate the material's long-term reliability, especially for applications requiring long lifespan and minimal maintenance.

Consultation with Experts:

If you're unsure about material selection, consult with experienced PCB designers, engineers, and material suppliers to get their recommendations based on your project's requirements.

In many cases, FR-4 is a suitable choice due to its versatility and widespread use. However, for specialized applications, it's important to work closely with your design team and material suppliers to ensure the selected material meets your project's specific needs.

what is the best pcb material?

There isn't a single "best" PCB material that suits all applications, as the choice of material depends on the specific requirements of your project. Different materials have their own strengths and weaknesses, and the best material for one application might not be the best for another. However, some commonly used and well-regarded PCB materials include:

FR-4: FR-4 is a widely used and cost-effective PCB material. It's a glass-reinforced epoxy laminate that offers good electrical insulation and mechanical properties. It's suitable for a broad range of applications and is the default choice for many consumer electronics.

High-Tg FR-4: High-Tg (glass transition temperature) FR-4 offers improved thermal stability, making it suitable for applications with higher operating temperatures or where heat dissipation is important.

Rogers and Taconic Materials: These high-frequency materials are used for RF and microwave applications. They offer excellent signal integrity and low dielectric loss, making them suitable for high-frequency designs.

Metal Core PCBs (MCPCBs): These PCBs have a metal core (usually aluminum) for enhanced heat dissipation. They're often used in LED lighting and power electronics where thermal management is crucial.

Flexible and Rigid-Flex Materials: For applications requiring flexibility, such as wearable devices or curved designs, materials like polyimide are used.

Polyimide (PI): Polyimide materials offer excellent thermal stability and are often used in high-temperature applications or those requiring flexibility.

PTFE-Based Materials: Polytetrafluoroethylene (PTFE) materials are known for their low dielectric constant and dissipation factor, making them suitable for high-frequency and high-speed designs.

Ceramic PCBs: Ceramic materials are used for their high thermal conductivity and excellent electrical properties. They're often used in power electronics and high-power RF applications.

The best material for your PCB depends on factors like the application's requirements, operating conditions, budget, and manufacturing capabilities. It's important to work closely with your design team and material suppliers to determine the material that best matches your project's needs. Conducting thorough research, consulting experts, and possibly prototyping with different materials can help you make an informed decision.
